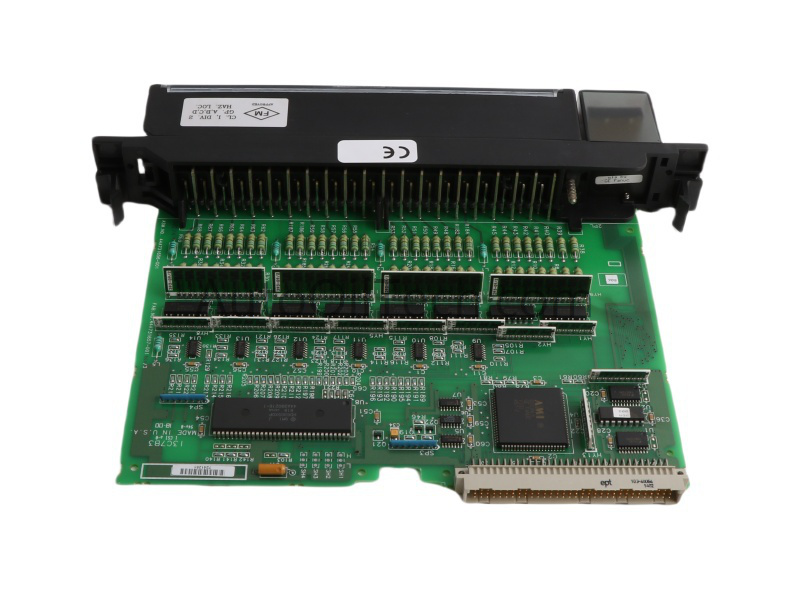

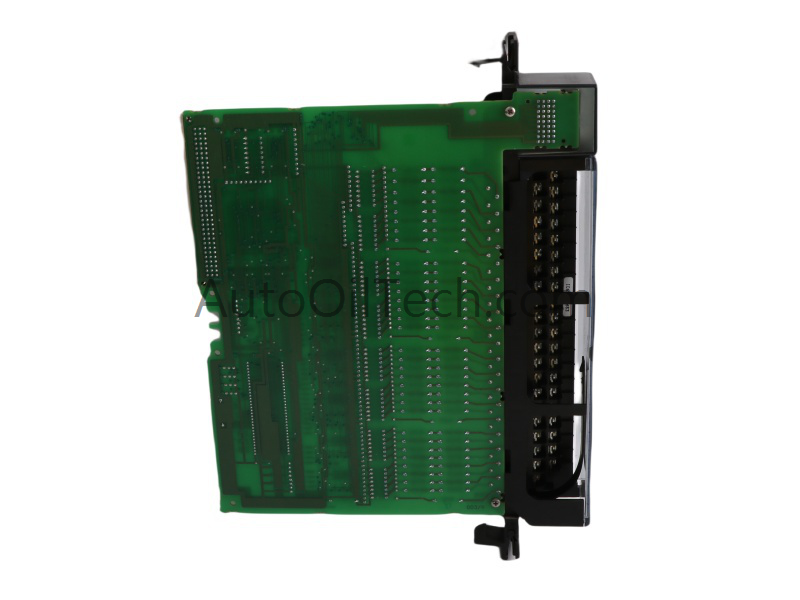

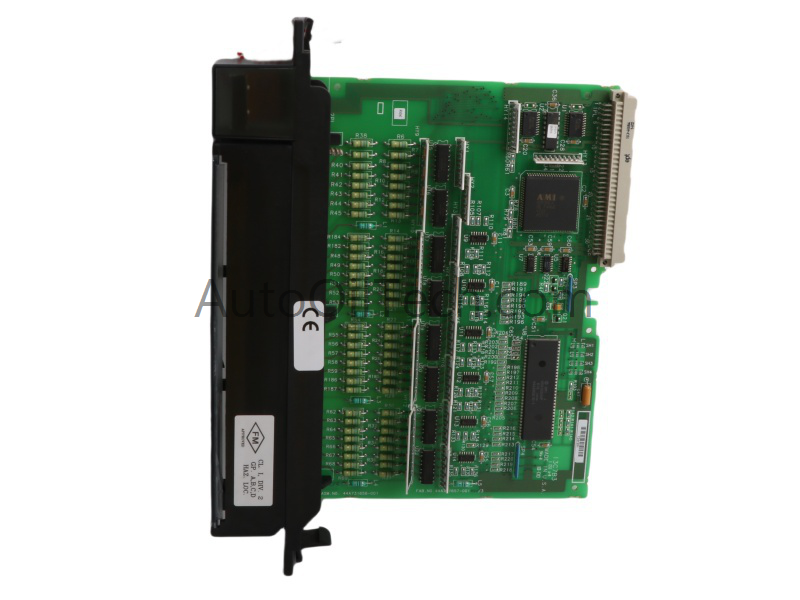

The IC697MDL653 is a 32-point digital input module designed for GE Fanuc’s Series 90-70 PLC systems. It supports both positive and negative logic wiring and is ideal for monitoring proximity switches, pushbuttons, and other discrete input devices.
Key Specifications
Parameter
Details
Model Number
IC697MDL653
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
Digital Input
Input Channels
32 (4 groups of 8)
Nominal Voltage
24 VDC
Voltage Range
-3 to +3 VDC
ON-State Voltage
13.5–30 VDC
OFF-State Voltage
0–5 VDC
ON-State Current
6–15 mA
OFF-State Current
0–2 mA (min 2 mA @ 5 V)
Input Impedance
2.6 kΩ
Delay Time
1 ms or 10 ms (software selectable)
Isolation (Channel–Backplane)
1500 VDC
Isolation (Group–Group)
500 VDC
Bus Current Draw
300 mA @ 5 VDC
LED Indicators
Input status per channel
Configuration
Software-based (no DIP switches)
Dimensions (W×H×D)
4 × 21.8 × 29.3 cm
Weight
0.62 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
32 discrete inputs with group isolation for enhanced safety.
Supports both logic polarities for flexible wiring.
