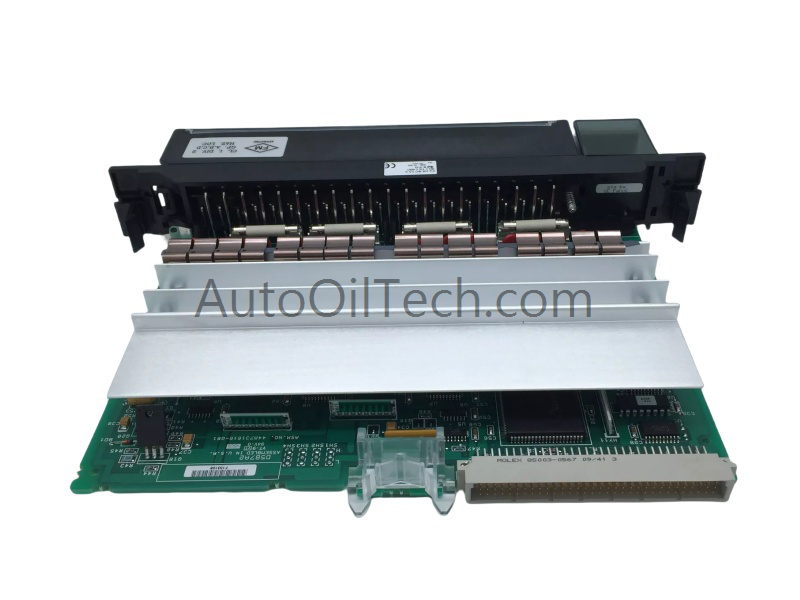

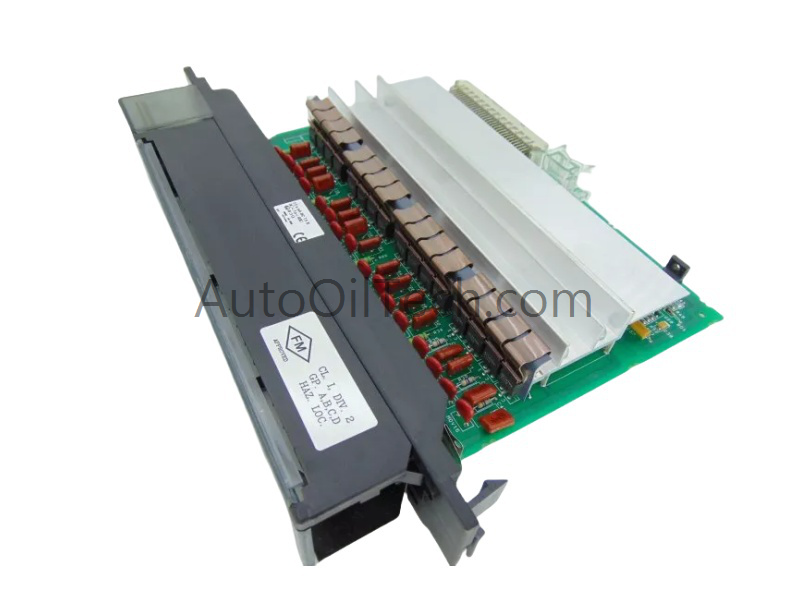

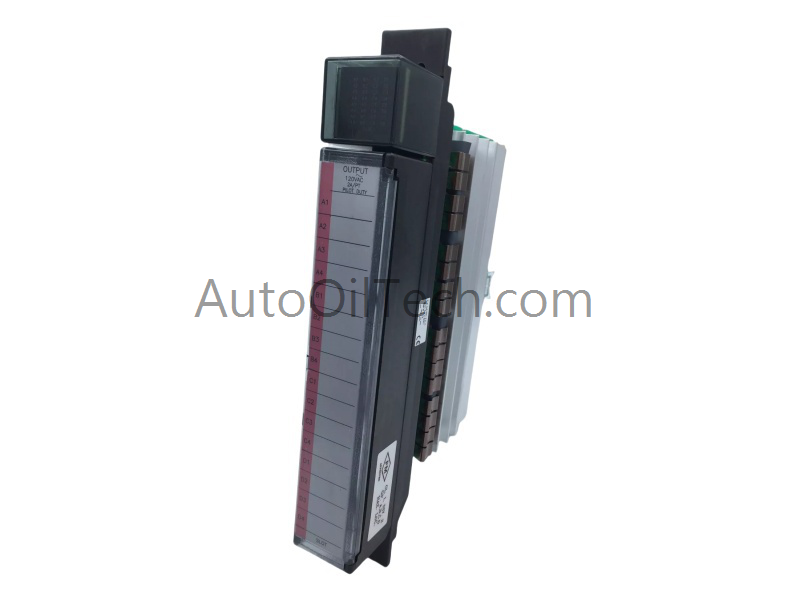

The GE Fanuc IC697MDL340 Discrete Output Module is a rugged and versatile output solution from the Series 90-70 PLC family. Designed for demanding industrial environments, it provides reliable high-power output control with built-in fuse protection and diagnostic indicators, ensuring safe and efficient operation.
Technical Specifications
Model Number:IC697MDL340
Manufacturer: GE (GE Intelligent Platforms / GE Fanuc)
Module Type: Discrete Output Module
Product Range: Series 90-70 PLC
System Compatibility: PLC architectures requiring robust AC output control
Operating Voltage: 120 V AC
Output Points: 16 points, divided into 4 isolated groups of 4
Current Capacity:
2 A per point
4 A per group
Fuse Protection: Each group fused separately with 10 A fuses
Indicators: LED indicators for point status and fuse condition
Configuration: Easy I/O reference setup without jumpers or DIP switches
Weight: 0.62 kg
Dimensions: 4 × 21.8 × 29.3 cm
Origin: USA
HS Code: 8537101190
Condition: Brand New
Lead Time: In Stock
MOQ: 1
Lifecycle Status: Active
Key Features
16 AC output points with isolated groups for flexible load management
High inrush current capacity, ideal for inductive and incandescent loads
Separate fuse protection per group for enhanced durability and safety
LED indicators simplify diagnostics and maintenance
Mechanical keying ensures correct installation and replacement
Streamlined configuration without jumpers or DIP switches
Compatible with motor starters, solenoids, indicators, and other industrial devices
Application Scenarios
Industrial automation requiring reliable AC output control
Manufacturing plants with high inrush current loads
Power generation and chemical processing facilities
PLC-based control systems needing robust and safe output modules
FAQ
Q: What type of loads can the IC697MDL340 handle? A: It is suitable for inductive and incandescent loads, including motor starters, solenoids, and indicators.
Q: How is safety ensured in this module? A: Each output group is fused separately with 10 A fuses, and LED indicators provide real-time status monitoring.
