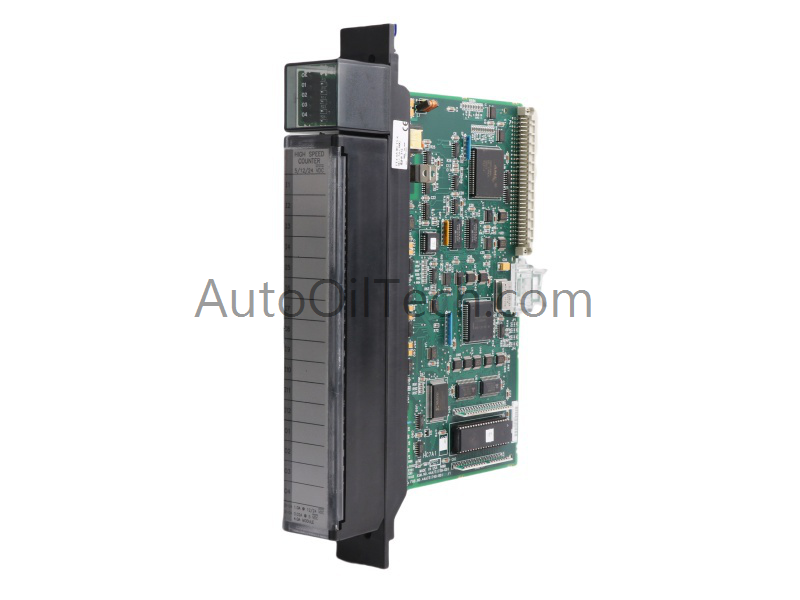

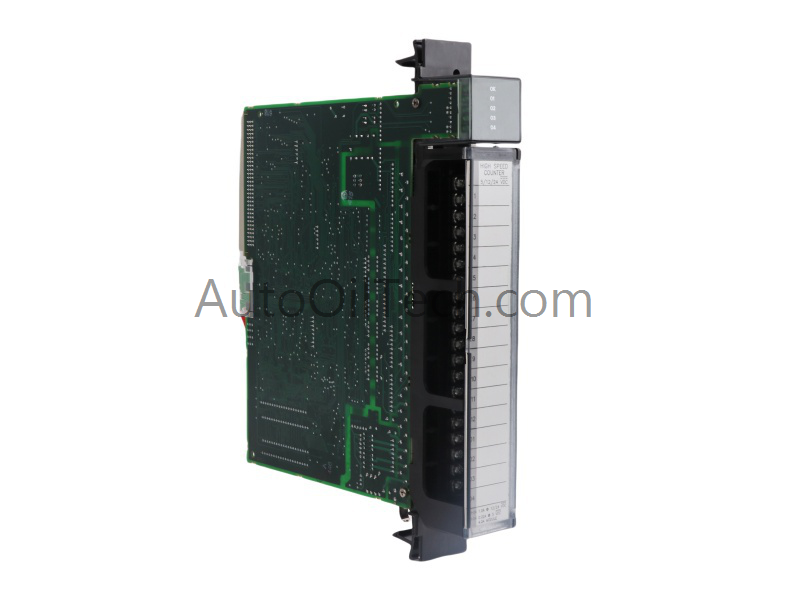

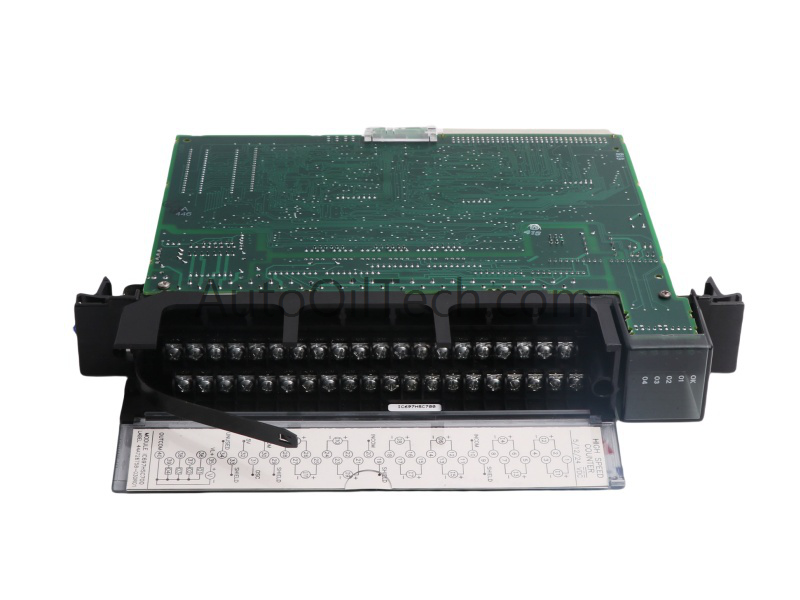

The IC697HSC700 is a high-speed counter (HSC) module developed by GE Fanuc for Series 90-70 PLC systems. It supports pulse frequencies up to 800 kHz and is ideal for motion control, flowmetering, and high-speed signal processing.
Key Specifications
Parameter
Details
Model Number
IC697HSC700
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
High-Speed Counter (HSC)
Input Channels
12 (single-ended or differential)
Output Channels
4 (positive logic, 20 mA @ 10–30 VDC)
Input Voltage Range
5 VDC / 10–30 VDC
Max Frequency
200 kHz (Up/Down Quad) / 800 kHz (Quad B)
Isolation Rating
1500 V for 1 s / 30 VAC/VDC steady state
Backplane Current
1 A + 10 mA per active output
LED Indicators
Module and output diagnostics
Programming Software
Logicmaster 90-70, VersaPro, PME
Communication Ports
SNP, Ethernet TCP/IP
Dimensions (W×H×D)
4 × 21.8 × 29.3 cm
Weight
0.62 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Supports high-speed pulse counting up to 800 kHz.
Interfaces with both 5 VDC and 10–30 VDC signals.
Four configurable outputs for control signaling.
LED indicators simplify diagnostics and monitoring.
Compatible with multiple GE Fanuc programming tools.
Applications & Compatibility
The IC697HSC700 is ideal for turbine flowmeter control, velocity measurement, material handling, and motion tracking. It integrates with Series 90-70 CPUs and supports both Windows and MS-DOS environments, making it suitable for legacy and modern industrial automation systems.
