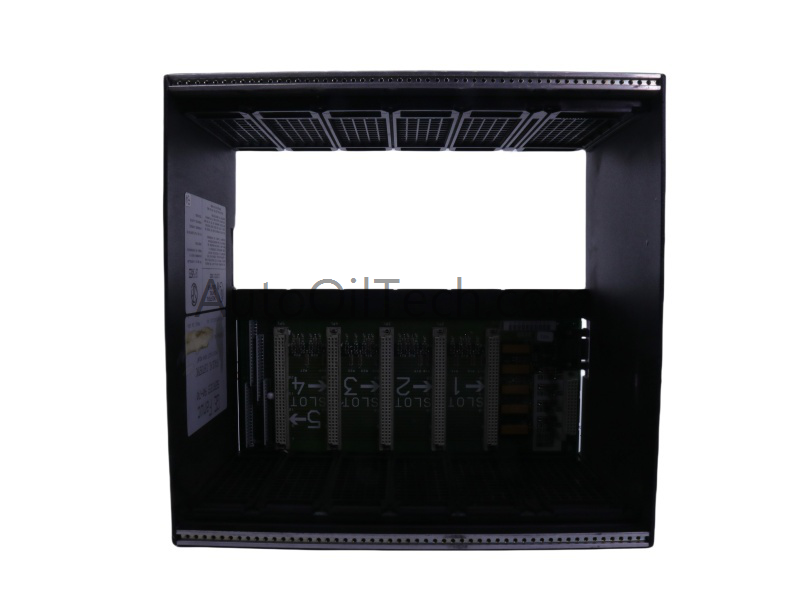

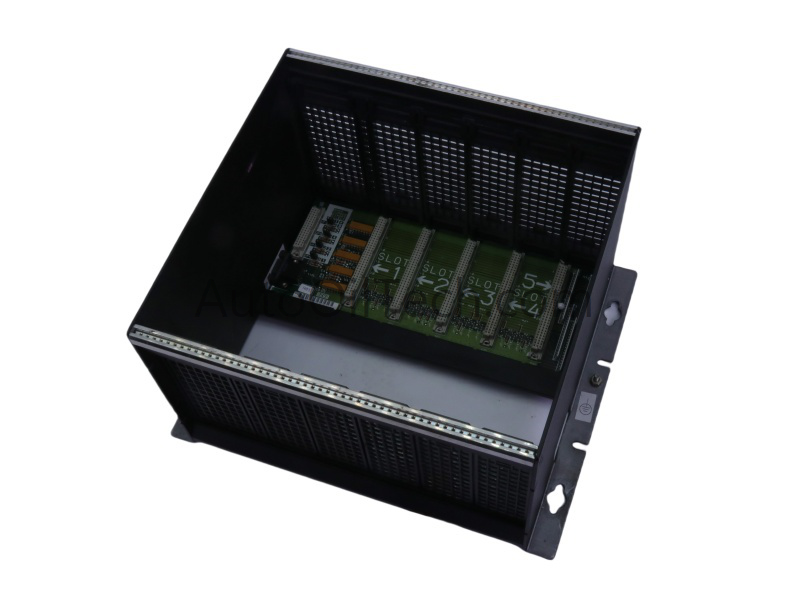

The IC697CHS750 is a rear-mounted I/O rack designed by GE Fanuc for the Series 90-70 PLC system. It provides five module slots and supports individual power supplies per slot, enabling flexible and scalable control system configurations.
Key Specifications
Parameter
Details
Model Number
IC697CHS750
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
I/O Rack (Rear Mount)
Slot Count
5
Mounting Style
Rear Mount
Input Voltage
5 V DC
Current Rating
20 A
Cooling Method
Convection airflow
Dimensions (W×H×D)
12.6 × 11.15 × 7.5 in (approx. 32 × 28.3 × 19 cm)
Weight
~2 kg
Terminal Block
Hinged door access
Cable Routing
Bottom entry
Grounding
Optional noise-reduction measures
Accessories
J2 jumper kit (optional)
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Supports five modules with individual power supplies.
Rear-mount design simplifies installation in tight spaces.
Hinged terminal block door allows easy cable access.
Terminal strap secures connections during operation.
