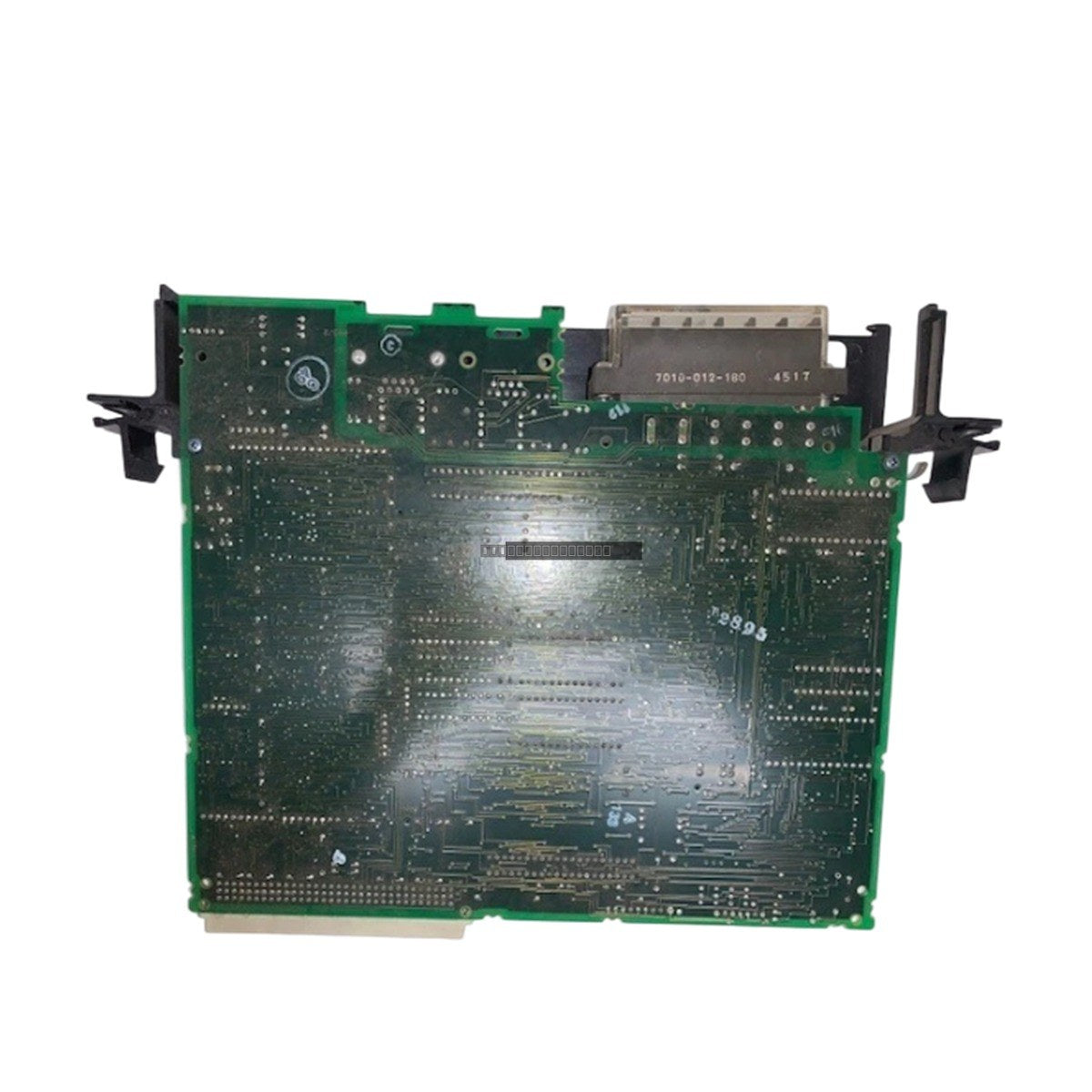

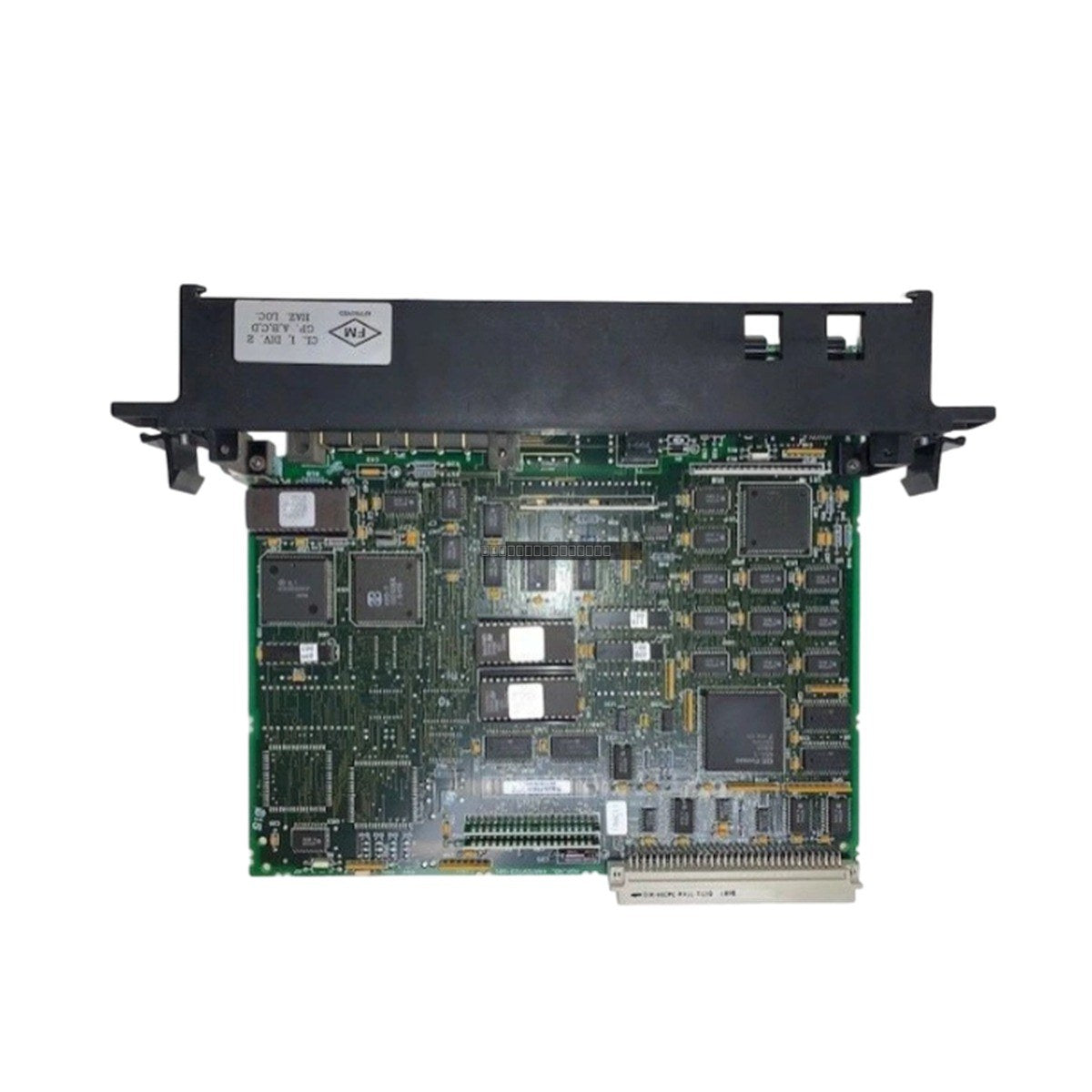

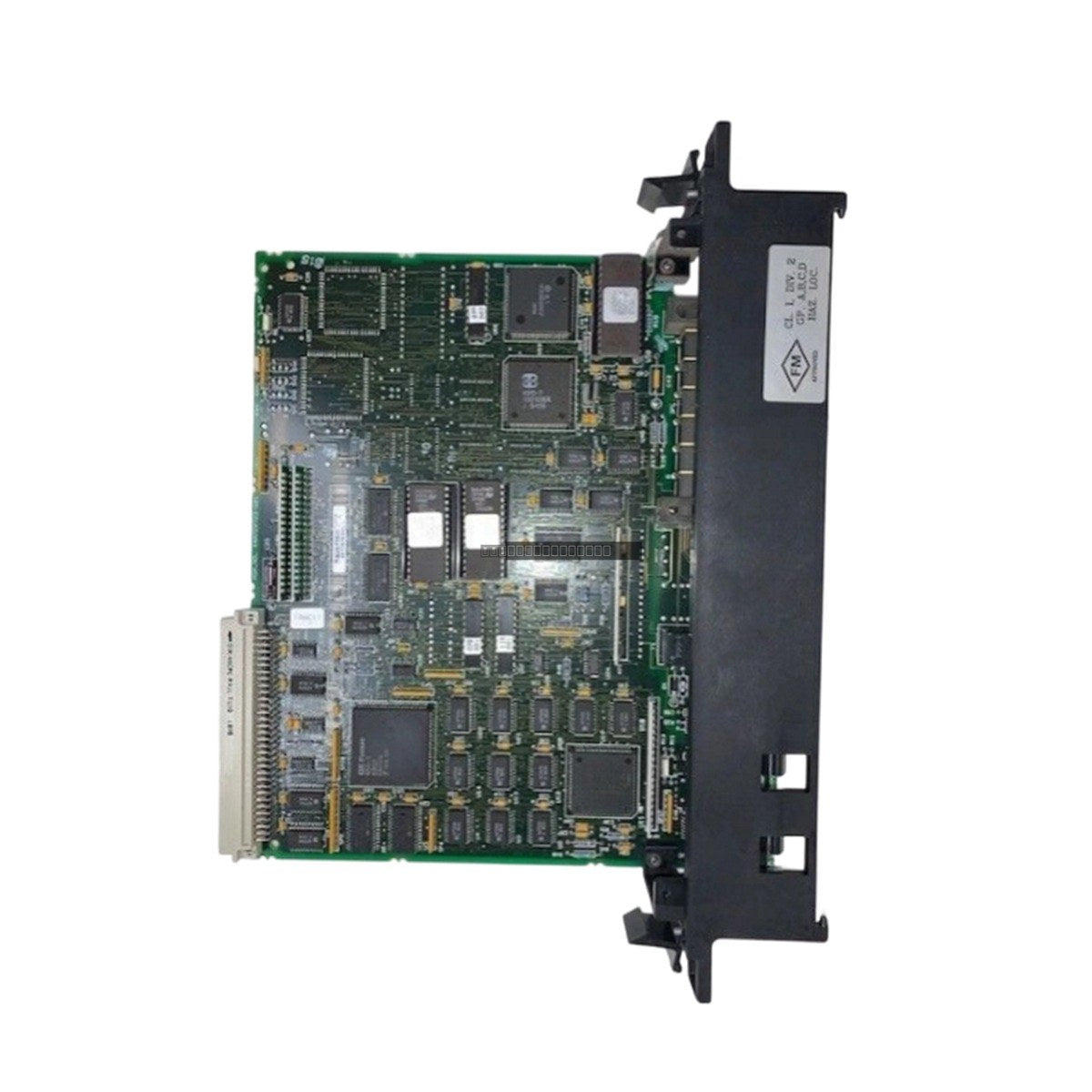

GE Fanuc IC697BEM731P Genius Bus Controller Module

Description

The GE Fanuc IC697BEM731P is a dedicated Genius Bus Controller Module (BCM) designed for integration within the Series 90-70 PLC platform. This module functions as a high-speed communication bridge, linking the PLC backplane to the Genius I/O network. It is engineered to support complex industrial automation tasks, providing reliable data exchange and peer-to-peer communication capabilities in environments such as chemical processing, power generation, and large-scale manufacturing.

Features

• Network Capacity: Supports up to 30 drops per channel, allowing for scalable I/O expansion across the Genius bus.
• Asynchronous Scanning: Optimizes CPU performance by managing I/O data transfers independently once per scan cycle.
• Diagnostic Interface: Equipped with an integrated Handheld Monitor (HHM) serial port for direct system diagnostics, status monitoring, and fault troubleshooting.
• High Availability: Fully compatible with redundant CPU, cable, and I/O block configurations to maintain system integrity in mission-critical applications.
• Versatile Communication: Facilitates directed communication via CPU service requests and supports global data transfers for LAN integration with other bus controllers and PCIMs.

Installation Guidelines

• Safety First: Always disconnect power from the Series 90-70 rack before inserting or removing the module to prevent electrical damage or system faults.
• Slot Placement: The module occupies a single slot in the Series 90-70 chassis. Ensure the module is fully seated and the locking levers are secured.
• Grounding: Ensure the rack is properly grounded to mitigate EMI/RFI interference, which is critical for stable Genius bus communication.
• Cable Routing: Use shielded communication cables for the Genius bus. Route signal cables away from high-voltage power lines to prevent signal degradation.
• Configuration: Initial setup requires compatible MS-DOS or Windows-based programming software to define bus parameters and node addresses.

Technical Specifications

FAQ

What is the primary function of the IC697BEM731P?

This module acts as the interface between the Series 90-70 PLC and the Genius I/O network, enabling the PLC to control and monitor remote I/O blocks across the plant floor.

Does this module support redundant systems?

Yes, the IC697BEM731P is designed to support redundant configurations, including redundant cables, blocks, and CPUs, to ensure continuous operation in critical control loops.

How do I perform diagnostics on this module?

The module features a dedicated HHM (Handheld Monitor) serial port, which allows technicians to connect a diagnostic device for real-time status updates and fault analysis.
