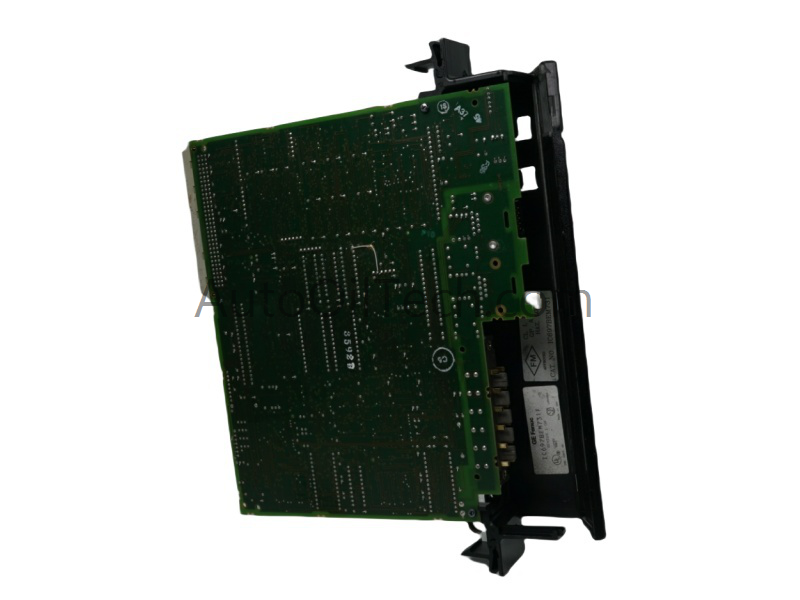

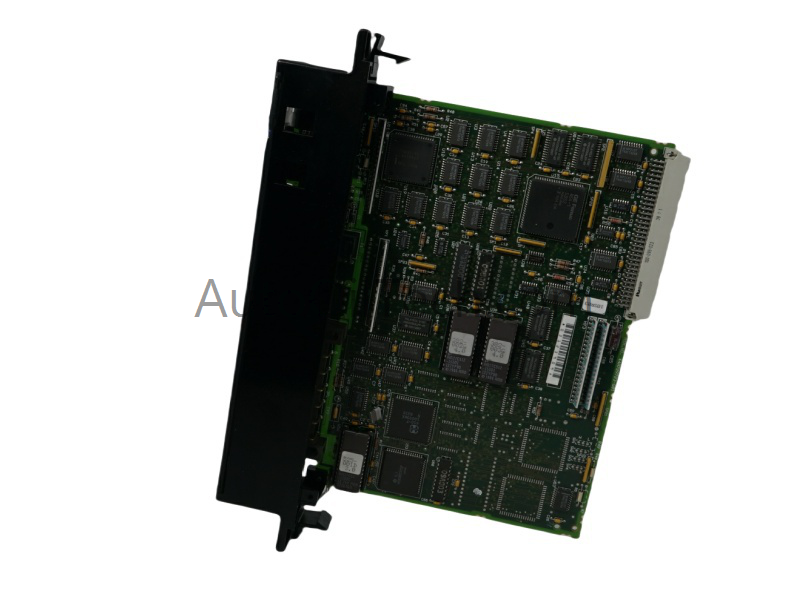

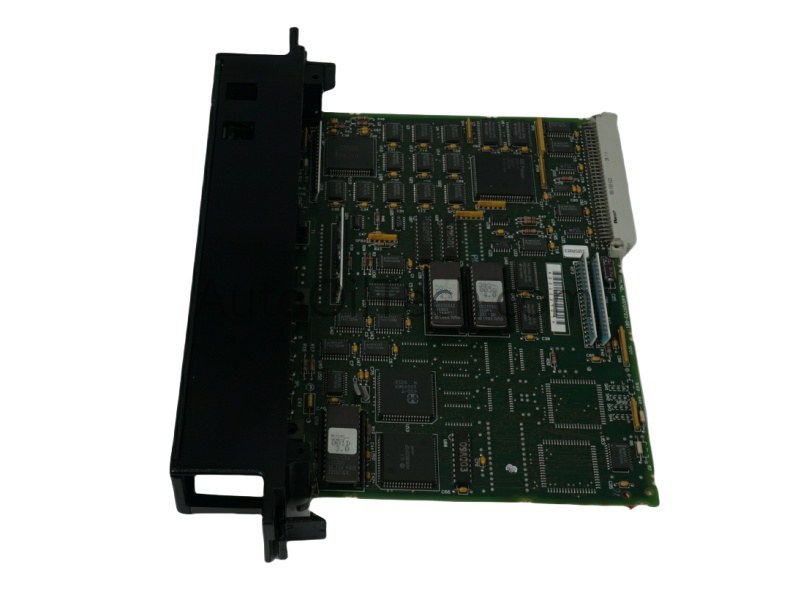

The IC697BEM731F is a Genius Bus Controller module designed for GE Fanuc’s Series 90-70 PLC systems. It enables high-speed communication between up to 30 devices on a Genius I/O bus using token-passing protocol. With flexible baud rate settings and extended cable distances, this module is ideal for distributed control architectures.
Key Specifications
Parameter
Details
Model Number
IC697BEM731F
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
Genius Bus Controller
Communication Channel
1 Genius I/O channel
HHM Port
Yes
Max Devices Supported
30
Default Bus Address
31 (configurable)
Baud Rate Options
38.4, 76.8, 153.6 Kbaud
Max Cable Distance
7500 ft @ 38.4 Kbaud
Cable Type
Belden 9182
Terminators
IC660BLM506 (150 Ω), IC660BLM508 (75 Ω)
Configuration Software
MS-DOS or Windows-based
Diagnostics
Built-in with LED indicators
Global Data Support
Yes
Alarm Integration
Yes
Dimensions (W×H×D)
4 × 22 × 29.3 cm
Weight
0.44 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Communicates with up to 30 Genius devices via token-passing protocol
HHM port allows easy configuration and diagnostics
Supports multiple baud rates and extended cable lengths
Built-in LED indicators for operational and fault status
Integrates with PLC alarm systems and global data exchange
