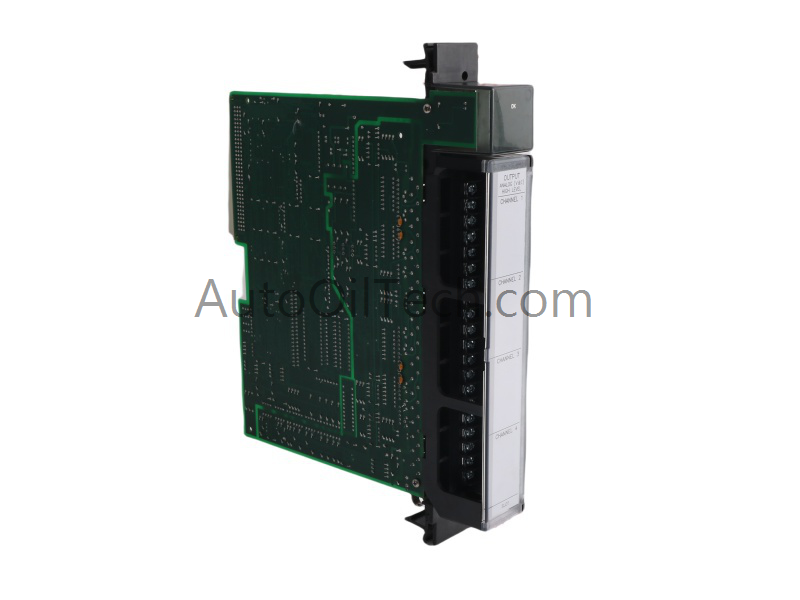

  • GE IC697ALG320

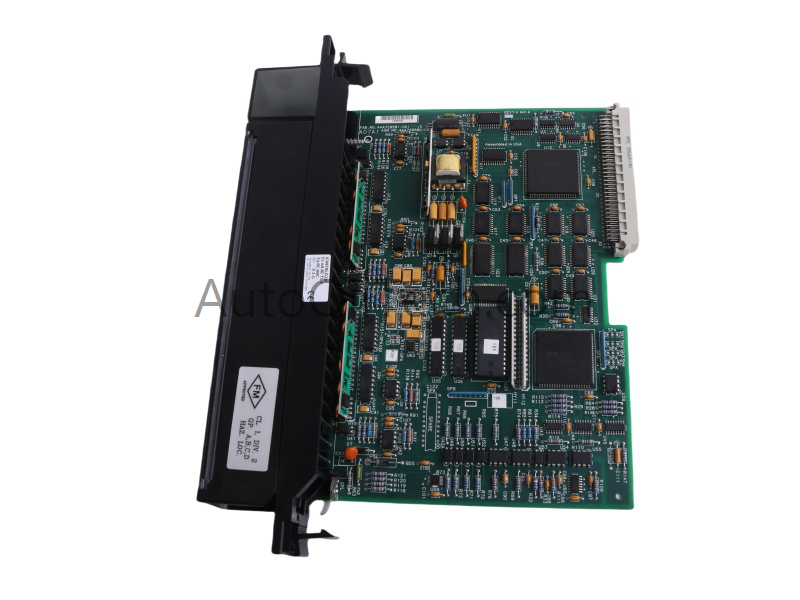

  • GE IC697ALG320

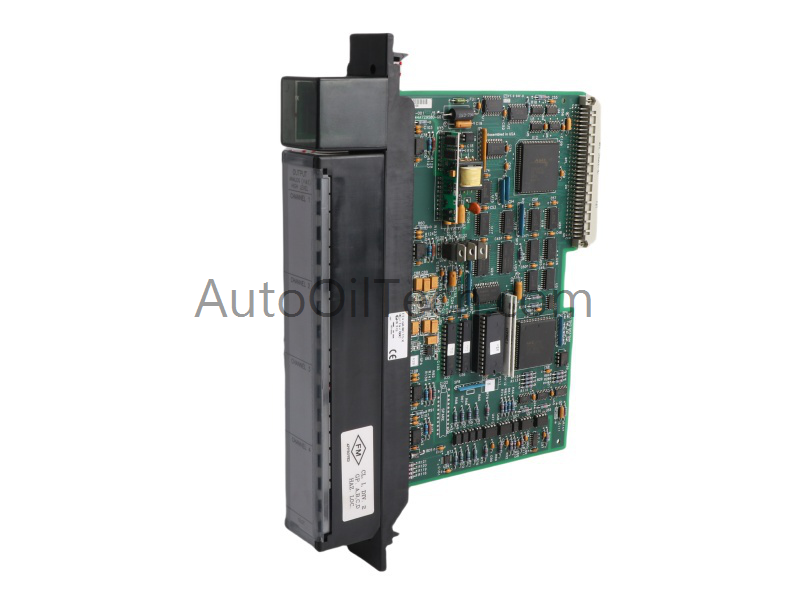

  • GE IC697ALG320

Sale

GE Fanuc IC697ALG320 High-level Analog Output Module

In stock!
  • Part Number: IC697ALG320
  • Brand: General Electric
  • Type: Analog Output Module
  • Dimensions: 4x22x29.3cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Controller Design
  • Modular
Tags: Analog Output Module , PLC

Product Description

Overview

The IC697ALG320 is a high-resolution 4-channel analog output module designed for GE Fanuc’s Series 90-70 PLC systems. Each channel is independently configurable for either voltage or current output, making it ideal for precise analog control in industrial automation.

Key Specifications

Parameter Details
Model Number IC697ALG320
Manufacturer GE Fanuc
Product Series Series 90-70
Module Type Analog Output
Output Channels 4 (individually configurable)
Output Ranges ±10 VDC, 0–20 mA, 4–20 mA
DAC Resolution 16-bit
Voltage Resolution 312.5 µV/LSB
Current Resolution 0.5 µA/LSB
Max Conversion Rate 2.0 ms (all channels)
Load Support (Voltage) 0–2000 Ω resistive, 0–1000 pF capacitive
Load Support (Current) 0–700 Ω resistive, 1.0 µF capacitive, 250 mH inductive
Accuracy Drift 25 PPM/°C (voltage), 50 PPM/°C (current)
Diagnostics Overrange, underrange, open-wire, module health
Calibration Factory calibrated, EEPROM stored
Power Requirements 1.66 A @ 5 VDC, 150 mA user supply
Max Modules per Rack 7 (CPU rack), 8 (expansion rack)
Dimensions (W×H×D) 4 × 22 × 29.3 cm
Weight 0.66 kg
Product Origin USA
HS Code 8537101190
Condition Brand New
Availability In Stock
Discontinued Status Active
Minimum Order Quantity 1


Features

  • 4 high-resolution analog outputs with independent voltage/current configuration

  • 16-bit DAC ensures precise signal generation

  • EEPROM-based calibration for long-term accuracy

  • Built-in diagnostics for fault detection and system reliability

  • Supports up to 252 output channels across multiple racks

  • Fast 2 ms update rate for all channels combined
