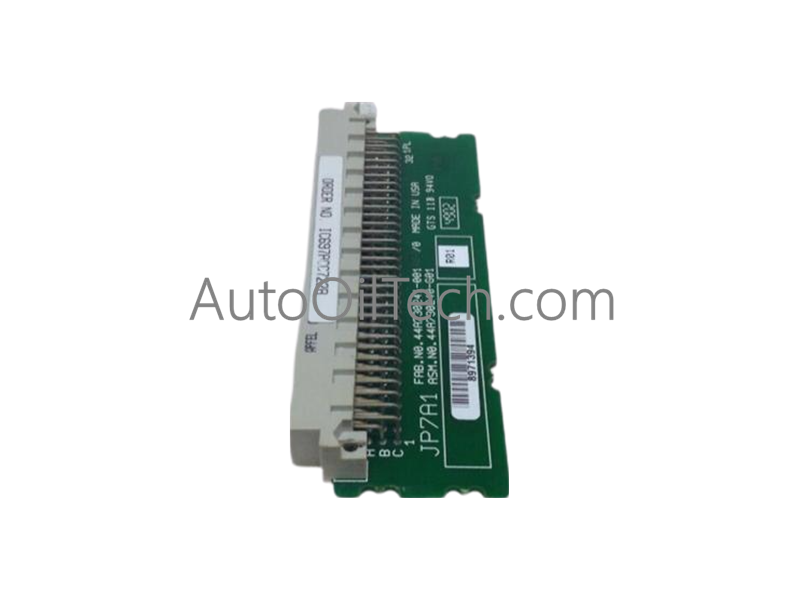

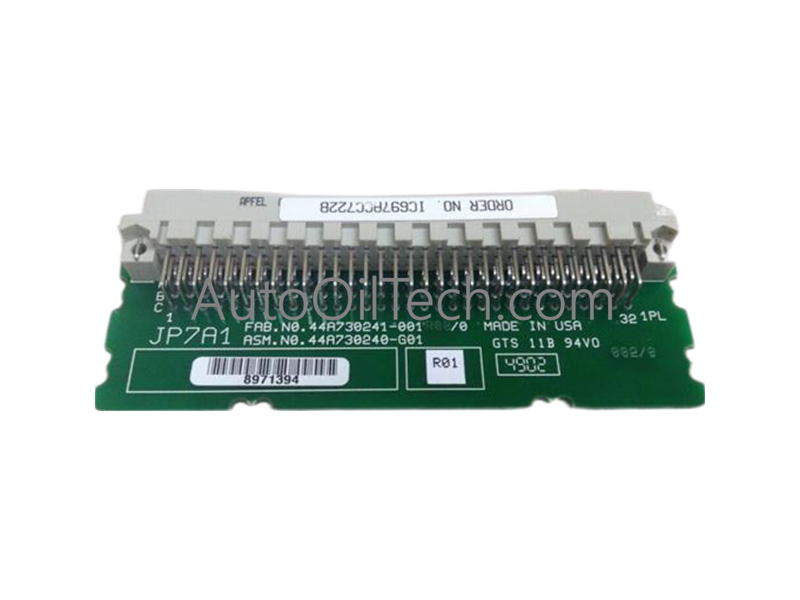

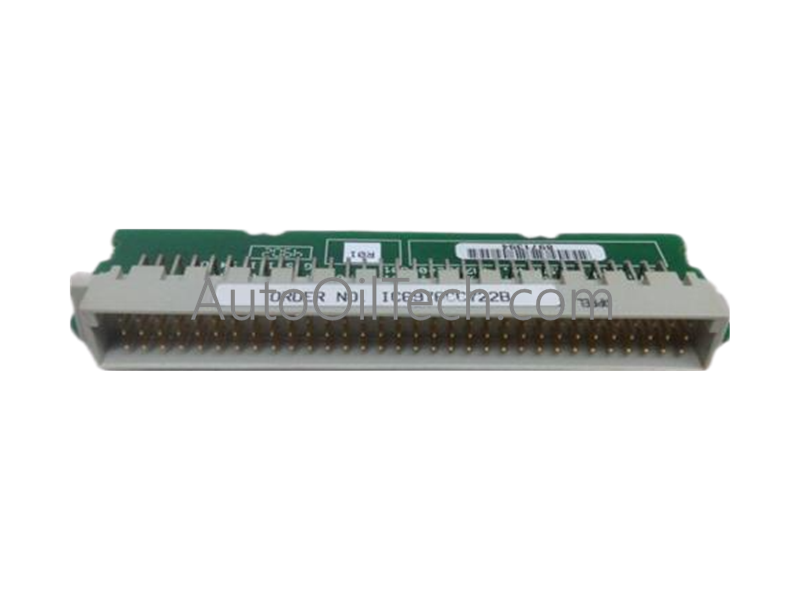

The GE Fanuc IC697ACC722 Terminal Board (VME Backplane Connector) is designed for Series 90‑70 PLC racks, providing communication and power distribution across modules. It ensures reliable connectivity in high‑performance industrial environments and supports optional cooling assemblies for enhanced thermal management.
Specifications
Manufacturer: GE Fanuc
Model Number: IC697ACC722
Type: VME Backplane Connector / Terminal Board
Function: Provides signal and power distribution across rack modules
Interrupt Jumpers: Six configurable jumpers for flexible interrupt management
Compatibility: GE Fanuc Series 90‑70 PLC racks
Optional Cooling: Supports IC697ACC721 rack fan assembly for forced‑air cooling
Weight: Approx. 1.0 kg
Operating Range: –20 °C to +60 °C
Features
Reliable Connectivity: Ensures stable communication between modules in VME racks
Interrupt Flexibility: Six jumpers allow tailored interrupt configuration
Cooling Support: Optional rack fan assembly with three parallel‑wired ball‑bearing fans for enhanced airflow
Durable Construction: Designed for continuous duty in industrial environments
Noise Reduction: Fan assembly engineered for reduced operational noise and extended service life
Heavy‑Duty Options: Side‑mount plates available for racks in high‑heat or vibration environments
