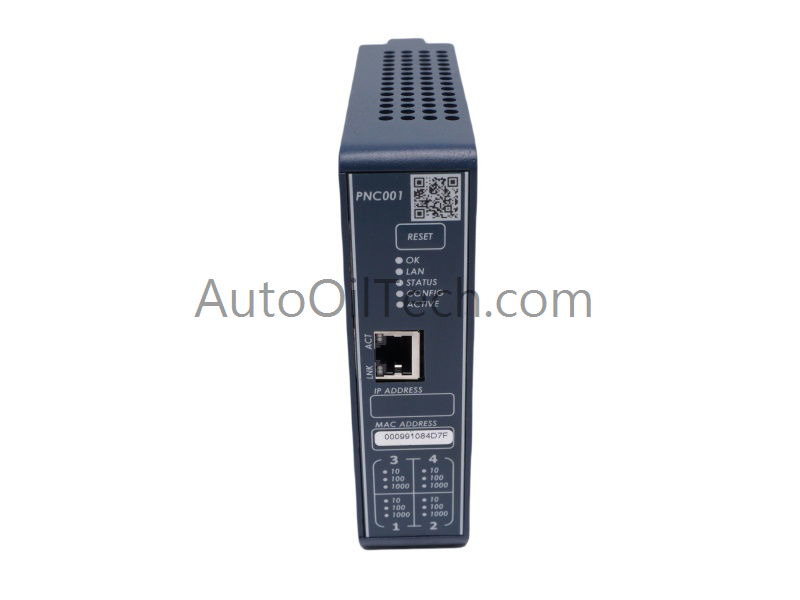

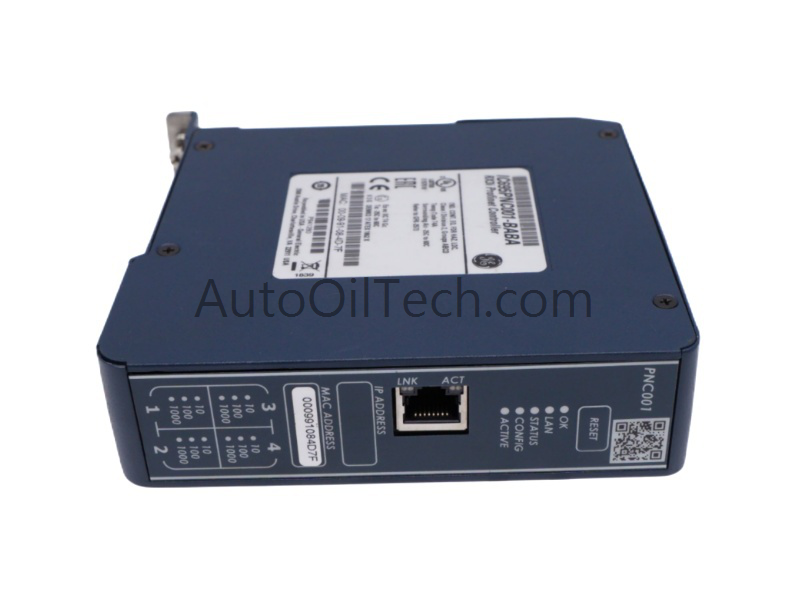

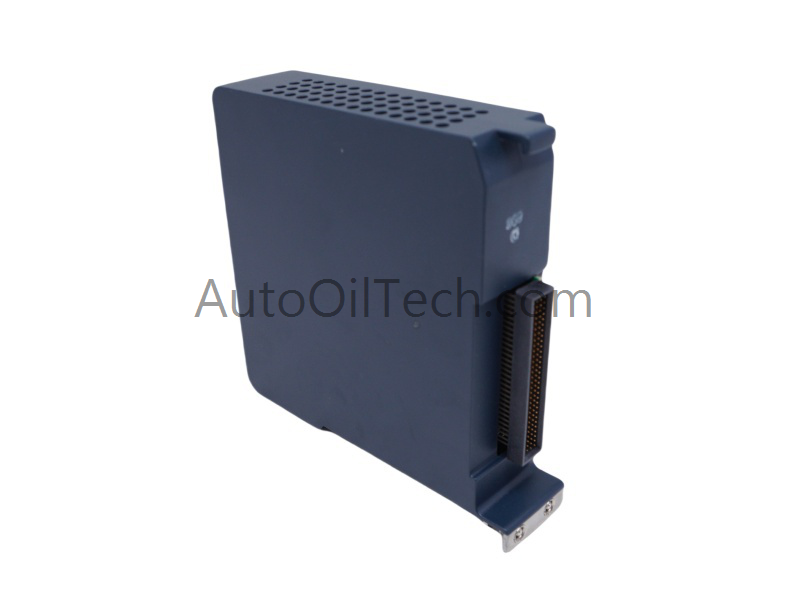

The IC695PNC001 is a PROFINET controller module engineered by GE Fanuc for PACSystems™ RX3i PLCs. It enables high-speed, deterministic Ethernet communication across industrial networks and supports advanced topologies including ring, star, and daisy-chain.
Key Specifications
Parameter
Details
Model Number
IC695PNC001
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
PROFINET Controller
Communication Ports
2 × RJ-45, 2 × SFP (optional)
Max I/O Devices
64 per controller / 128 total
Network Topologies
Ring, Star, Daisy-chain
Data Update Rate
1 ms to 512 ms
Power Consumption
0.5 A (no SFP) / 1.2 A (2 SFP)
Max Current Draw
1.5 A @ 5.5 VDC
Dimensions (W×H×D)
4 × 21.7 × 29.1 cm
Weight
0.64 kg
Operating Temp
0–60 °C
USB Interface
Micro USB for CLI diagnostics
Hot Swap Capability
Yes (RIUP supported)
Firmware Upgrade
WinLoader software
Manual Reset
Restart button
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Supports up to four modules per RX3i main rack.
Dual RJ-45 and SFP slots for flexible Ethernet setups.
Single IP address simplifies multi-port configuration.
