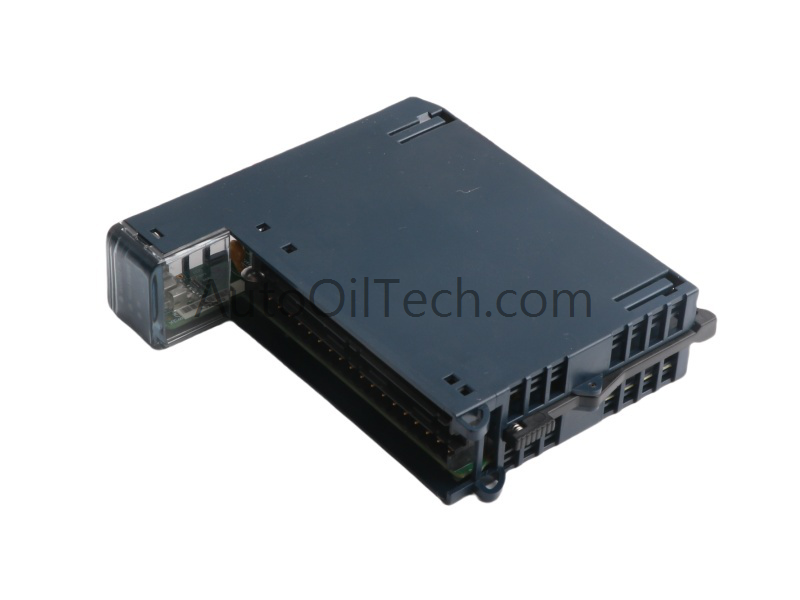

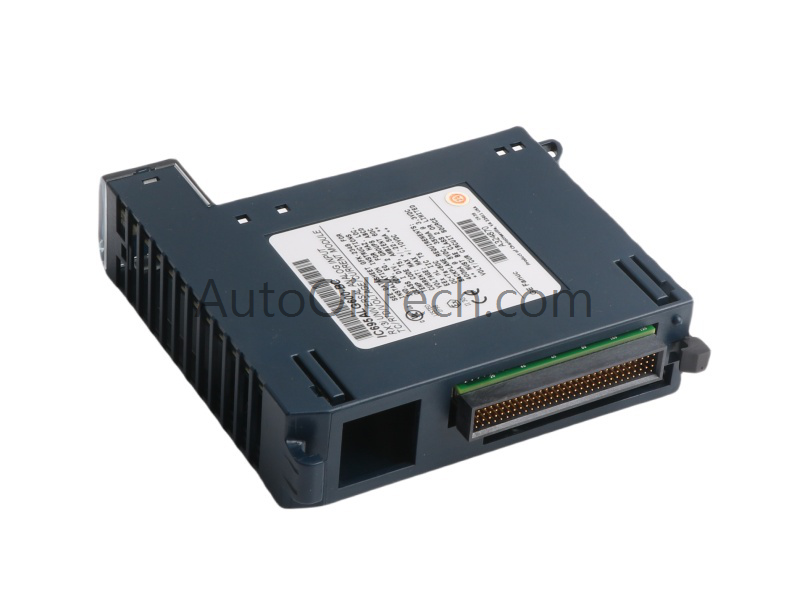

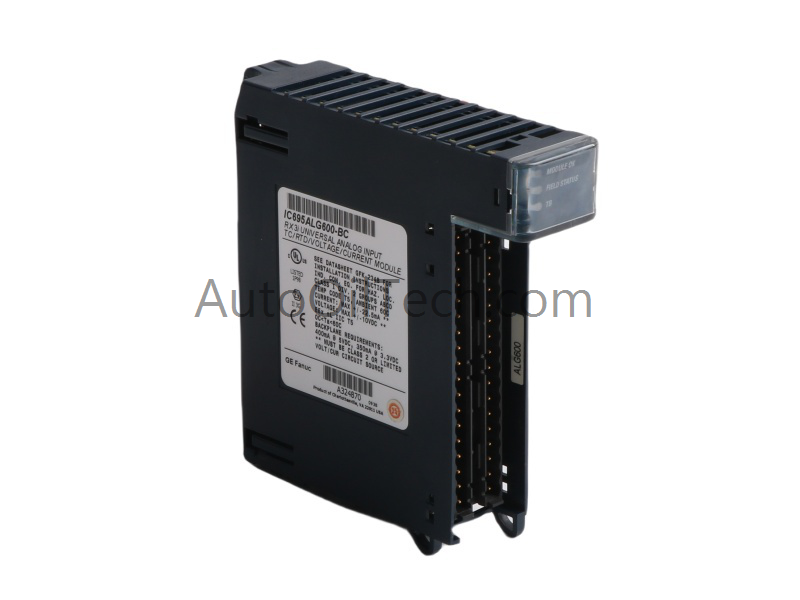

The IC695ALG600 is a universal analog input module designed for GE Fanuc’s PACSystems™ RX3i platform. It supports a wide range of input types including voltage, current, resistance, and temperature sensors such as RTDs and thermocouples.
Key Specifications
Parameter
Details
Model Number
IC695ALG600
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
Analog Input
Input Channels
8 (2 groups of 4)
Supported Signals
Voltage, Current, RTD, Thermocouple, Resistance
Voltage Range
0–10 V, 1–5 V, ±10 V
Current Range
0–20 mA, 4–20 mA, ±20 mA
Power Dissipation
Max 5.4 W
LED Indicators
Module Status, Field Status, Terminal Block
Compatible Terminal Blocks
IC694TBB032, IC694TBB132
Operating Temp
0–60 °C
Dimensions (W×H×D)
3.5 × 13.5 × 13.5 cm
Weight
0.24 kg
Software Support
PME v5.0 SP1A or later
Firmware Requirement
v2.80 or higher
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Supports multiple analog signal types for flexible input processing.
Two configurable channel groups enhance application versatility.
LED indicators simplify diagnostics and system monitoring.
Flash memory enables future firmware upgrades.
Compatible with PME software and RX3i backplanes.
Applications & Compatibility
The IC695ALG600 is ideal for industrial automation tasks requiring precise analog input handling. It integrates with PACSystems RX3i and supports distributed sensing across voltage, current, and temperature domains. Its compatibility with RTDs and thermocouples makes it suitable for process control, environmental monitoring, and equipment diagnostics.
