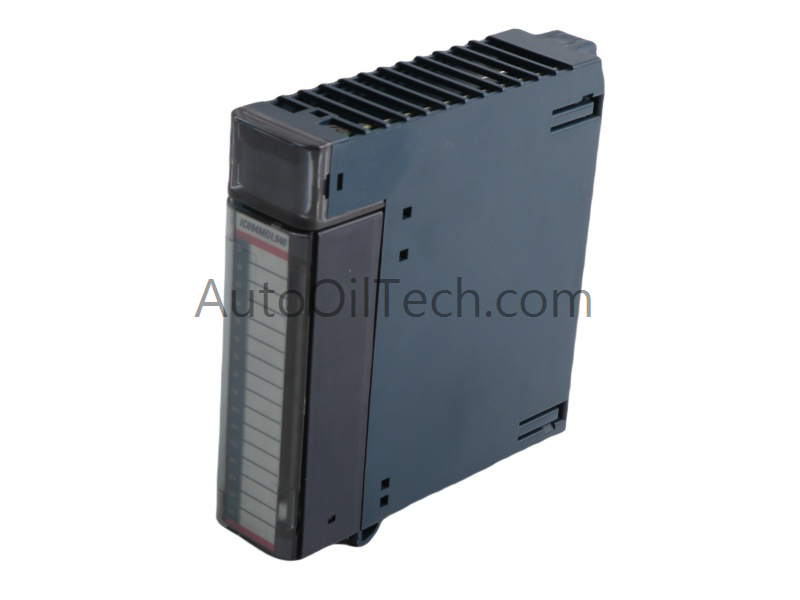

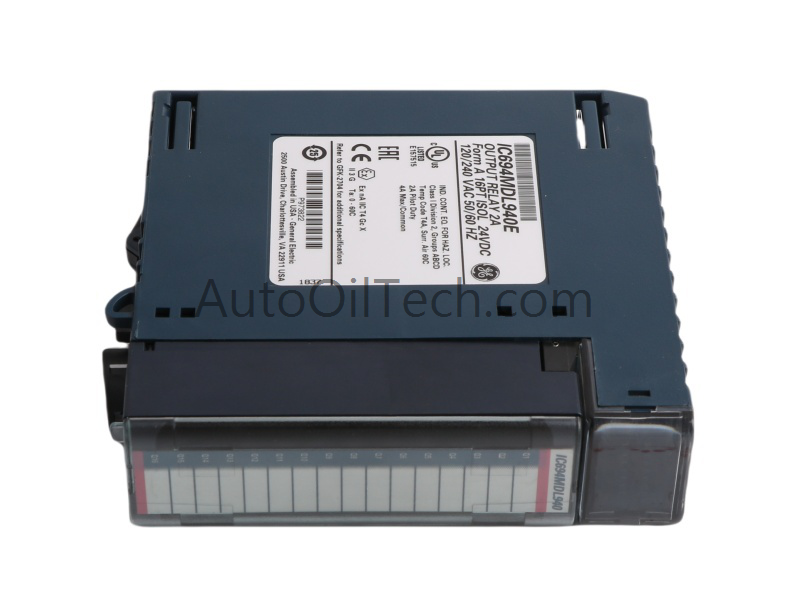

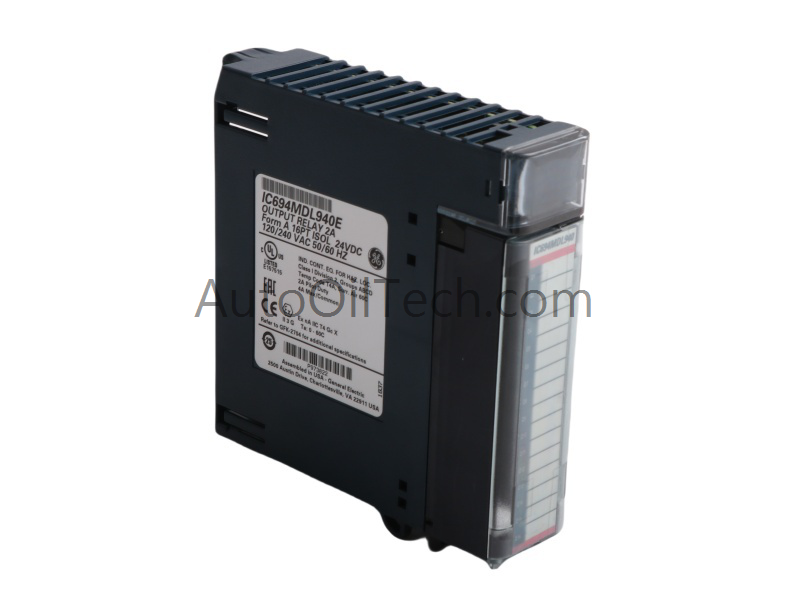

The IC694MDL940 is a 16-point relay output module designed for GE Fanuc’s PACSystems™ RX3i platform. It features four isolated groups of four Form A (normally open) relay contacts, ideal for controlling solenoids, motor starters, and pilot lamps.
Key Specifications
Parameter
Details
Model Number
IC694MDL940
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
Relay Output
Output Channels
16 (4 groups of 4)
Contact Type
Form A (N.O.)
Rated Voltage
24 VDC relay bus
Max Load per Channel
2 A
Max Load per Group
4 A
Min Load
10 mA
Inrush Current
5 A
Response Time
15 ms
Backplane Current Draw
135 mA + 7 mA @ 5 VDC
Isolation (Field–Backplane)
250 VAC continuous / 1500 VAC for 1 min
Isolation (Channel–Channel)
250 VAC continuous
LED Indicators
16 (one per output channel)
Fusing
External fuses required
Dimensions (W×H×D)
13 × 6.8 × 13.1 cm
Weight
0.52 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Four isolated output groups with Form A relay contacts.
16 status LEDs for real-time diagnostics.
Handles high inrush currents and inductive loads.
Robust isolation ensures safe operation in industrial environments.
