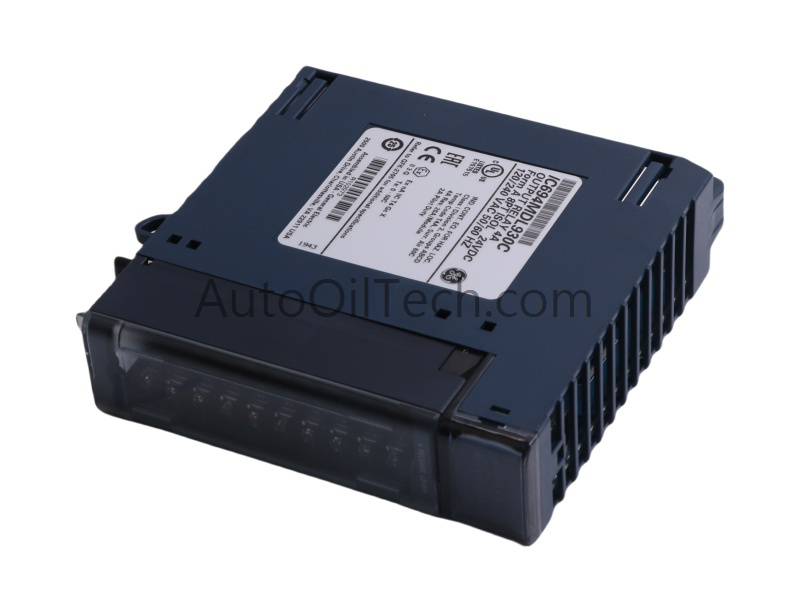

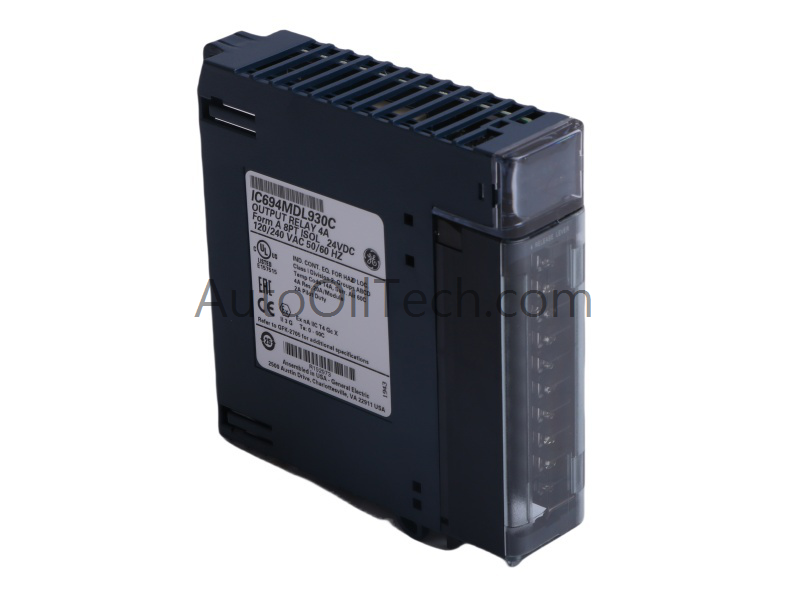

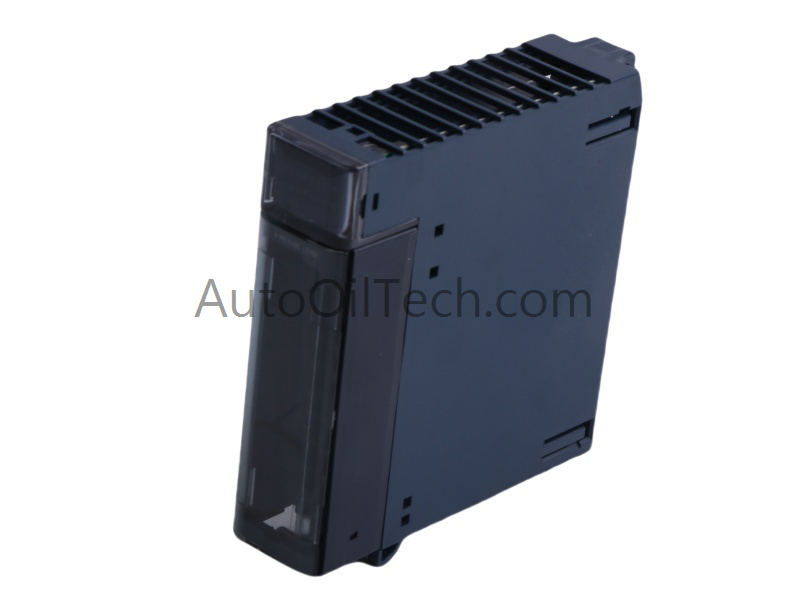

The IC694MDL930 is an 8-channel relay output module designed for GE Fanuc’s PACSystems™ RX3i platform. Each channel features a Form A (Normally Open) contact with individual isolation and separate commons, allowing mixed-voltage operation across outputs. It is ideal for controlling solenoids, motor starters, and pilot lamps in industrial automation systems.
Key Specifications
Parameter
Details
Model Number
IC694MDL930
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
Relay Output
Output Channels
8 (individually isolated)
Contact Type
Form A (Normally Open)
Voltage Range
5–30 VDC / 5–250 VAC
Nominal Voltage
24 VDC / 120–240 VAC
Max Current per Channel
4 A (resistive), 2 A (pilot duty)
Max Total Current
30 A (UL installations)
Min Load
10 mA
Response Time
15 ms (On/Off)
Isolation Rating
250 VAC continuous / 1500 VAC for 60 s
LED Indicators
8 (one per output channel)
Power Supply Requirement
External: 24 VDC or 120–240 VAC
Mounting Compatibility
Series 90-30 baseplate (local/remote I/O)
Dimensions (W×H×D)
3.5 × 13.2 × 13.5 cm
Weight
0.3 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Eight Form A relay outputs with individual isolation and commons
Supports mixed-voltage AC/DC loads up to 250 VAC or 30 VDC
Handles high current loads up to 4 A per channel
LED indicators for output status monitoring
Compatible with RX3i and Series 90-30 baseplates
Ideal for motor starters, solenoids, and pilot lamps
