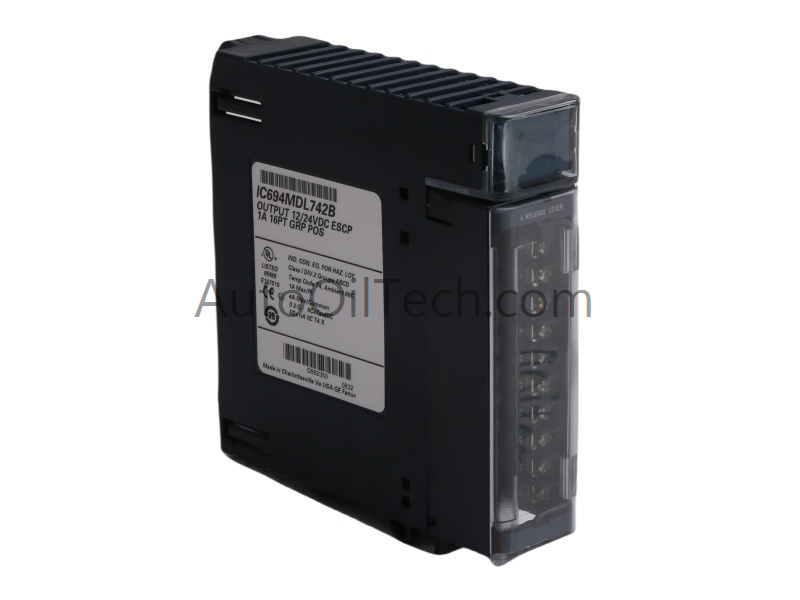

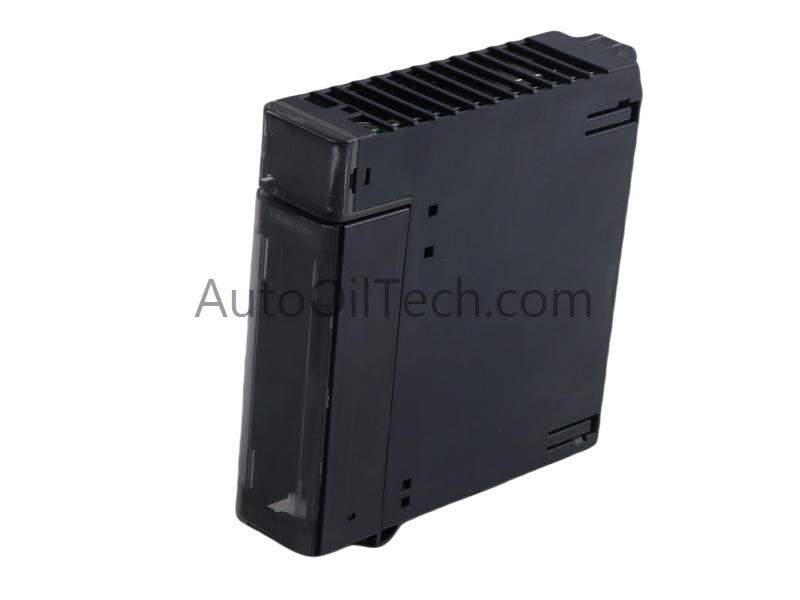

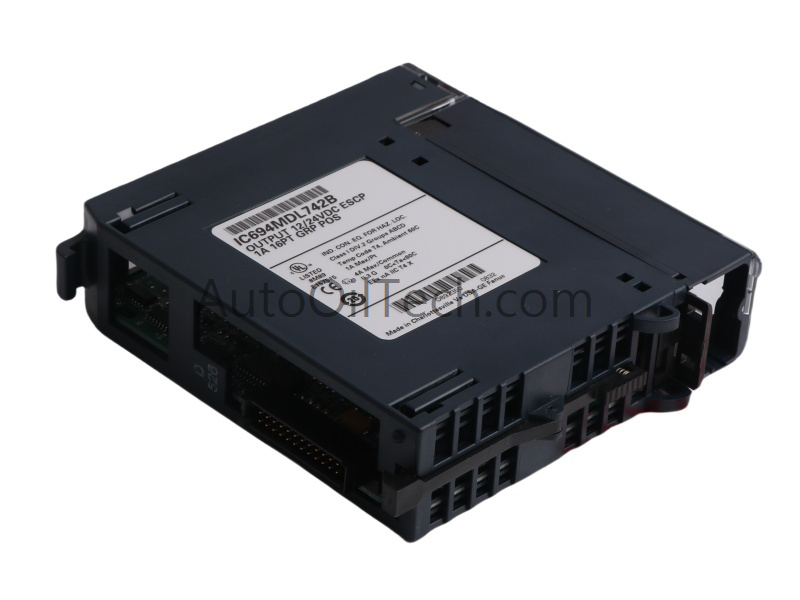

The IC694MDL742 is a 16-point DC voltage output module engineered by GE Fanuc for the PACSystems™ RX3i PLC platform. It fits into any available rack slot and supports negative logic output, making it suitable for diverse industrial control applications.
Key Specifications
Parameter
Details
Model Number
IC694MDL742
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
Voltage Output
Output Channels
16 (2 groups of 8)
Output Logic
Negative
Voltage Range
12–24 V DC (±15% / +20%)
Inrush Current
5.2 A for 10 ms
Power Consumption
130 mA
Dimensions (W×H×D)
3.5 × 13.2 × 13.5 cm
Weight
0.3 kg
LED Indicators
16 output LEDs + Fault LED
Hot Swap Capability
Yes (special insertion/removal mode)
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Built-in short-circuit protection for both output groups.
LED indicators for each output channel and fault status.
Supports hot swapping for uninterrupted system operation.
