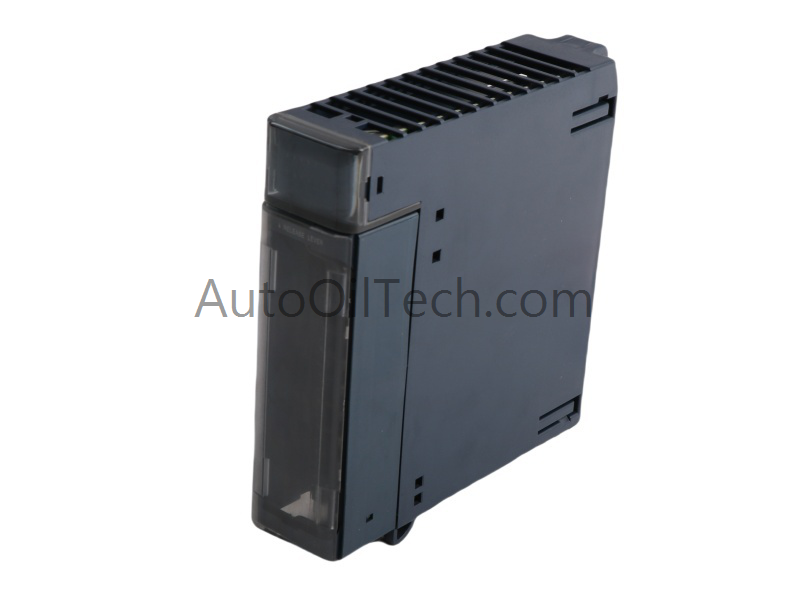

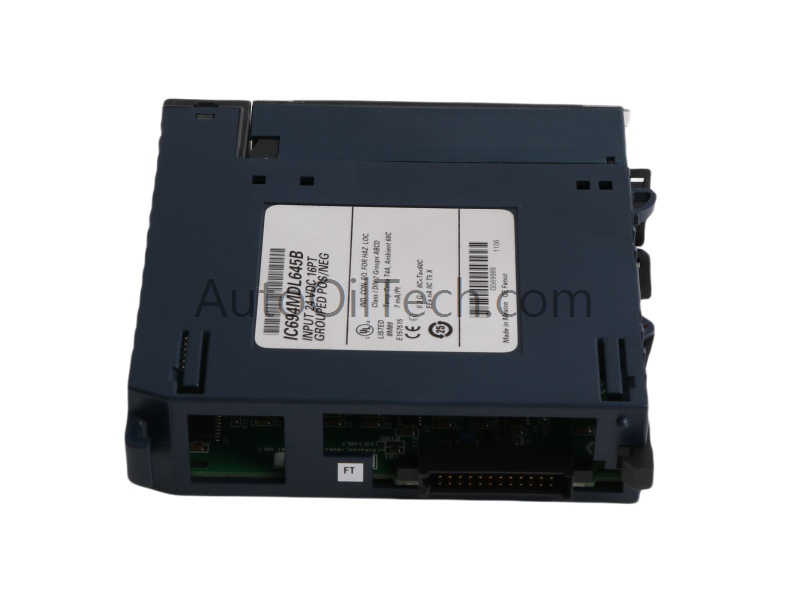

The IC694MDL645 is a high-performance voltage input module from GE Fanuc’s PACSystems™ RX3i series. It features 16 input channels compatible with both positive and negative logic wiring, making it ideal for industrial sensors and switches.
Key Specifications
Parameter
Details
Model Number
IC694MDL645
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
Voltage Input
Input Channels
16
Rated Voltage
24 VDC
Input Voltage Range
0–30 VDC
ON-State Voltage
11.5–30 VDC
OFF-State Voltage
0–5 VDC
Input Current
Min: 3.2 mA / Max: 1.1 mA
Response Time
7 ms per channel
Isolation Rating
250 VAC continuous / 1500 VAC for 1 min
LED Indicators
16 green LEDs (one per channel)
Dimensions (W×H×D)
3.5 × 13.2 × 13.5 cm
Weight
0.3 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Supports both positive and negative logic wiring.
Fast 7 ms response time ensures real-time input processing.
LED indicators simplify channel status monitoring.
High isolation protects against electrical interference.
Compatible with RX3i and RX7i systems (distributed I/O only for RX7i).
Applications & Compatibility
The IC694MDL645 is ideal for monitoring limit switches, proximity sensors, and pushbuttons in industrial automation. It integrates with PACSystems RX3i and supports distributed I/O in RX7i, making it a versatile choice for scalable control architectures.
