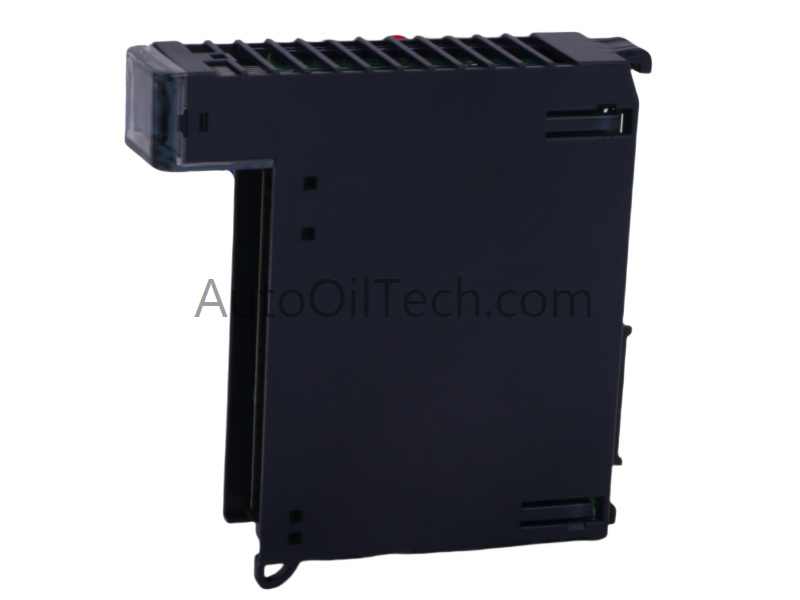

The GE Fanuc IC694MDL260 Input Module is a discrete input unit for PACSystems RX3i controllers, designed to monitor AC signals from field devices. It provides reliable detection of 120 VAC inputs with optical isolation, ensuring safe and stable integration into industrial automation systems.
Specifications
Manufacturer: GE Fanuc
Model Number: IC694MDL260
Type: AC Digital Input Module
Input Points: 32 channels
Nominal Input Voltage: 120 VAC
Input Voltage Range: 0–132 VAC
On‑State Voltage: 74–132 VAC
Off‑State Voltage: 0–20 VAC
Input Current: Approx. 10 mA per point at 120 VAC
Isolation: Optical isolation per channel
Response Time: 25 ms typical ON/OFF
Indicators: Individual LED status indicators per input channel
Compatibility: PACSystems RX3i racks and controllers
Mounting: Standard RX3i backplane installation
Weight: Approx. 0.7 kg
Operating Range: –20 °C to +60 °C
Features
High‑Density Design: 32 input points for compact AC signal acquisition
Reliable Detection: Stable monitoring of 120 VAC discrete inputs
Optical Isolation: Protects PLC logic from field‑side disturbances
Diagnostic LEDs: Per‑channel indicators for quick troubleshooting
Industrial Durability: Built for continuous duty in harsh environments
Seamless Integration: Fully compatible with RX3i PACSystems architecture
