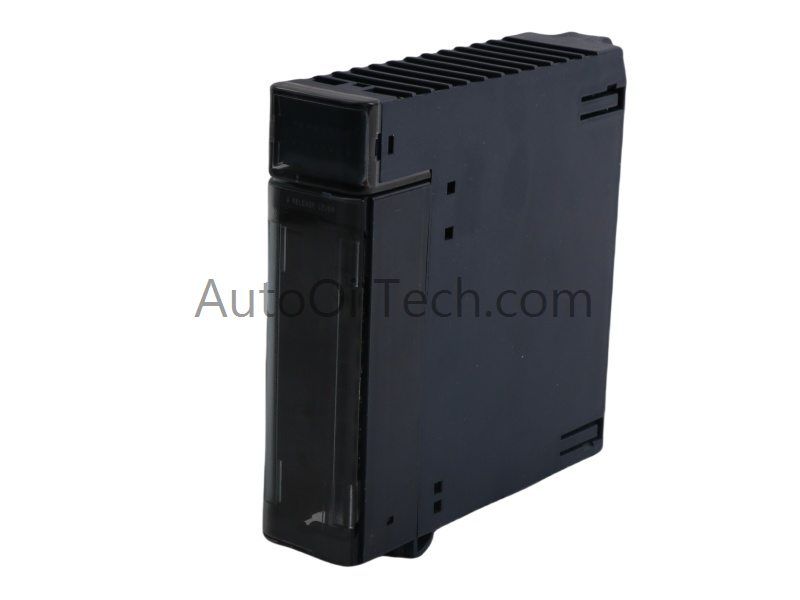

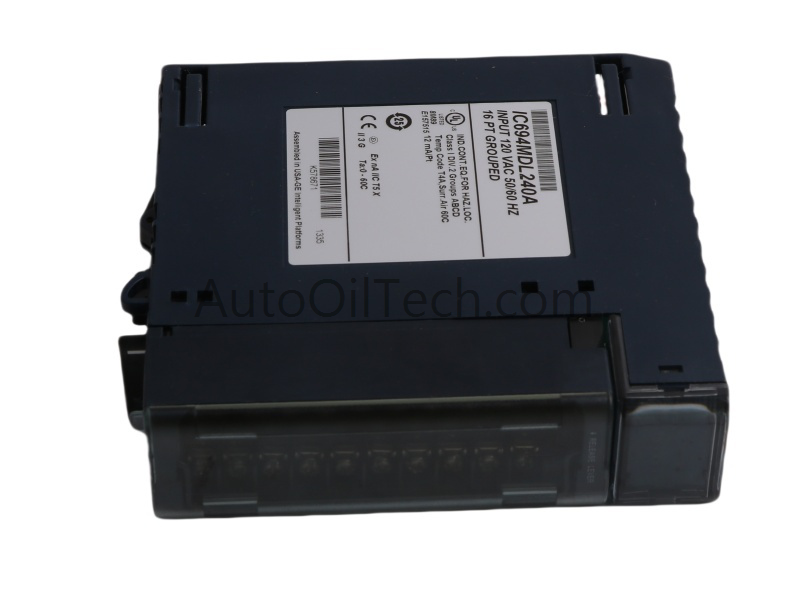

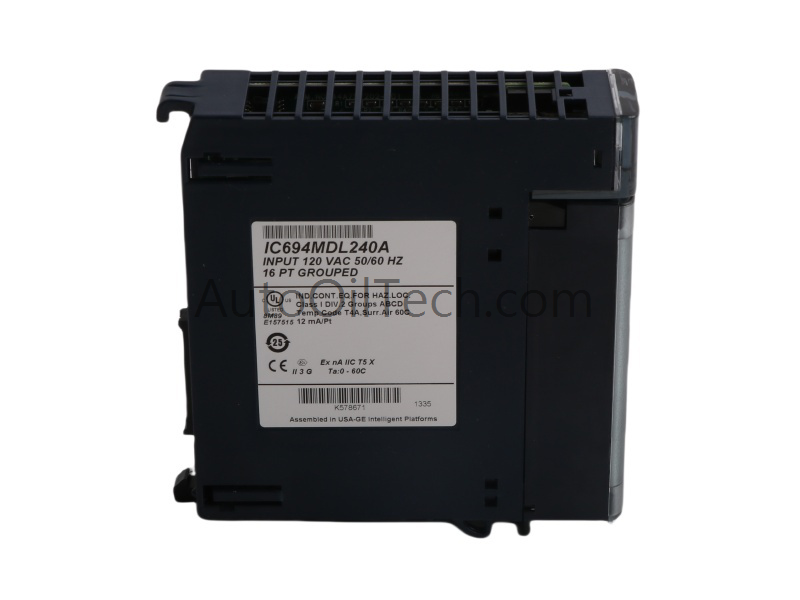

The IC694MDL240 is a 16-point discrete AC input module from GE Fanuc’s PACSystems™ RX3i platform. Designed for 120 VAC-rated systems, it supports input voltages from 85 to 132 VAC at 50/60 Hz and provides reliable signal acquisition for industrial automation.
Key Specifications
Parameter
Details
Model Number
IC694MDL240
Manufacturer
GE Fanuc
Product Series
PACSystems™ RX3i
Module Type
Volt AC Input
Input Channels
16
Input Voltage Range
85–132 VAC
Input Frequency
50/60 Hz
ON-State Voltage
74–132 VAC
OFF-State Voltage
0–20 VAC
Response Time
30 ms (ON), 45 ms (OFF)
Backplane Current Draw
90 mA
Isolation Rating
250 VAC continuous / 1500 VAC for 1 min
LED Indicators
16 (one per input channel)
Dimensions (W×H×D)
3.5 × 13.2 × 13.5 cm
Weight
0.28 kg
Compliance
UL 508, Class 1 Div 2
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
16 input points with individual LED indicators for real-time diagnostics.
High-voltage classification with red band marking.
Optical isolation ensures robust protection in industrial environments.
Fast response times suitable for time-sensitive applications.
Compatible with a wide range of binary input devices.
