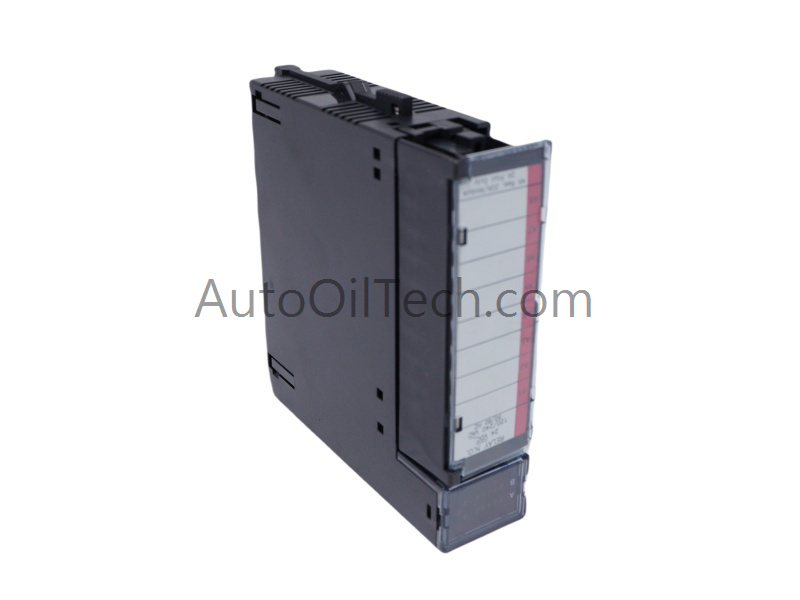

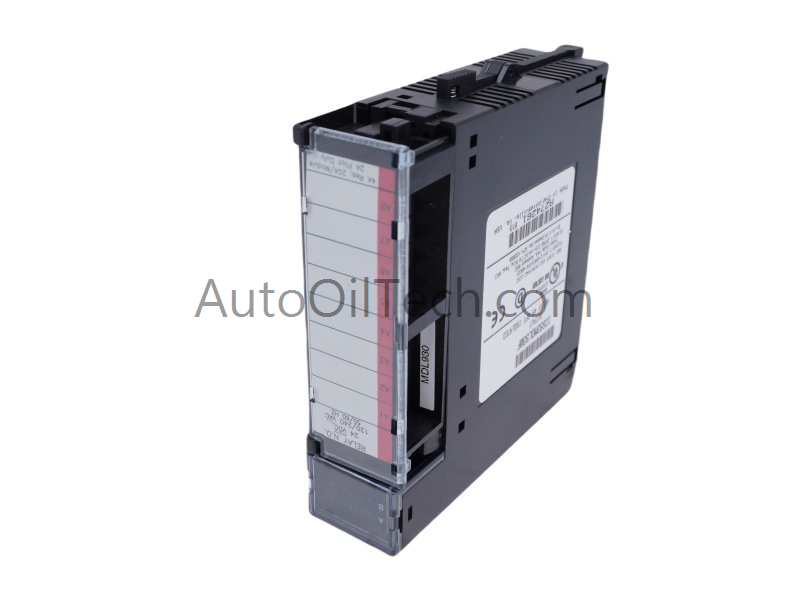

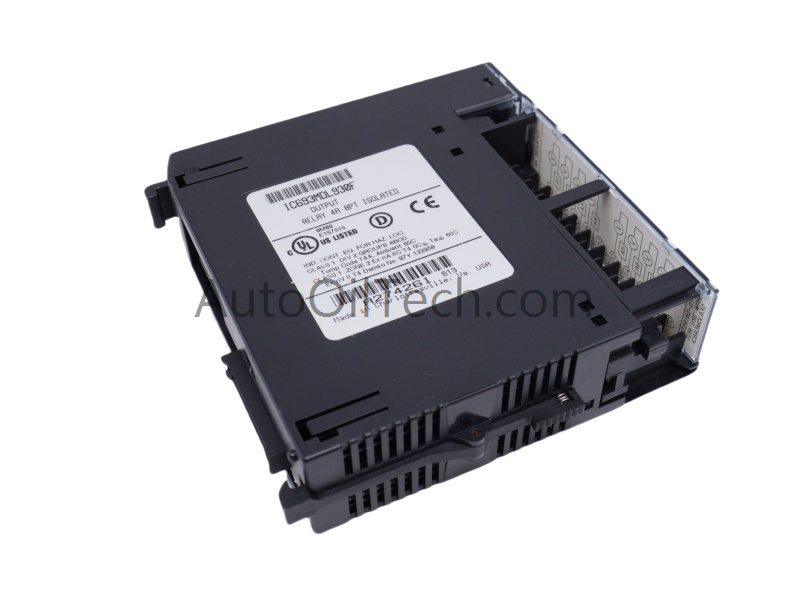

The IC693MDL930 is an 8-point isolated relay output module designed for GE Fanuc’s Series 90-30 PLC systems, with full compatibility for RX3i and RX7i platforms. Each output channel features a normally open (N.O.) relay contact with individual isolation, allowing mixed-voltage operation across channels.
Key Specifications
Parameter
Details
Model Number
IC693MDL930
Manufacturer
GE Fanuc
Product Series
Series 90-30 / RX3i Compatible
Module Type
Isolated Relay Output
Output Channels
8 (individually isolated)
Contact Type
Normally Open (Form A)
Voltage Range
5–30 VDC / 5–250 VAC (50/60 Hz)
Rated Load per Channel
4 A resistive
Max Inrush Current
5 A
Max Total Current
20 A per module (UL rated)
Min Load
10 mA
Isolation (Field–Logic)
1500 V
Isolation (Channel–Channel)
500 V
Power Consumption
6 mA @ 5 VDC, 70 mA @ 24 VDC relay bus
LED Indicators
8 (one per output channel)
Operating Temperature
0–50 °C
Dimensions (W×H×D)
3.5 × 13.2 × 13.5 cm
Weight
0.36 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Eight individually isolated relay outputs for flexible voltage control
Supports both AC and DC loads up to 250 VAC or 30 VDC
High current capacity: 4 A per point, 20 A total (UL)
LED indicators for real-time output status monitoring
Compatible with Series 90-30, RX3i, and RX7i systems
Ideal for motor starters, solenoids, and pilot lamps
