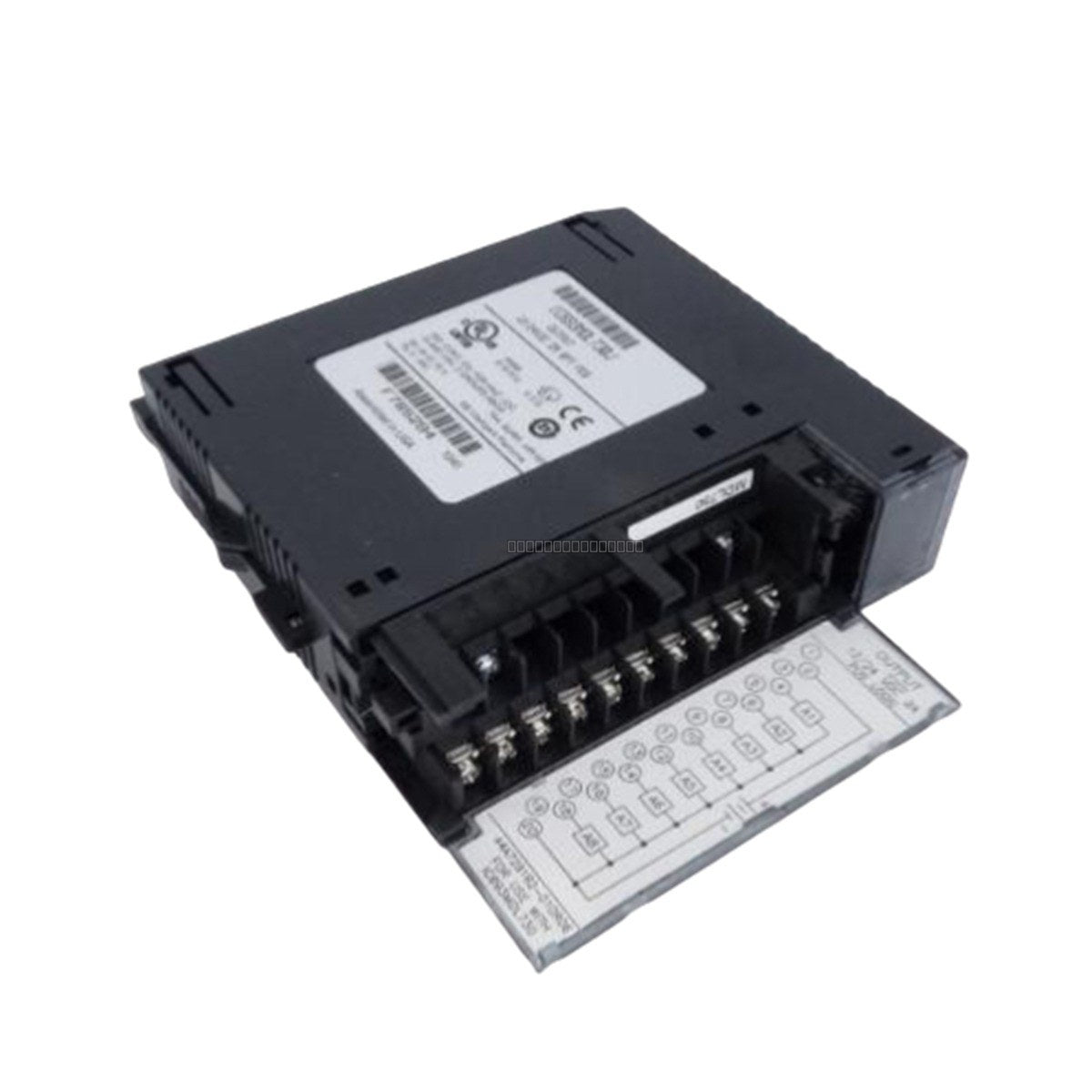

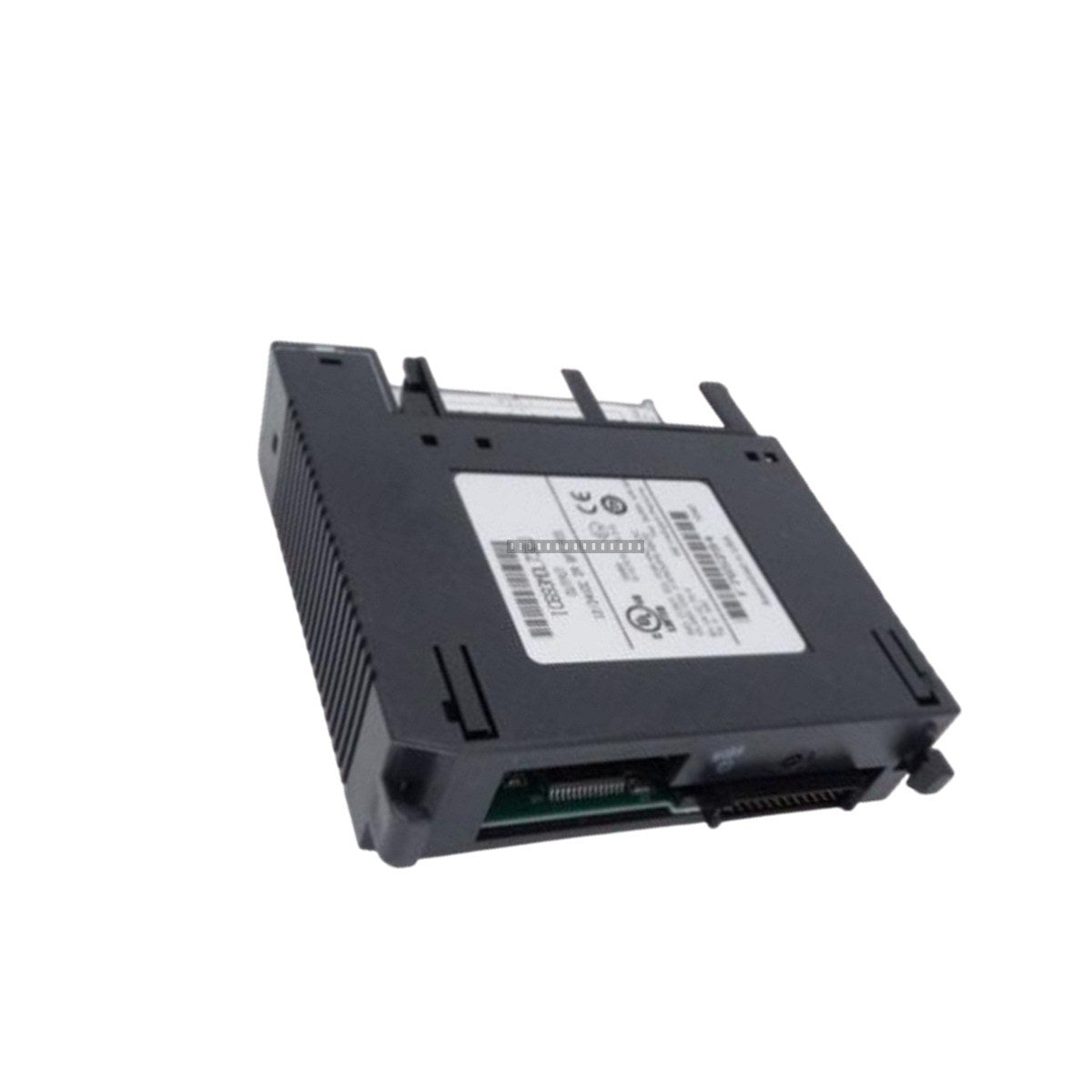

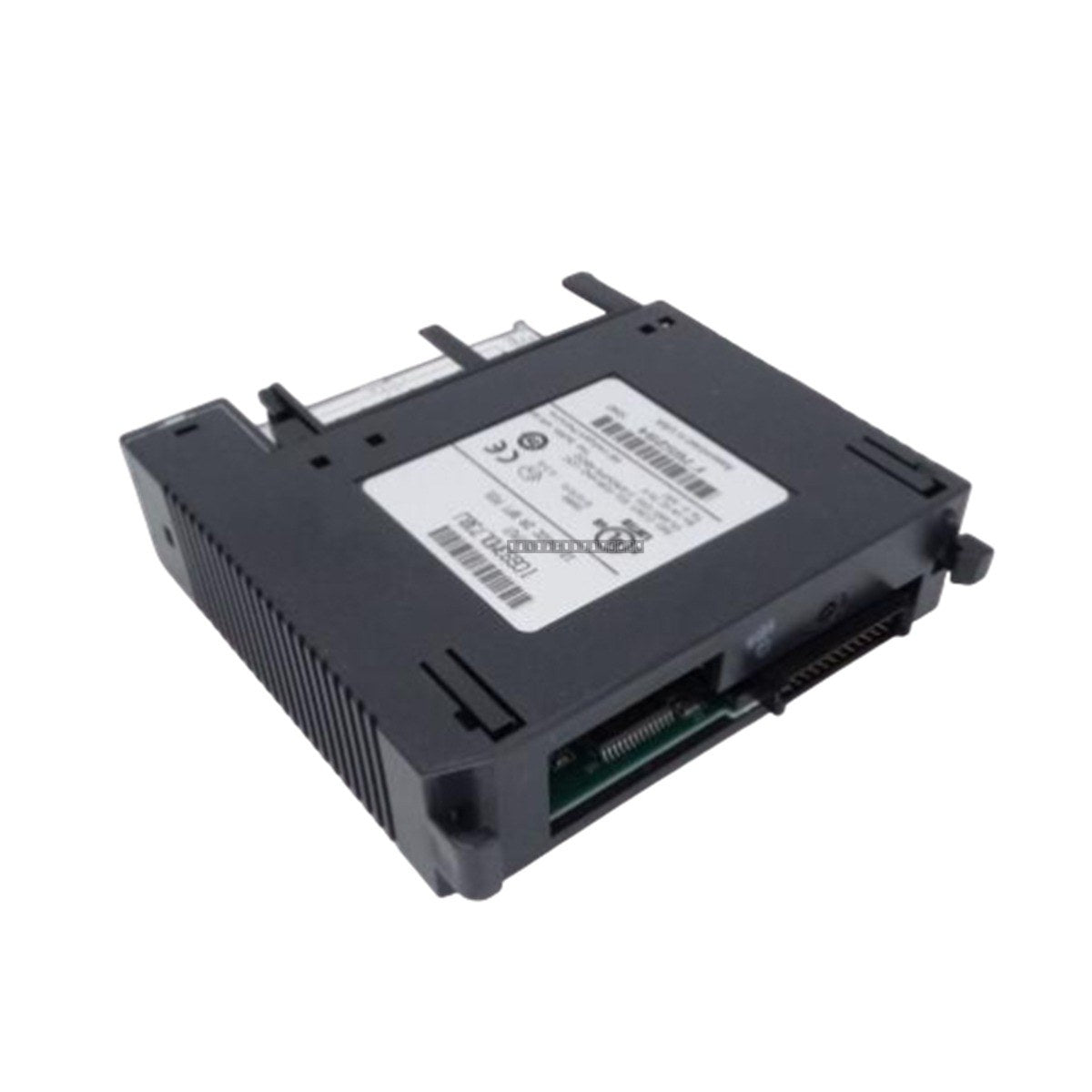

The IC693MDL730 is a 12/24 VDC Positive Logic Output Module designed for the GE Series 90-30 Programmable Logic Controller (PLC) system. This module provides eight discrete output channels grouped together, suitable for controlling various industrial loads in automation environments.
Features
Eight (8) discrete output channels in a single group
Positive logic output configuration
12/24 VDC operating voltage range
2 Amp maximum output current per point
1500 VAC isolation between field and logic sides
Compatible with Series 90-30 5-slot and 10-slot baseplates
Hinged door with integrated wiring information insert
Applications
Packaging and material handling systems
Water and waste management pump control
Manufacturing process automation
Building infrastructure and HVAC control
Technical Specifications
Model
IC693MDL730
Output Type
Positive Logic
Number of Outputs
8
Voltage Range
12/24 VDC
Current Rating
2 A per point
Inrush Current
9.4 A for 10 ms
Voltage Drop
1.2 V maximum
Off-state Leakage
1 mA maximum
Response Time
2 ms (On/Off)
Backplane Current
55 mA at 5V
Installation Guidelines
Ensure the PLC system power is disconnected before installing or removing the module from the baseplate.
The module occupies a single slot in a Series 90-30 baseplate.
For versions IC693MDL730F and newer, ensure the terminal board holding screws are tightened to prevent loosening in high-vibration environments.
Keep the hinged door closed during operation to protect the terminal block from dust and debris.
Use appropriate shielded cabling for field wiring to minimize EMI interference.
FAQ
What is the difference between positive and negative logic for this module?
Positive logic means the module sources current from the positive power bus to the load. The load must be connected between the module output terminal and the negative power bus.
What is the thermal rating for the output fuses?
The module supports 2 Amperes per fuse at 60 degC and up to 4 Amperes per fuse at 50 degC.
