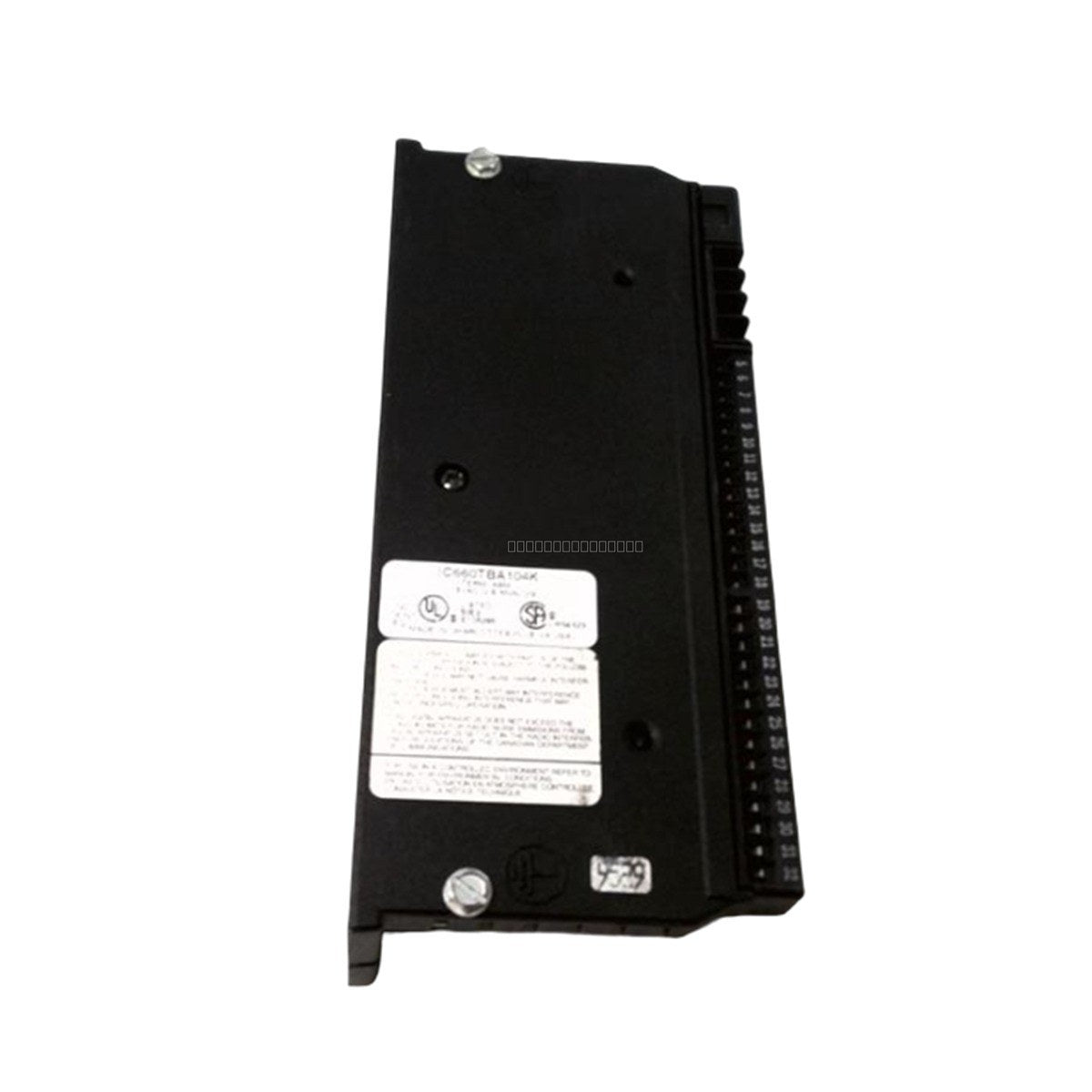

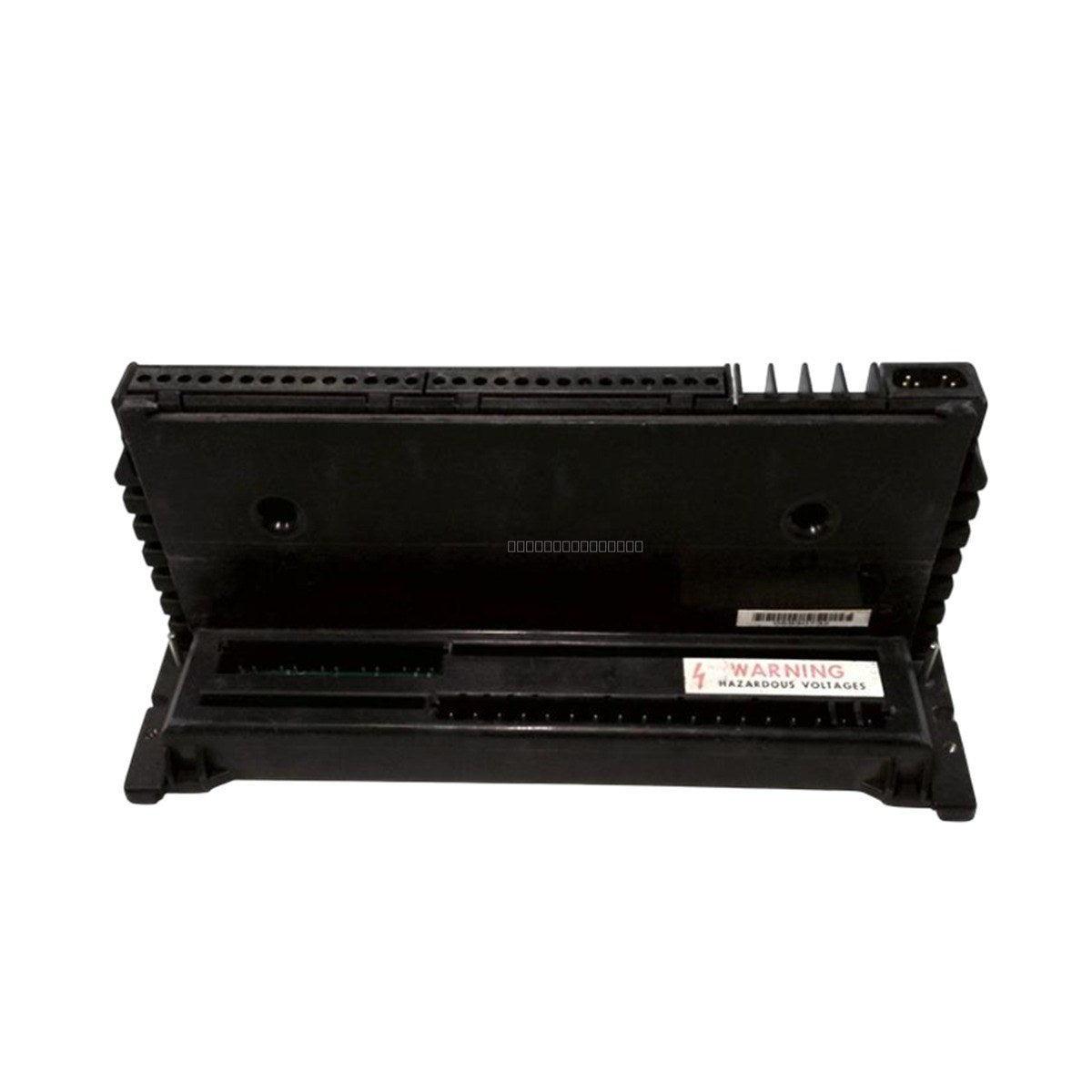

The General Electric IC660TBA104 is a terminal assembly designed for the Genius I/O system. This component provides the necessary physical connection points for field wiring, facilitating the integration of I/O circuits within the Genius distributed control architecture.
Features
Designed for integration with Genius I/O blocks.
Supports 4 input and 2 output circuits.
Rated for 115V AC or 125V DC operation.
Provides robust isolation: 1500V block-to-block and 300V group-to-group.
Engineered for reliable performance in industrial environments with a maximum heat dissipation of 12 Watts.
Technical Specifications
Product Model
IC660TBA104
Voltage Rating
115V AC / 125V DC
Operating Voltage Range
93-132V AC / 105-145V DC
Maximum Current
250mA (AC) / 140mA (DC)
Frequency/Ripple
47-63 Hz / 10% max ripple
Isolation (Block to Block)
1500V (1 minute)
Isolation (Group to Group)
300V
Power Supply Dropout
1 cycle (AC) / 10ms (DC)
Weight
0.5 kg
Installation Guidelines
Ensure all power is disconnected from the Genius I/O block before installing or removing the terminal assembly.
Verify that the terminal assembly is securely seated to ensure proper electrical contact with the I/O block.
Route field wiring away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Use appropriate wire gauges as specified by local electrical codes and ensure all terminal screws are tightened to the recommended torque.
Maintain adequate ventilation around the I/O block to prevent exceeding the maximum heat dissipation limits.
FAQ
What is the primary function of the IC660TBA104?
The IC660TBA104 serves as a terminal assembly for Genius I/O blocks, providing the physical interface for connecting field devices to the control system.
Is this terminal assembly compatible with both AC and DC voltages?
Yes, the unit is rated for 115V AC and 125V DC applications, with specific operating ranges defined for each.
