- GE Fanuc IC660ERD025 IC660TBD025 IC660BRD025 Genius I/O Modules
Sale
GE Fanuc IC660ERD025 IC660TBD025 IC660BRD025 Genius I/O Modules
No reviews
In stock!
- Part Number: IC660ERD025 IC660TBD025 IC660BRD025
- Brand: General Electric
- Type: PLC Modules
- Dimensions: 4.1x12.5x10.5cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Tags:
GE Fanuc Genius I/O
,
PLC Modules
Product Description

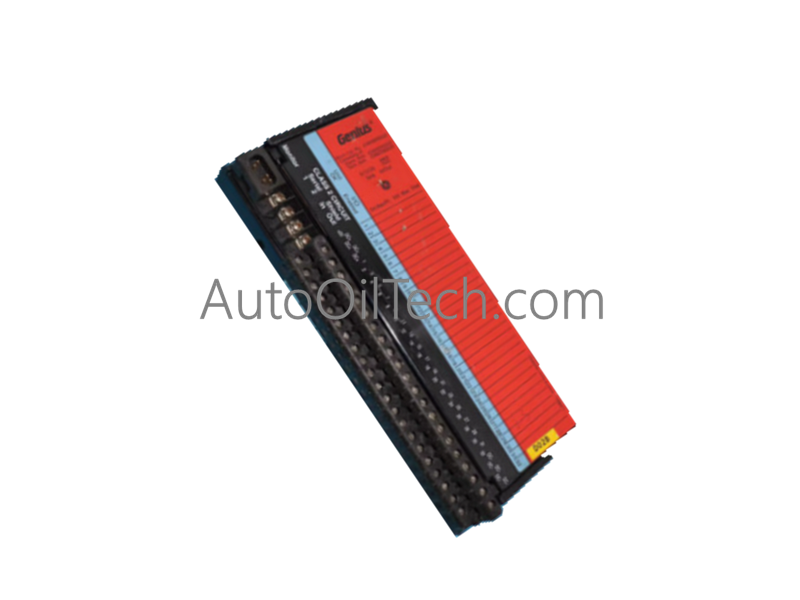

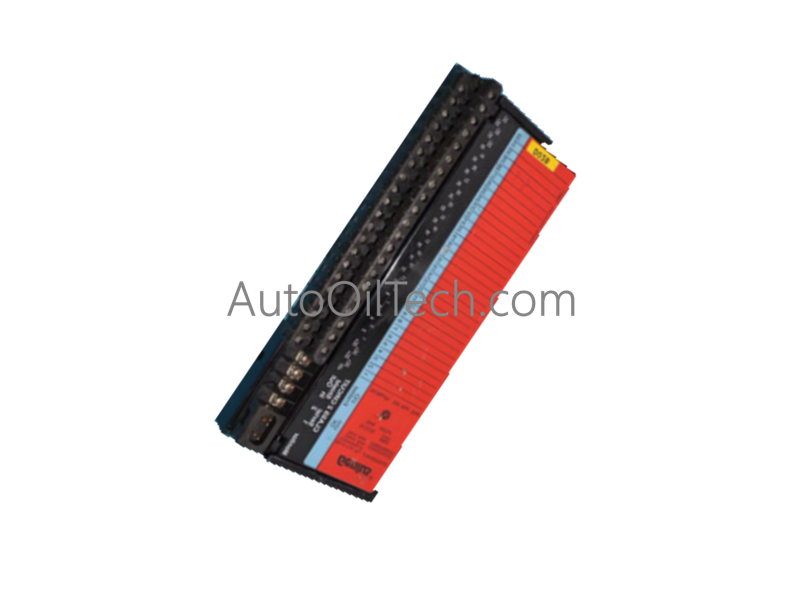

Configured for discrete signal switching and bus communication in Genius I/O networks, the GE Fanuc IC660ERD025 IC660TBD025 IC660BRD025 (IC660BRD025 PLC Module/Rack) provides direct physical and electrical execution.
Suffix Breakdown & Model Matrix
| Code Element | Designation / Value | Functional Description |
|---|---|---|
| IC660ERD025 | Genius Electronics / Expansion Block | Electronics assembly or expansion variant |
| IC660TBD025 | Genius Terminal Base Block | Field wiring terminal base component |
| IC660BRD025 | Genius I/O Block Module | 16-circuit DC sink discrete module |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC660ERD025 / IC660TBD025 / IC660BRD025 |
| Brand | GE Fanuc |
| Origin | USA / Global Manufacturing Plants |
| Weight | 15.00 lbs (approx. 6.80 kg) |
| Dimensions | Standard Genius block form factor |
| Operating Temp | Standard industrial cabinet range (0 deg C to 60 deg C) |
| Power Consumption | Powered via 12/24 VDC external loop and network bus |
| Circuit Configuration | 16 circuits supporting DC sink configurations |
| Redundancy Support | Configured for redundancy "T" output topologies |
| Network Interface | Genius serial bus protocol interface |
Profinet and Backplane Bus Communication Velocity
Integrated within Genius I/O architecture, the module maintains deterministic serial communication loops and consistent backplane bus communication velocity. Firmware flash compatibility and hardware revision matching ensure that token-passing frames execute without packet drop or latency spikes. Internal bus transceivers manage high-speed data exchanges between field-side discrete circuits and controller nodes, preserving signal integrity across distributed network topologies.
Frequently Asked Questions
Q: What circuit configurations and output topologies are supported by this Genius block series?
A: The system supports 16 discrete circuits designed for DC sink configurations and redundancy "T" output wiring topologies.
Q: What operating power supply voltage is required for module execution?
A: The hardware operates using a standard 12/24 VDC power supply input routed through the terminal base blocks.
Q: How should the block assembly be secured within heavy industrial cabinets?
A: Secure the assembly using rated mounting hardware to withstand cabinet vibration, ensuring proper earthing of shield lines to prevent electrical noise coupling.
Field Installation Guidelines
Mount the module assembly securely onto a flat panel surface or structural DIN support using rated fastening hardware, accounting for its physical weight. Ensure proper termination of the Genius serial communication cable with correct impedance-matching resistors at both ends of the bus. Verify that external 12/24 VDC power lines are de-energized prior to connecting terminal blocks to prevent arc pitting on pins.
