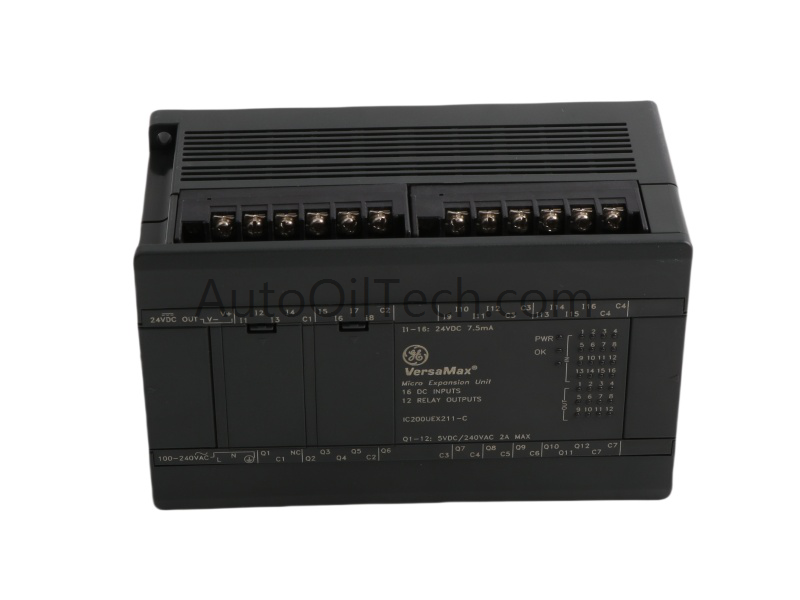

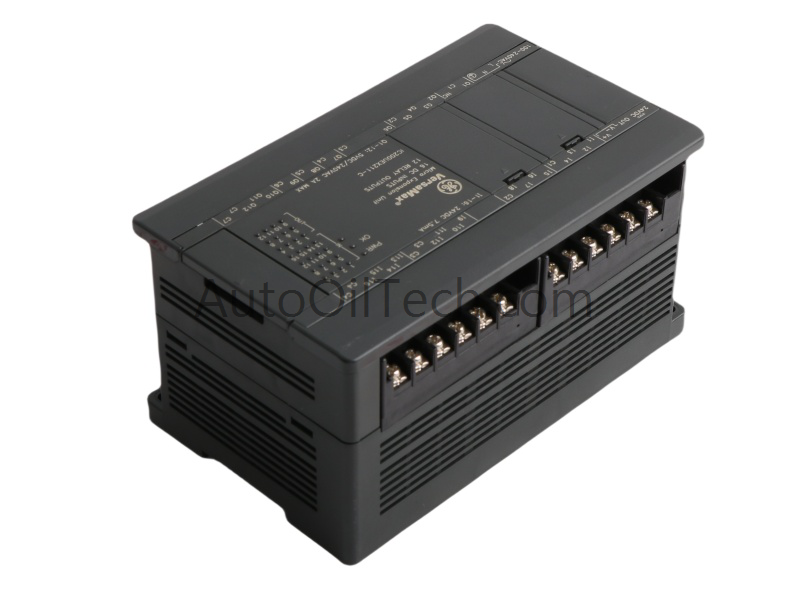

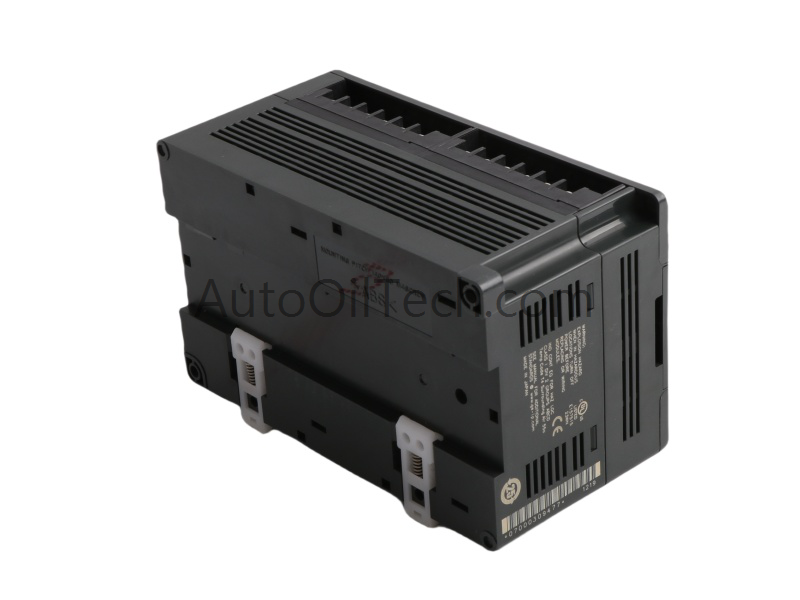

The General Electric IC200UEX211 is a versatile expansion unit within the VersaMax Micro PLC series. It provides sixteen configurable DC inputs and twelve Form A relay outputs, making it a reliable solution for industrial automation. With dimensions of 15x9x7.5cm and a weight of 0.56kg, this module integrates seamlessly into compact control environments.
Technical Specifications
Parameter
Value
Model Number
IC200UEX211
Module Type
Expansion Module
Manufacturer
GE Fanuc
Product Range
VersaMax
Condition
Brand New
Weight
0.56 kg
Dimensions
15 x 9 x 7.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Active
Communication Service
Ethernet router
Functional Description
The GE Fanuc IC200UEX211 offers sixteen DC inputs configurable for positive or negative logic, supporting devices such as pushbuttons, limit switches, and proximity sensors. It supplies +24VDC for input devices with a maximum current of 200mA.
The module includes twelve Form A relay outputs, each rated at 2A, suitable for motor starters, solenoids, and other load devices. Outputs are normally open and can be powered by AC or DC sources, providing flexibility for diverse field applications.
It accepts AC input power from 100–240VAC at 50–60Hz and supports high inrush currents up to 40A. Built-in +24VDC power supply enhances usability, while robust design ensures reliable operation in demanding environments.
Applications and Compatibility
The IC200UEX211 integrates into VersaMax Micro PLC systems, expanding input and output capacity for industrial automation. It is ideal for manufacturing, energy management, and process control applications requiring flexible DC inputs and relay outputs. Engineers value its compact design, high inrush capability, and compatibility with PACSystems RX3i controllers.
