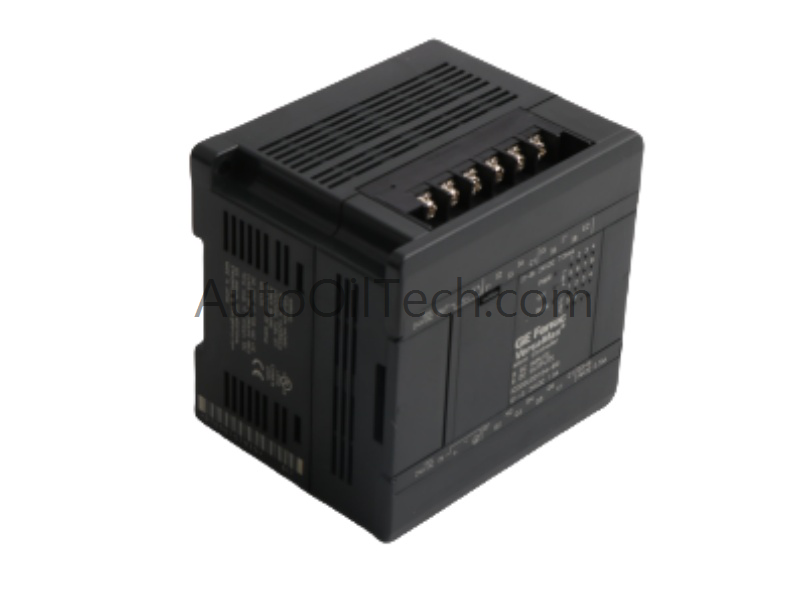

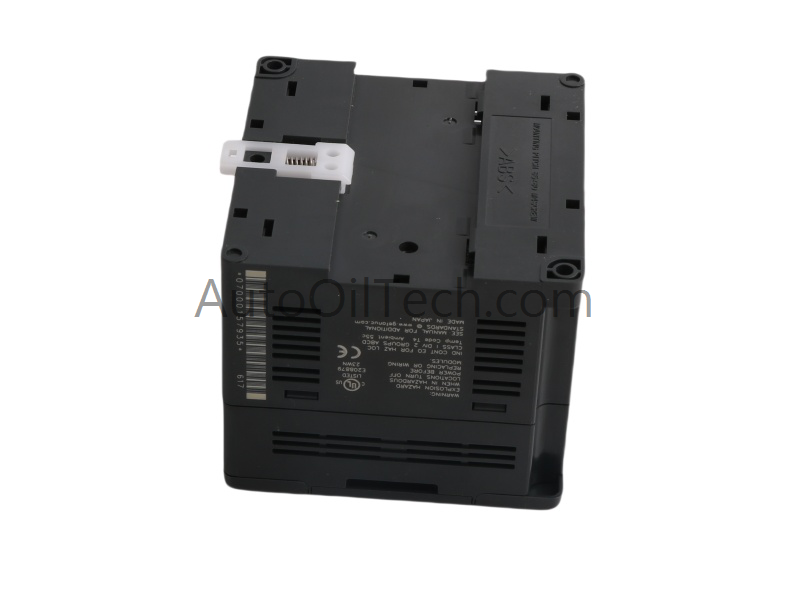

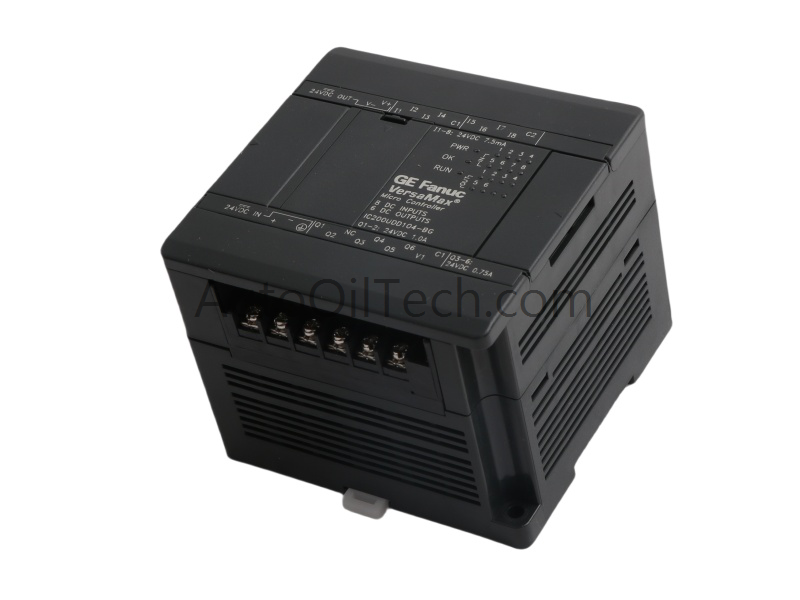

The General Electric IC200UDD104 is a rugged 14-point programmable logic controller within the VersaMax series. It combines compact design with advanced control features, making it ideal for industrial automation environments. Measuring 9.4x9.3x7.5cm and weighing 0.28kg, this PLC offers efficient installation and reliable operation.
Technical Specifications
Parameter
Value
Model Number
IC200UDD104
Module Type
Micro 14-Point PLC
Manufacturer
GE Fanuc
Product Range
VersaMax
Condition
Brand New
Weight
0.28 kg
Dimensions
9.4 x 9.3 x 7.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Active
Communication Service
Ethernet router
Functional Description
The GE Fanuc IC200UDD104 features 8 DC inputs, 4 low-current DC transistor outputs, and 2 high-current DC transistor outputs, totaling six 24VDC outputs. Outputs use positive logic switching and are isolated between field and logic sides, with fast fuses recommended for protection. The module supports high-speed counters, including Type A for edge detection and Type B with A Quad B functionality, enabling precise motion control. Two onboard analog potentiometers, floating-point math instructions, and non-volatile flash memory enhance programming flexibility.
The IC200UDD104 supports load voltages of 12/24V and a maximum PWM frequency of 5kHz. It offers four pulse output types (HSC, PT, PWM), ensuring versatile control options. External power supplies between 10–30VDC are required, with a minimum switching current of 1mA.
Applications and Compatibility
The IC200UDD104 integrates seamlessly into VersaMax PLC systems, making it suitable for automated production lines, velocity measurement, and motion control applications. Its robust design, high-speed counter capability, and flexible programming set make it a reliable solution for complex industrial automation tasks.
