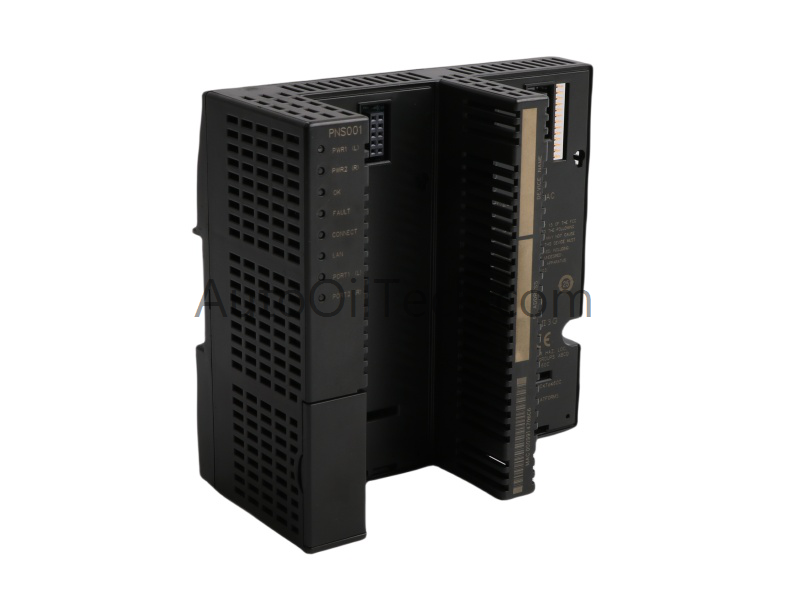

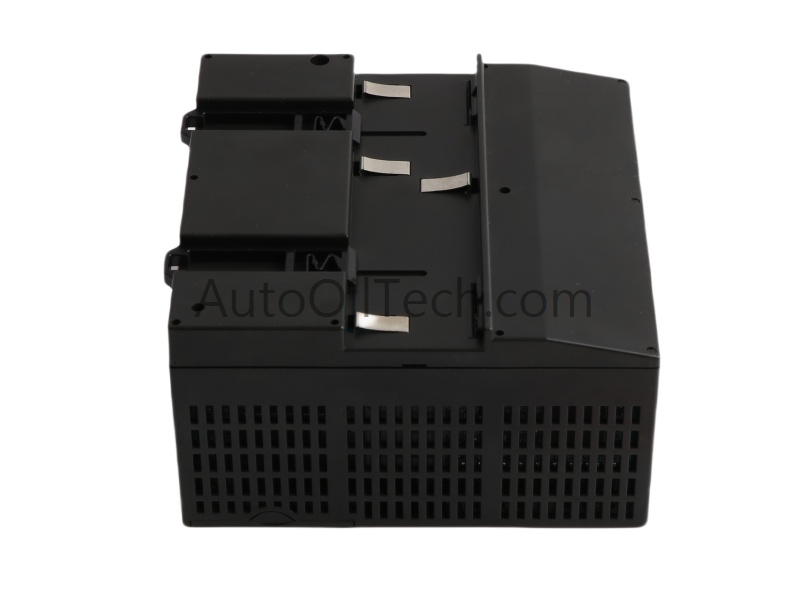

The General Electric IC200PNS001 is a high-performance PROFINET scanner module within the VersaMax series. It enables distributed I/O architecture using the PROFINET protocol, supporting Slave Version 2.2 Class A devices. With dimensions of 13.3x13x6.8cm and a weight of 0.26kg, this module integrates seamlessly into PLC systems for industrial automation.
Technical Specifications
Parameter
Value
Model Number
IC200PNS001
Module Type
Scanner Module
Manufacturer
GE Fanuc
Product Range
VersaMax
Condition
Brand New
Weight
0.26 kg
Dimensions
13.3 x 13 x 6.8 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Active
Communication Service
Ethernet router
Functional Description

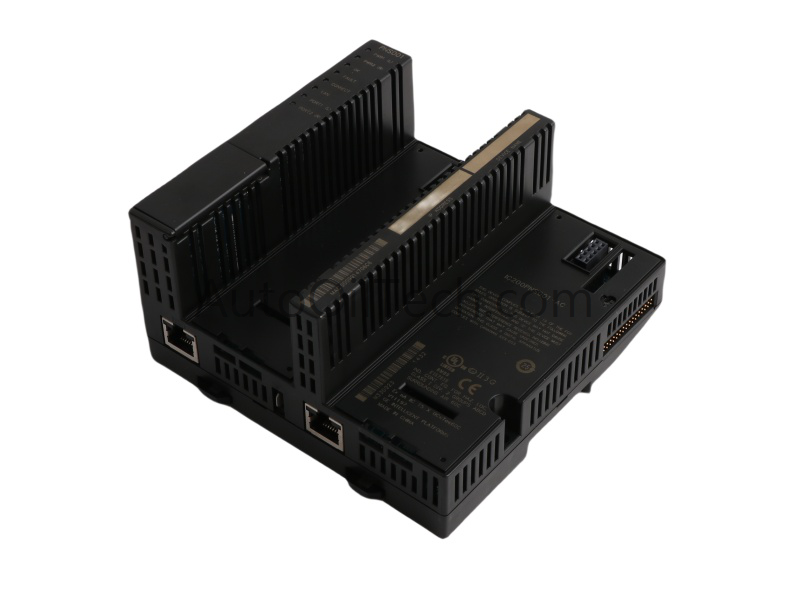

The GE Fanuc IC200PNS001 supports up to eight VersaMax I/O modules and carriers per instance. It features two RJ45 ports functioning as an embedded switch, requiring only one IP address. Supporting linear, star, and ring Ethernet topologies, it delivers 10/100 Mbps transmission rates. The module handles up to 2880 bytes of I/O data (1440 input, 1440 output) and provides 32 diagnostic input bits and 32 output control bits.
It consumes 3W from the 5VDC backplane and supports configurable update rates from 1ms to 512ms. The module allows cable distances up to 100m per segment, extendable with Ethernet switches or fiber converters. Additional features include hot-swappable power supply support, CIDR subnetting, and firmware updates via USB.
Applications and Compatibility
The IC200PNS001 integrates with VersaMax I/O modules and PACSystems RX3i/RX7i controllers. It coordinates remote nodes within PROFINET I/O networks, managing input retrieval, output delivery, and diagnostics. Suitable for manufacturing, energy management, and process control, it ensures reliable communication in industrial environments operating between 0–60°C.
