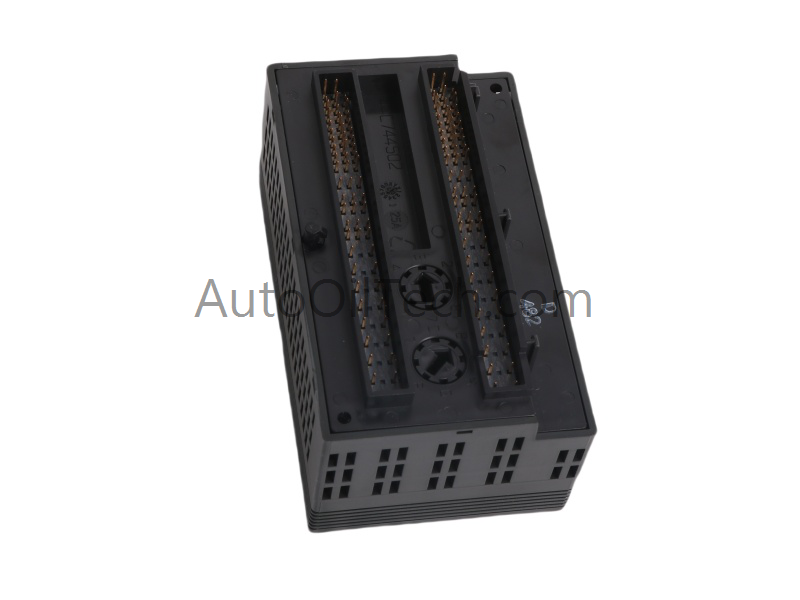

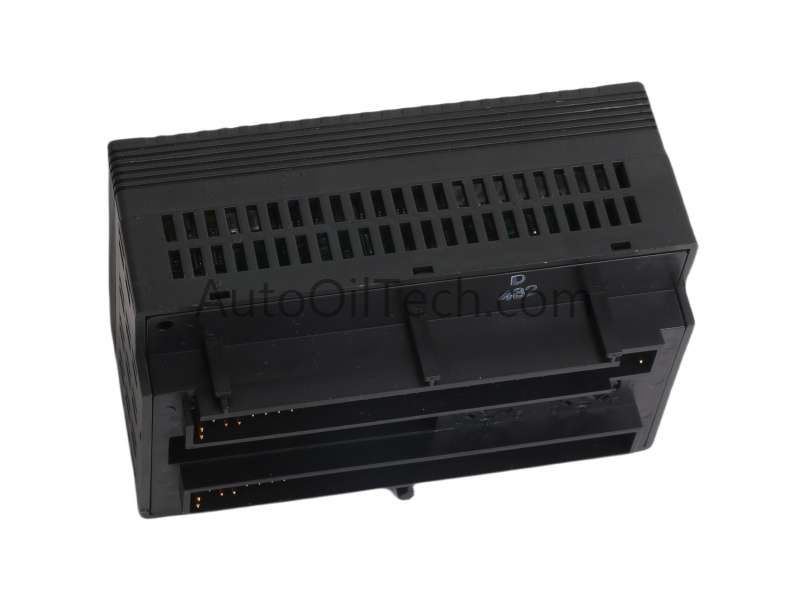

The General Electric IC200MDL241 is a discrete input module designed for VersaMax PLC systems. It provides 16 AC input channels for reliable signal acquisition from pushbuttons, switches, and sensors. Compact dimensions of 11x5.8x6.5cm and a lightweight 0.1kg build make it ideal for space-efficient installations in industrial automation.
Technical Specifications
Parameter
Value
Model Number
IC200MDL241
Module Type
AC Input Module
Manufacturer
GE Fanuc
Product Range
VersaMax
Condition
Brand New
Weight
0.1 kg
Dimensions
11 x 5.8 x 6.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Active
Communication Service
Ethernet router
Functional Description
The GE Fanuc IC200MDL241 features 16 non-isolated logic/sourcing inputs divided into two groups of eight channels. It operates at a nominal voltage of 240VAC, with an input range of 0–264VAC. On-state voltage spans 155–264VAC, while off-state remains between 0–40VAC. The module draws 110mA from the backplane at 5VDC, eliminating the need for an external power supply. Group isolation of 1500V for one minute ensures electrical protection.
Seventeen LED indicators provide clear monitoring, including one for backplane operation and 16 for input status. Hot-swapping capability and DIN rail mounting with snap-in terminals simplify installation and maintenance.
Applications and Compatibility
The IC200MDL241 integrates seamlessly into VersaMax PLC systems, supporting industrial automation tasks such as machine control, energy management, and process monitoring. Its compact design, diagnostic LEDs, and hot-swapping functionality make it a cost-effective solution for engineers requiring reliable AC input modules.
