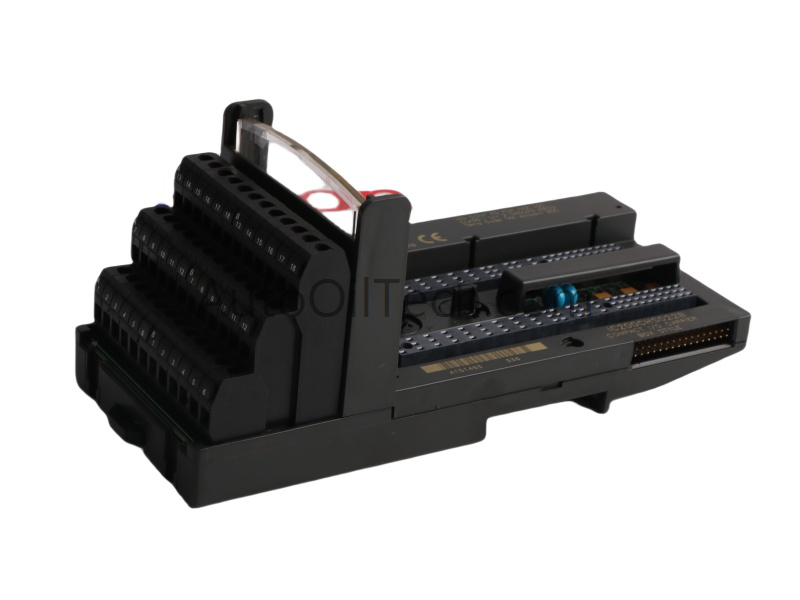

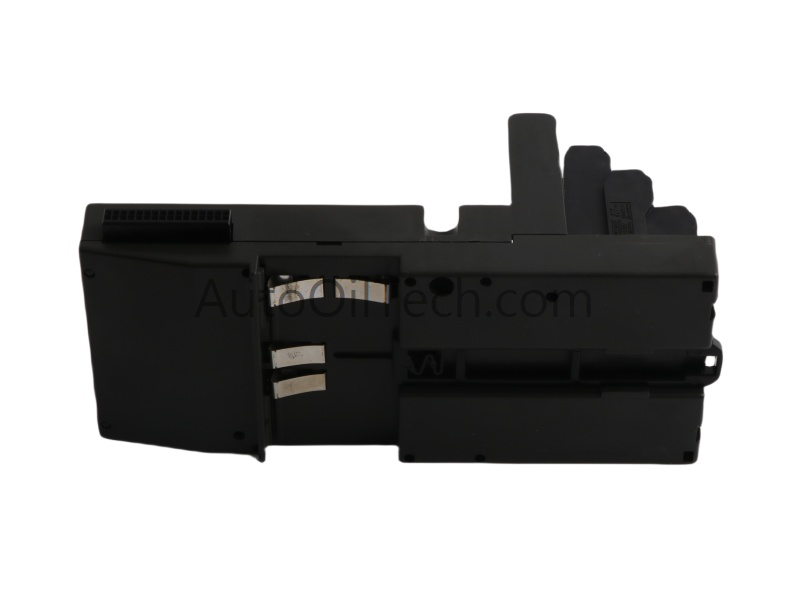

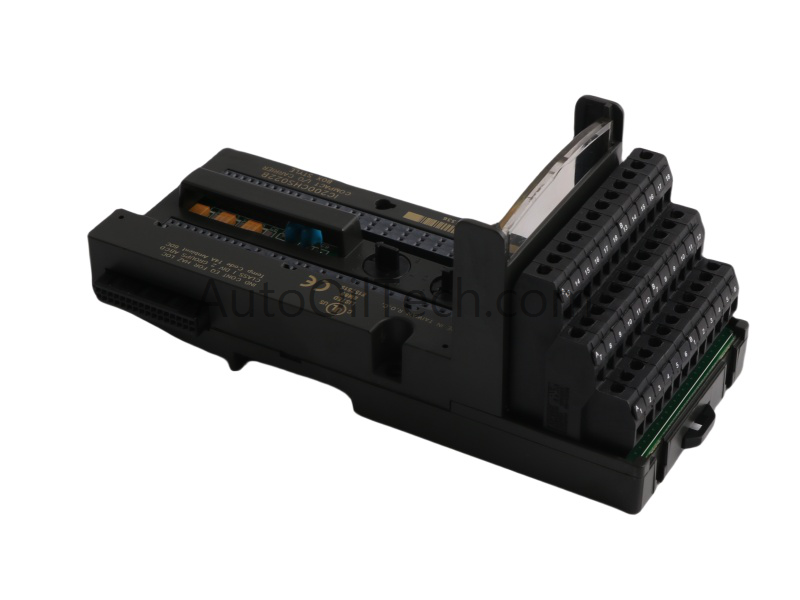

The General Electric IC200CHS022 is a compact box-style I/O carrier within the VersaMax series. It provides secure wiring terminals for input and output devices, ensuring reliable integration with PLC systems. With dimensions of 16.5x6.5x7cm and a weight of 0.24kg, the module is designed for efficient installation in industrial automation environments.
Technical Specifications
Parameter
Value
Model Number
IC200CHS022
Module Type
Compact Box-Style I/O Carrier
Manufacturer
GE Fanuc
Product Range
VersaMax
Condition
Brand New
Weight
0.24 kg
Dimensions
16.5 x 6.5 x 7 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Active
Communication Service
Ethernet router
Functional Description
The GE Fanuc IC200CHS022 features 36 IEC box-style screw terminals, supporting solid or stranded copper wires. Single-wire connections range from AWG #14 to AWG #22, while two-wire shorting connections use AWG #18. Each terminal is rated for 0–264 VAC at 2A, with power and ground segments supporting up to 8A. Terminals withstand transient voltages up to 300 VAC, ensuring durability. The hinged card holder secures the I/O module and protects wiring during operation.
Installation and Reliability
The IC200CHS022 supports DIN rail and panel mounting, requiring 1 inch of horizontal and 2 inches of vertical spacing for heat dissipation. Its modular design allows I/O modules to be replaced or serviced without disconnecting wiring, minimizing downtime. Operating reliably between 0–60°C, it is ideal for demanding industrial automation applications.
Applications and Compatibility
The IC200CHS022 integrates seamlessly with VersaMax I/O modules, making it suitable for manufacturing, energy management, and process control systems. Its modularity and robust electrical ratings ensure compatibility across diverse PLC installations.
