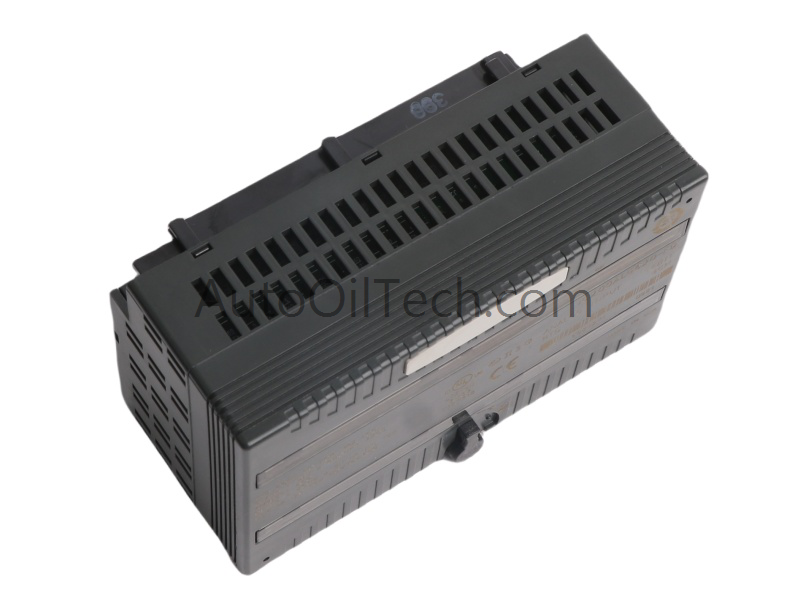

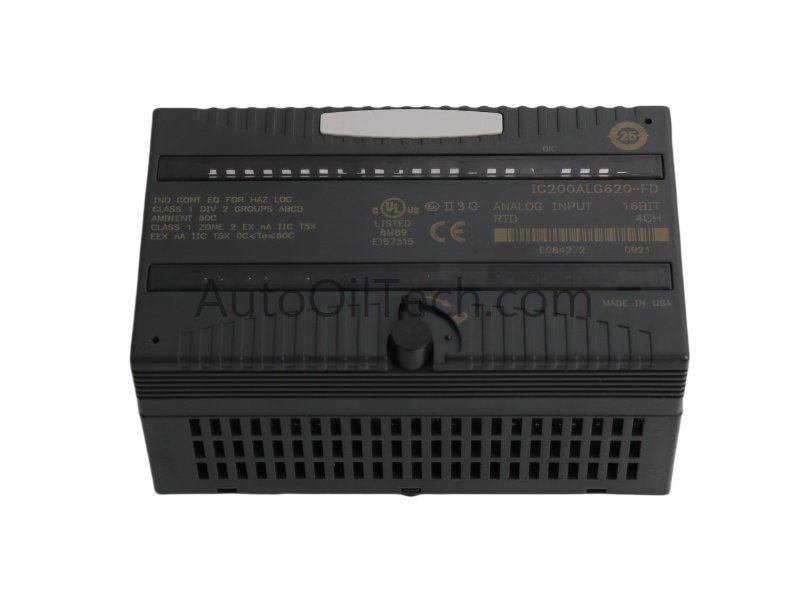

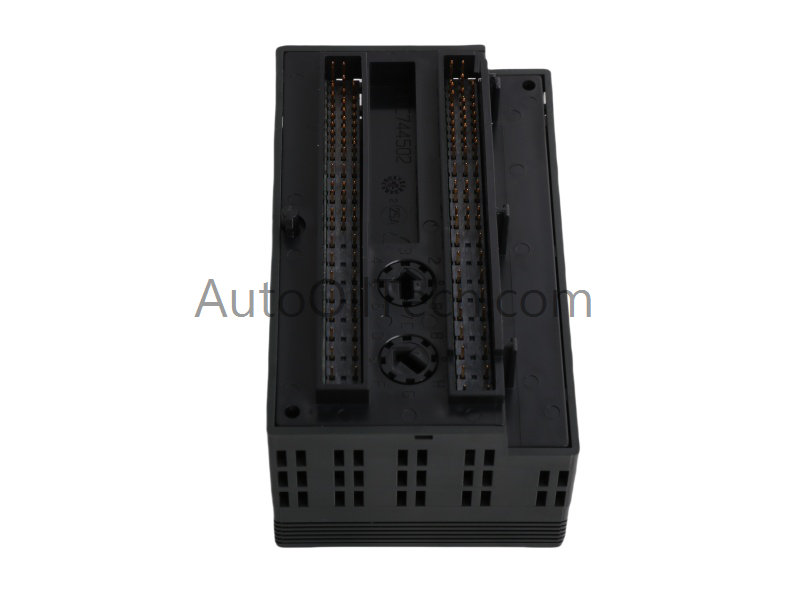

The IC200ALG620 Analog Input RTD Module from GE Fanuc is a high-precision 4-channel unit designed for temperature monitoring in industrial PLC systems. It belongs to the VersaMax I/O family and supports multiple RTD types including Platinum, Copper, Nickel, and Nickel/Iron sensors.
Technical Specifications
Specification
Detail
Model Number
IC200ALG620
Product Series
VersaMax
Manufacturer
General Electric (GE Fanuc)
Module Type
Analog Input RTD Module
System Compatibility
PLC
Dimensions (cm)
15.5 × 15 × 8.3
Weight
0.3 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Performance & Features
Each channel of the IC200ALG620 uses a 16-bit ADC for high-resolution temperature readings. It supports both 3-wire and 4-wire RTD configurations and maintains ±0.15% accuracy at 25°C. The module includes LED indicators for system status—green for normal operation and amber for fault alerts.
Electrical Ratings
Operating voltage: 5V
Current draw: 125 mA at 5.0V and 3.3V
Isolation: 250V AC (input to logic), 1500V AC (input to frame)
