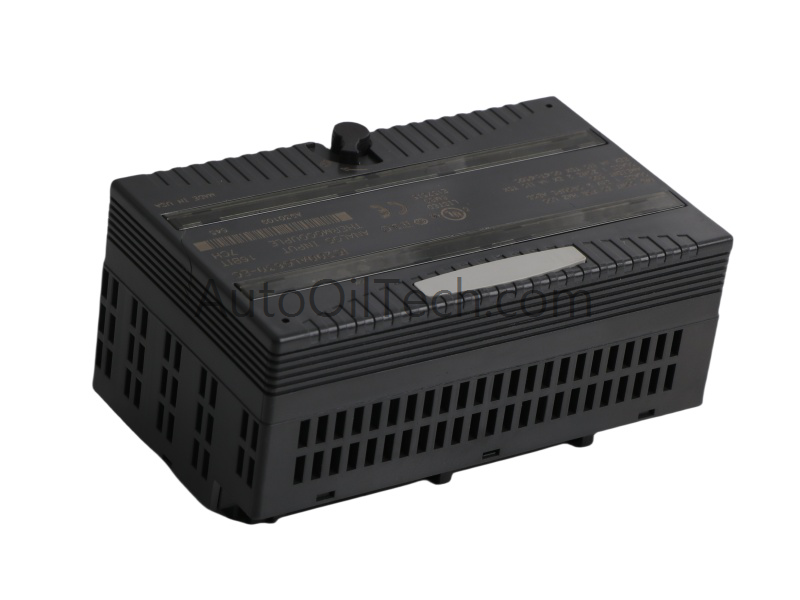

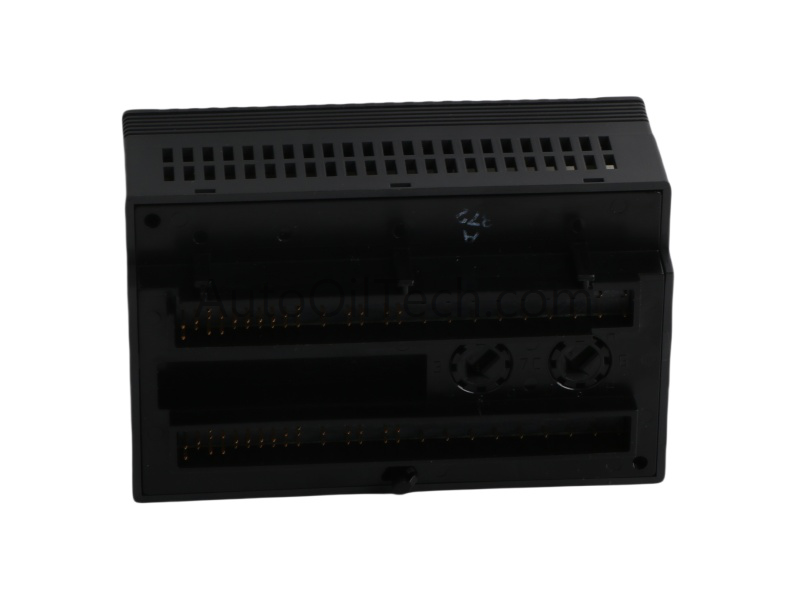

The General Electric IC200ALG322 is a VersaMax analog output module designed for PLC systems requiring precise voltage outputs. With four analog channels, it connects field devices to the main processor, ensuring stable control in industrial automation. Its compact 15.5x15x8.3cm design and 0.26kg weight make it suitable for space-efficient installations.
Technical Specifications
Parameter
Value
Model Number
IC200ALG322
Module Type
Analog Output Module
Manufacturer
GE Fanuc
Product Range
VersaMax
Condition
Brand New
Weight
0.26 kg
Dimensions
15.5 x 15 x 8.3 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Active
Communication Service
Ethernet router
Functional Description
The GE Fanuc IC200ALG322 provides four analog voltage outputs operating at ±10.24VDC. It supports resistive loads of at least 5000 Ohms and delivers 12-bit resolution with accuracy between ±0.3% and ±1%. The module consumes 210mA from the backplane power supply, while outputs require an external source. Built-in diagnostics detect field-side power loss, ensuring reliable monitoring. Crosstalk rejection of 70dB minimizes interference, enhancing performance in demanding environments.
Applications and Compatibility
The IC200ALG322 integrates seamlessly with VersaMax PLC systems, making it ideal for automated production lines, energy management, and process control. Engineers value its diagnostic features, high accuracy, and modular design, which simplify installation and maintenance.
