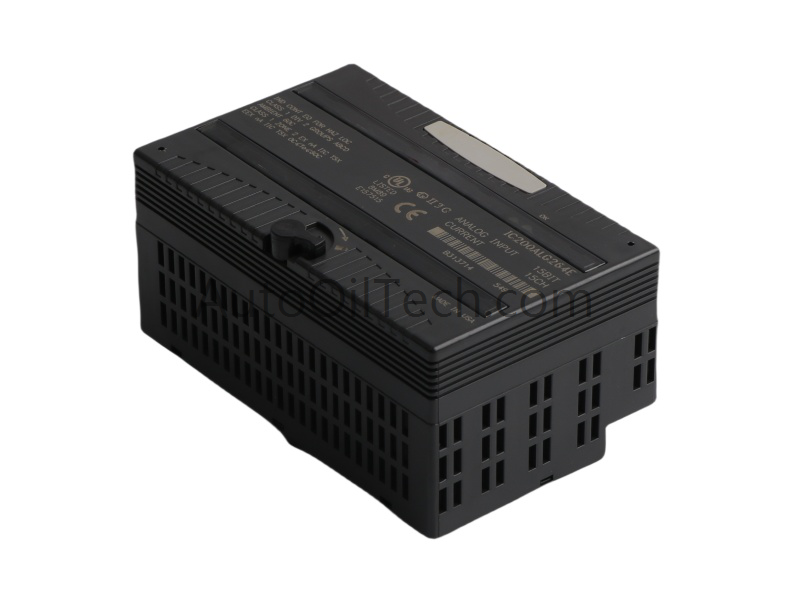

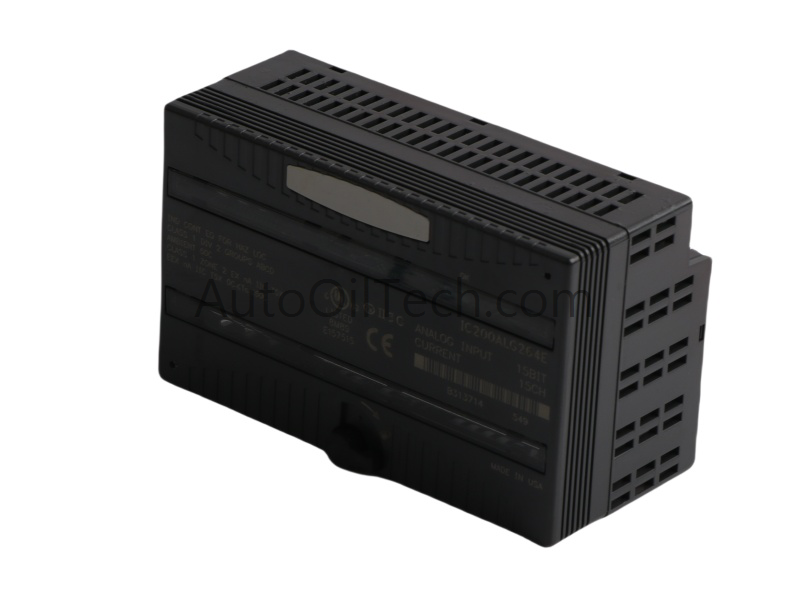

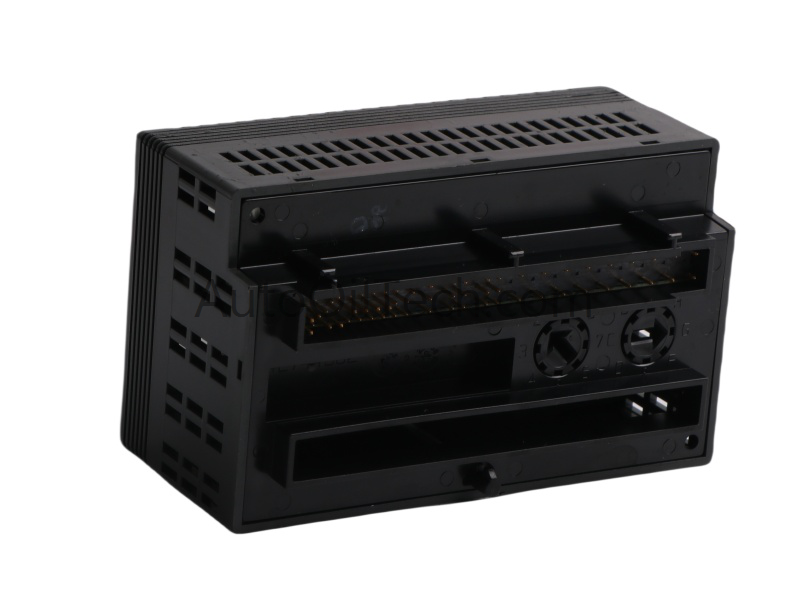

The IC200ALG264 Analog Current Input Module by GE Fanuc is a compact, high-precision unit designed for industrial automation systems using the VersaMax PLC platform. It supports remote installation and communicates I/O data through standard industrial protocols.
Technical Specifications
Specification
Detail
Model Number
IC200ALG264
Product Series
VersaMax
Manufacturer
General Electric (GE Fanuc)
Module Type
Analog Current Input Module
System Compatibility
PLC
Dimensions (cm)
11 × 5.8 × 6.5
Weight
0.12 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Performance & Features
The IC200ALG264 supports 15 analog input channels with 15-bit ADC resolution. It handles both 0–20 mA and 4–20 mA signals, offering:
Accuracy: ±0.3% at 25°C, ±0.5% full scale, ±1% at 60°C
Update rate: 7.5 ms
Backplane current: 100 mA
Isolation: 350 V AC continuous, 1500 V AC for 1 minute (no channel-to-channel isolation)
Configuration is jumper-selectable, with default set to 4–20 mA. Removing the jumper switches to 0–20 mA mode.
Diagnostics & Indicators
The IC200ALG264 includes internal power loss detection and open wire diagnostics (in 4–20 mA mode). Faults are reported to the CPU and visible via HMI or SCADA systems. An "OK" LED confirms successful initialization and configuration.
