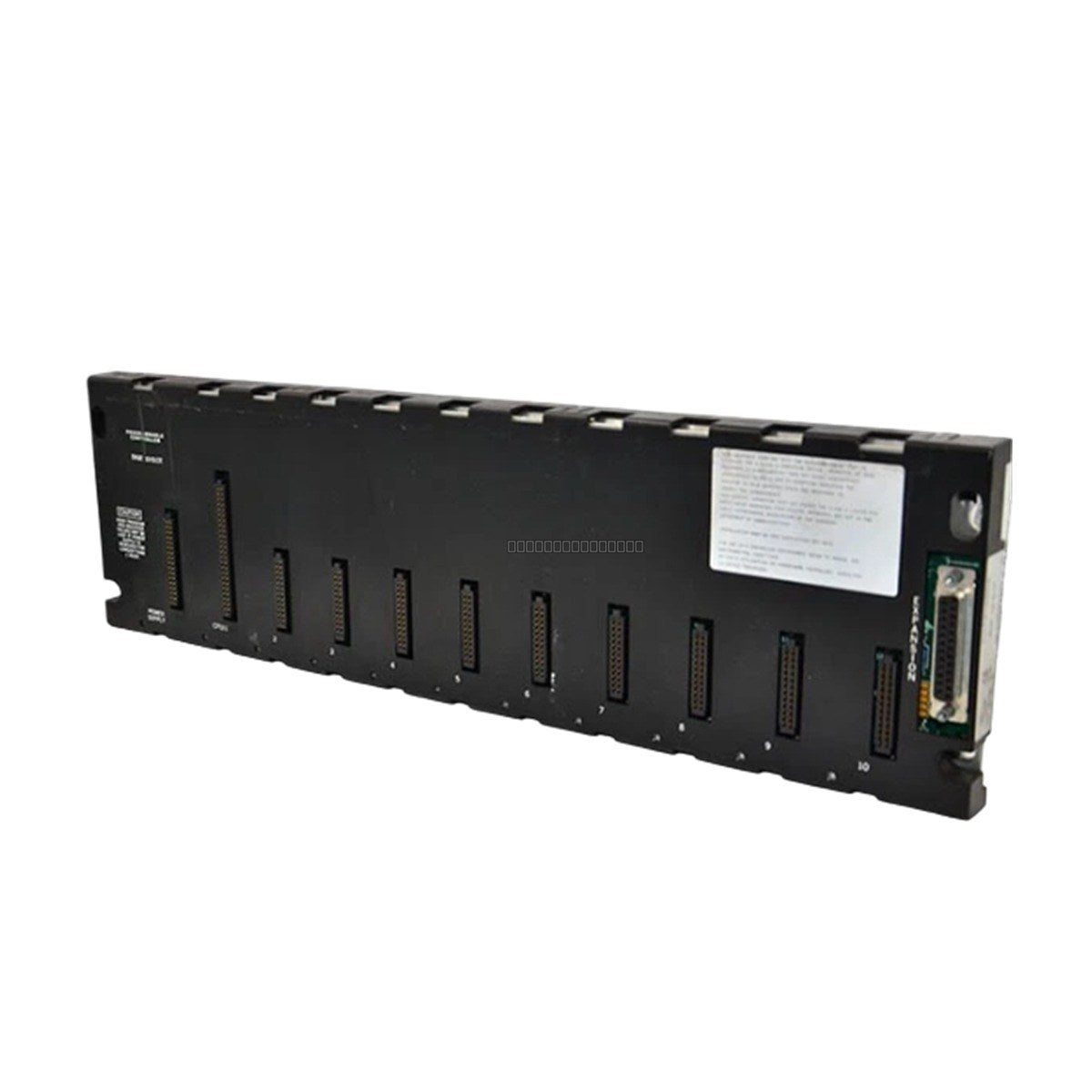

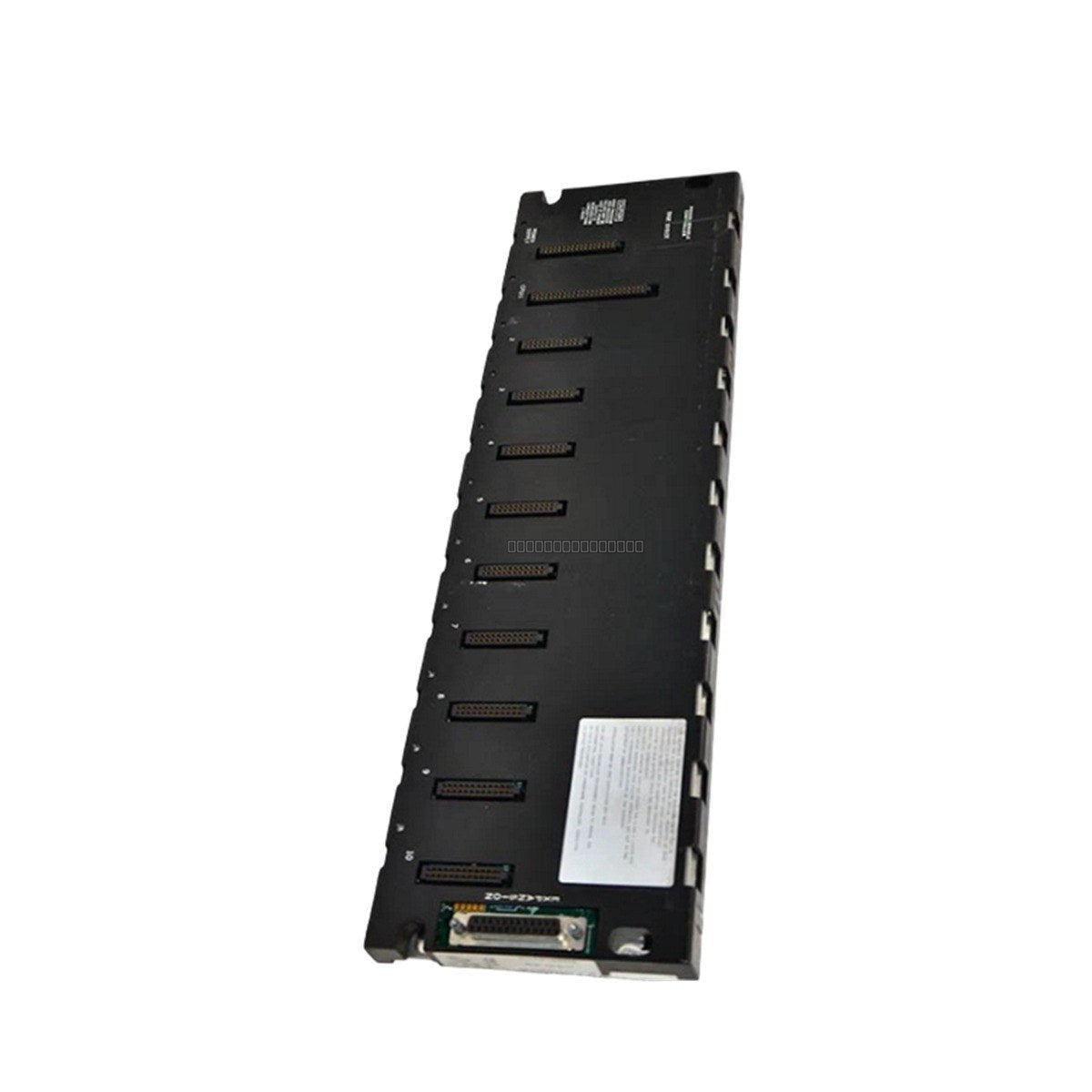

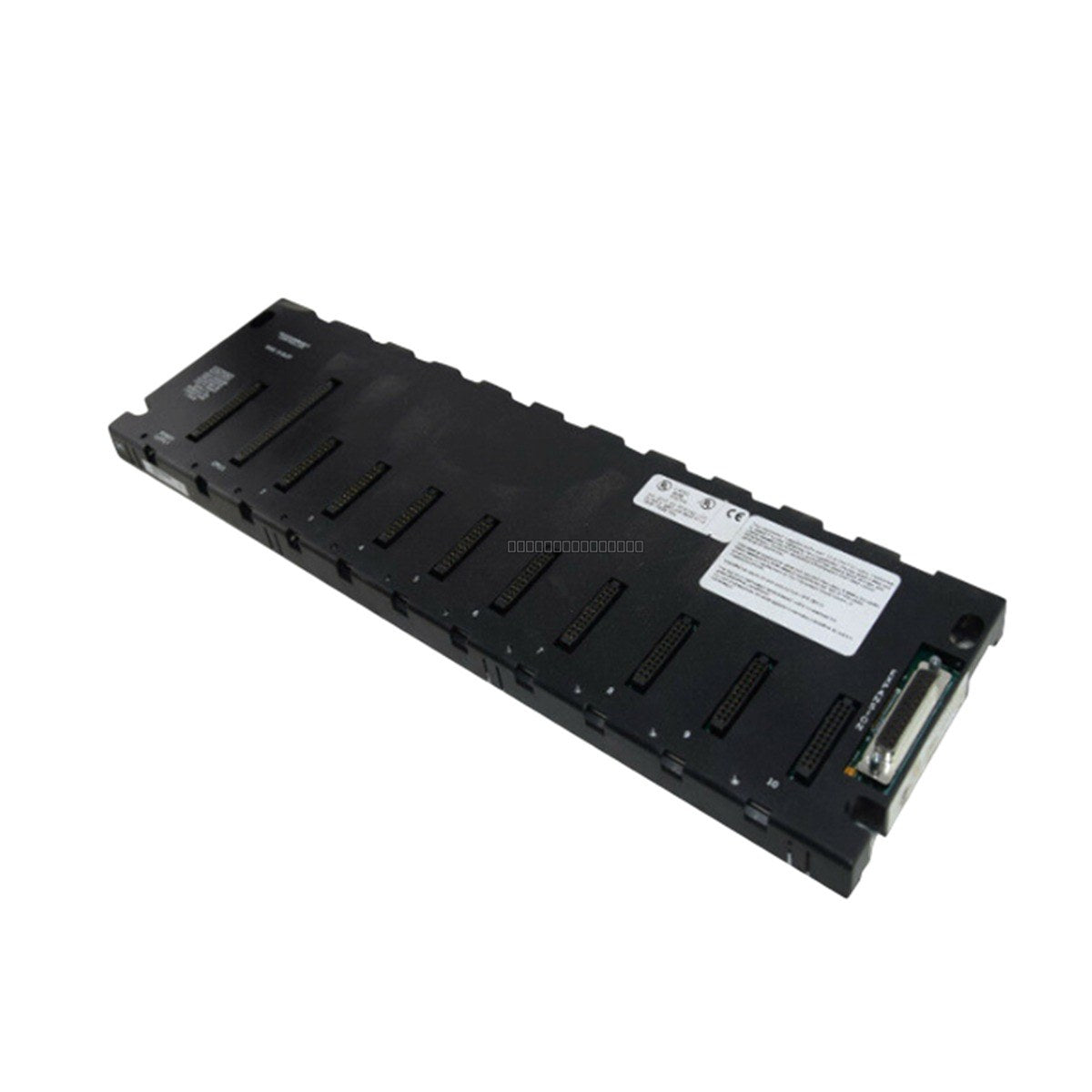

The General Electric IC693CHS391E is a 10-slot modular baseplate designed for the GE Fanuc Series 90-30 PLC system. This expansion baseplate provides the necessary physical mounting and electrical backplane connectivity for a CPU module and various I/O or specialty modules, facilitating scalable automation configurations.
Features
Ten (10) total slots for system configuration.
Dedicated slot for one (1) CPU or specialty module (Slot 1).
Nine (9) dedicated slots for I/O or option modules (Slots 2-10).
Integrated power supply module slot.
25-pin female connector for system communication.
Supports PCI card connectivity.
Technical Specifications
Model
IC693CHS391E
Series
Series 90-30
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Option Slots
9 (Slots 2-10)
Voltage
5V DC
Current Consumption
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
Mount the baseplate securely on a flat, vibration-resistant surface within the control cabinet.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling.
Use shielded cables for I/O connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the baseplate to the cabinet ground bus to prevent electrical noise and potential damage to sensitive components.
Handle modules using ESD-safe practices to prevent damage to internal circuitry.
FAQ
What is the primary function of the IC693CHS391E?
The IC693CHS391E serves as the primary mounting and communication backplane for the GE Series 90-30 PLC, allowing the CPU to interface with up to nine additional I/O or specialty modules.
Can this baseplate be used for expansion?
Yes, this unit is designed as a modular baseplate that supports the expansion of the Series 90-30 system architecture, provided the power supply capacity is sufficient for the total module load.
