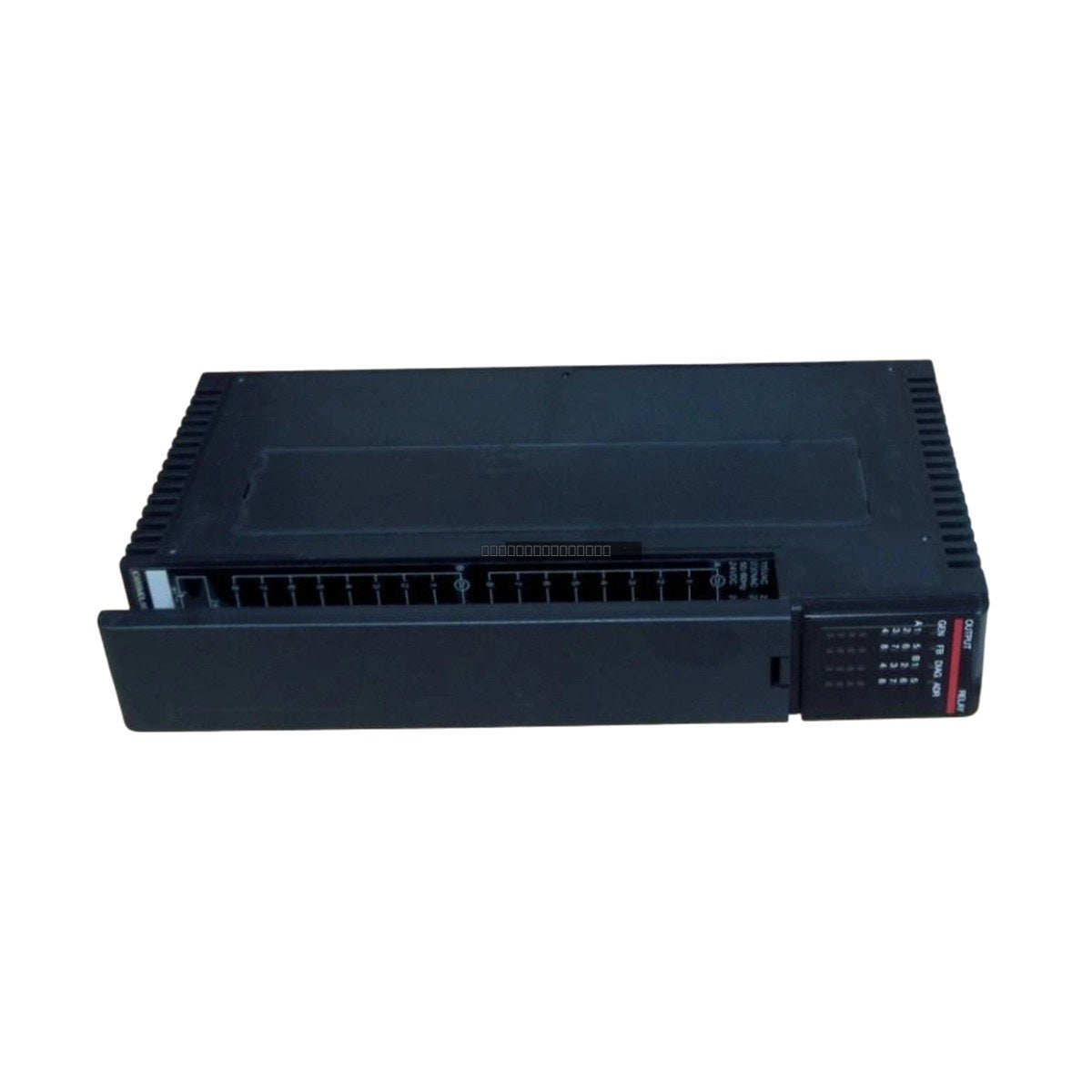

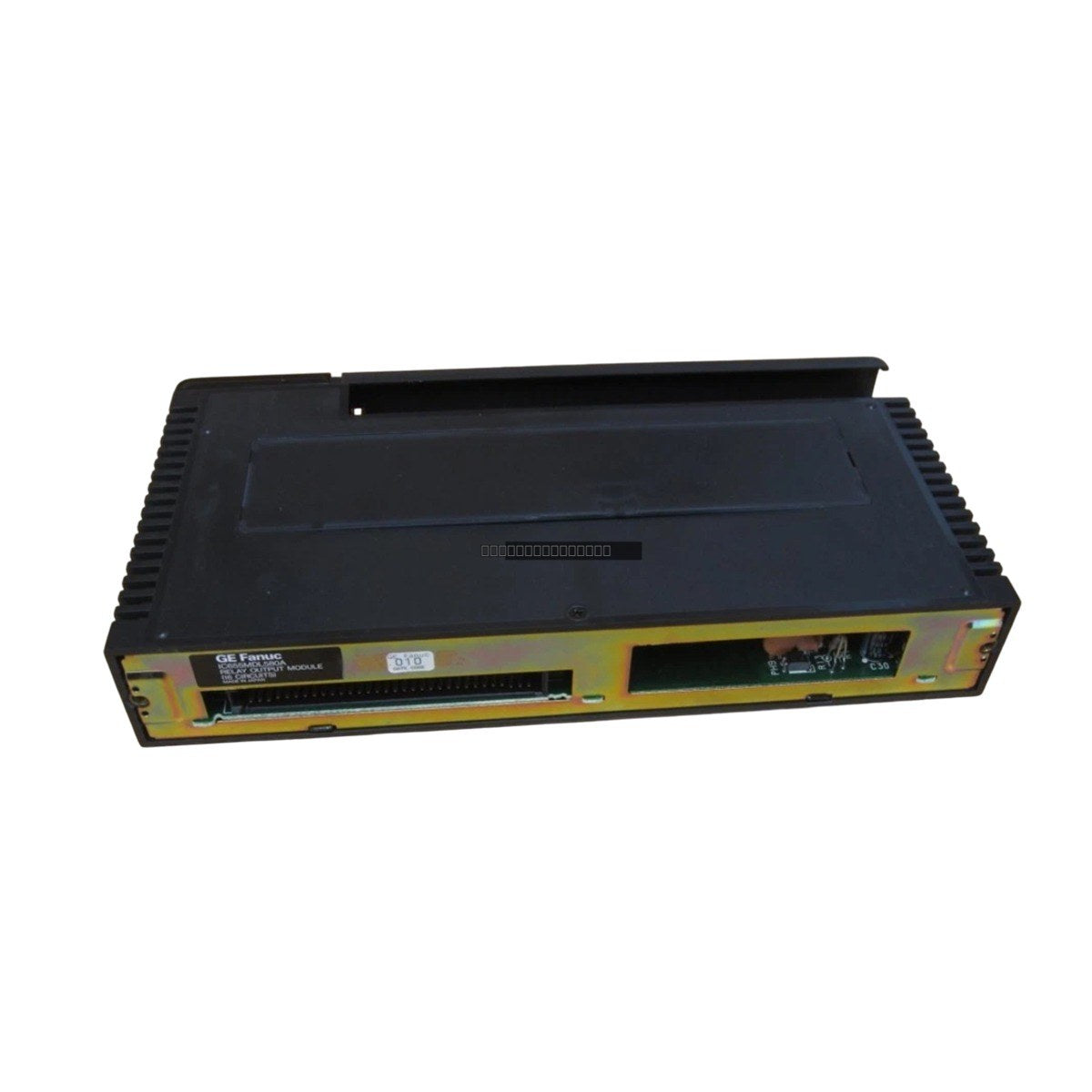

The IC655MDL580A is a Versamax series relay output module manufactured by General Electric (GE Fanuc). This module provides 16 discrete output points, designed for reliable switching of field devices in industrial control applications. Each output point is equipped with an individual LED indicator to provide real-time status monitoring of the output state.
Features
16 Normally Open (N.O.) relay output points.
Individual LED status indicators for each output channel.
Integrated 20-point terminal block for secure field wiring.
Designed for integration within the Versamax I/O system architecture.
Keying positions set to A3 and B1 to ensure correct module placement.
Technical Specifications
Model Number
IC655MDL580A
Output Type
Relay (Normally Open)
Number of Outputs
16
Rated Current
2 Amps (Resistive)
Typical Supply Current
152 mA
Maximum Supply Current
180 mA
Terminal Block
20-Point
Keying Positions
A3 and B1
Installation Guidelines
Ensure the PLC system power is disconnected before installing or removing the module from the backplane.
Verify that the module keying (A3 and B1) matches the intended slot configuration to prevent improper insertion.
Use appropriate wire gauges for the 20-point terminal block to ensure secure connections and prevent overheating.
Maintain proper grounding practices to minimize electrical noise interference in the control cabinet.
Ensure adequate ventilation within the enclosure to maintain operating temperatures within the manufacturer's specified limits.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
FAQ
What type of outputs does the IC655MDL580A provide?
This module features 16 relay outputs, all of which are configured as Normally Open (N.O.).
What is the current rating for the relay outputs?
The relay outputs are rated for 2 Amps under resistive load conditions.
How do I monitor the status of the outputs?
The module includes 16 individual LED indicators, with one LED assigned to each output point for immediate visual status feedback.
