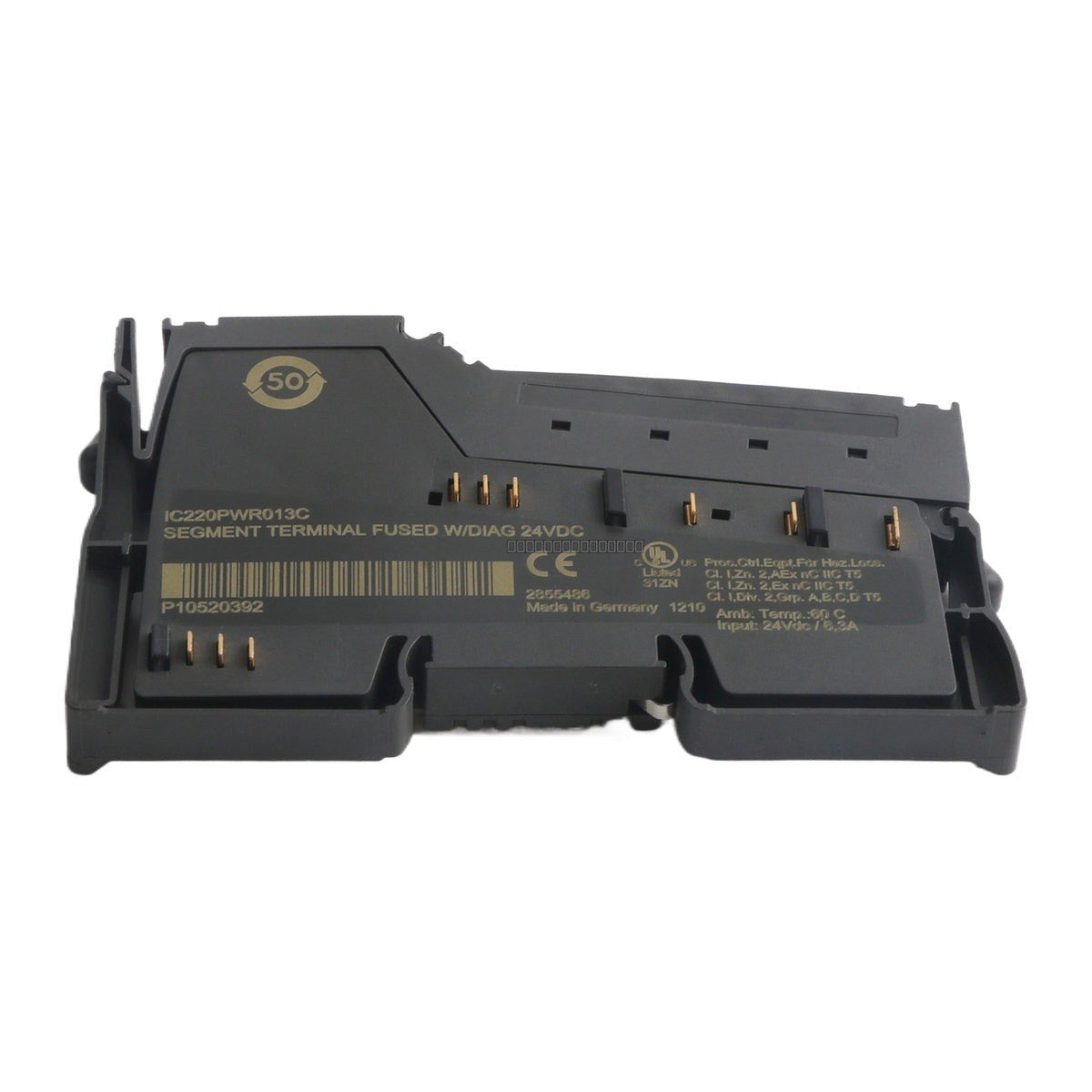

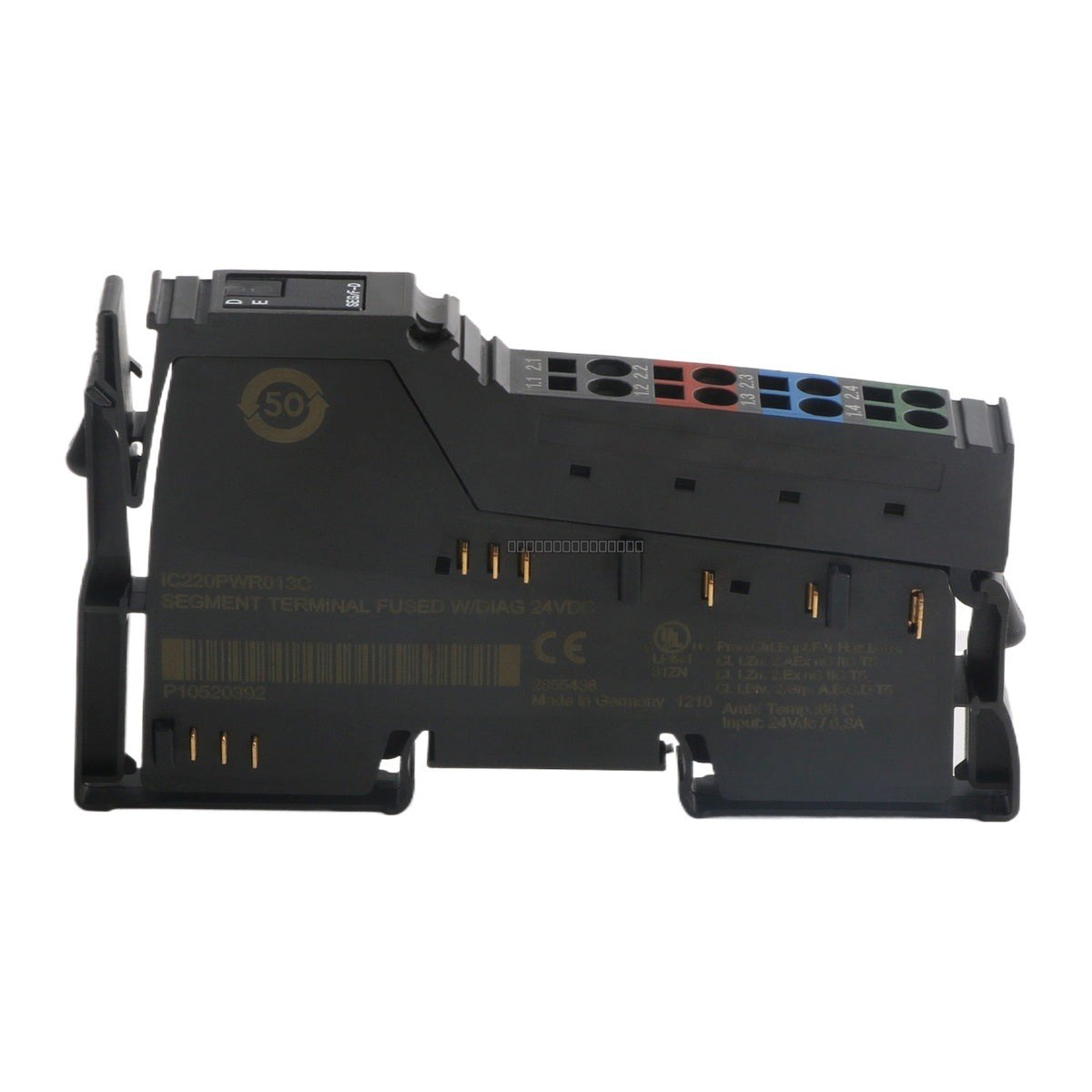

The General Electric IC220PWR013 is a VersaPoint segment terminal designed for industrial control applications. This module provides power distribution and monitoring capabilities within a VersaPoint I/O system. It features integrated fusing and diagnostic functions to ensure system reliability and protection of the connected I/O segments. This unit operates on a 24 VDC power supply and supports a current rating of 6.3 Amps.
Features
Integrated fused protection for I/O segments
Built-in diagnostic capabilities for status monitoring
Designed for the VersaPoint I/O product family
Compact form factor for high-density DIN-rail mounting
Requires IC220TBK087 terminal block for field wiring connections
Technical Specifications
Model Number
IC220PWR013
Manufacturer
General Electric
Product Type
Segment Terminal
Supply Voltage
24 VDC
Current Rating
6.3 Amps
Compatibility
VersaPoint Series
Required Accessory
IC220TBK087
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the terminal module to prevent electrical damage.
Mount the module securely on a standard DIN-rail within the control cabinet.
Ensure proper grounding practices are followed to minimize electromagnetic interference (EMI).
Use the required IC220TBK087 terminal block for all field wiring connections.
Maintain adequate ventilation around the module to prevent overheating during operation.
Handle with care to prevent electrostatic discharge (ESD) damage to internal components.
FAQ
Is the IC220PWR013 still in production? No, this model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy systems.
What is required to connect this module? This segment terminal requires the IC220TBK087 terminal block for field wiring.
What is the primary function of this module? The IC220PWR013 acts as a power distribution point for VersaPoint I/O systems, providing both electrical power and diagnostic feedback for the segment.
