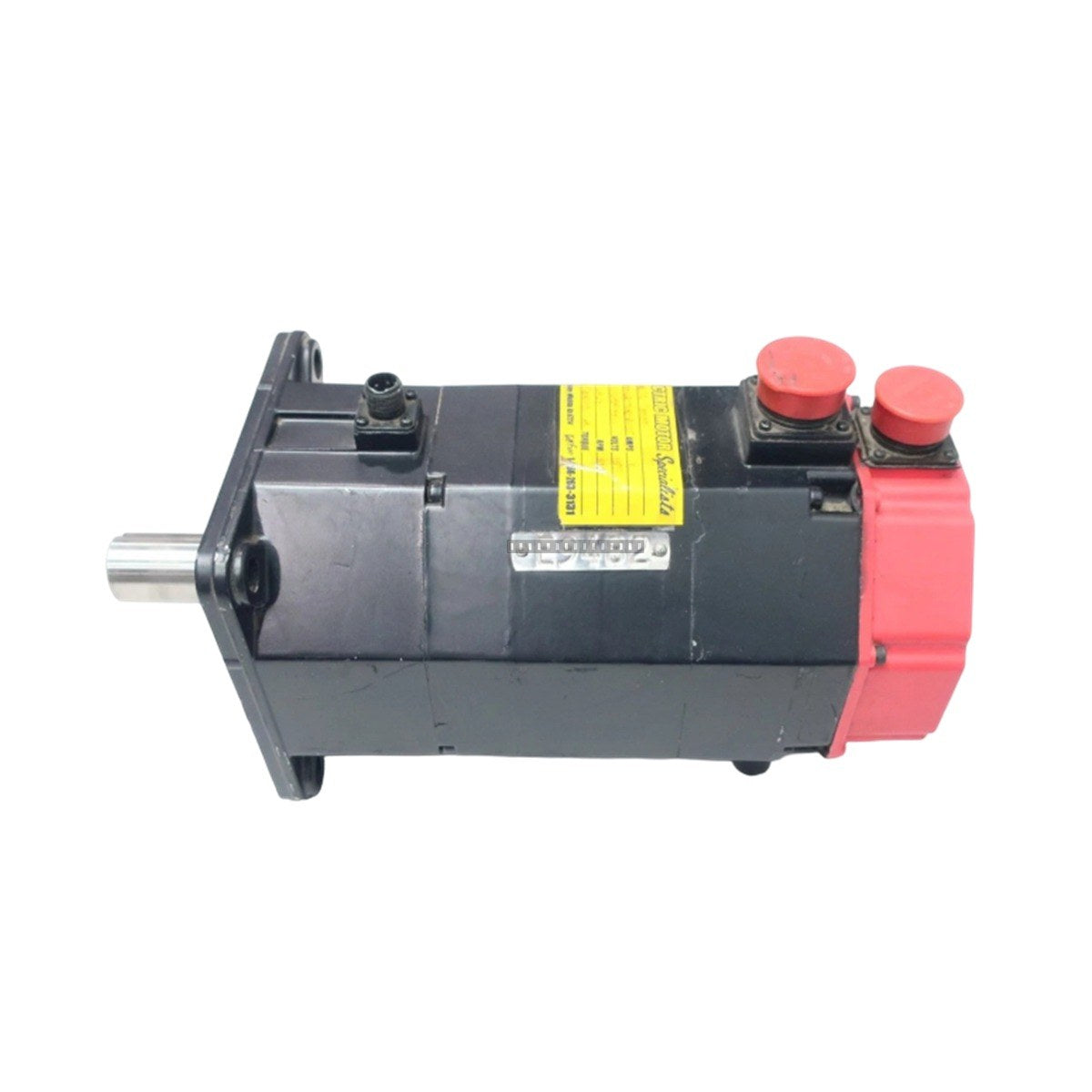

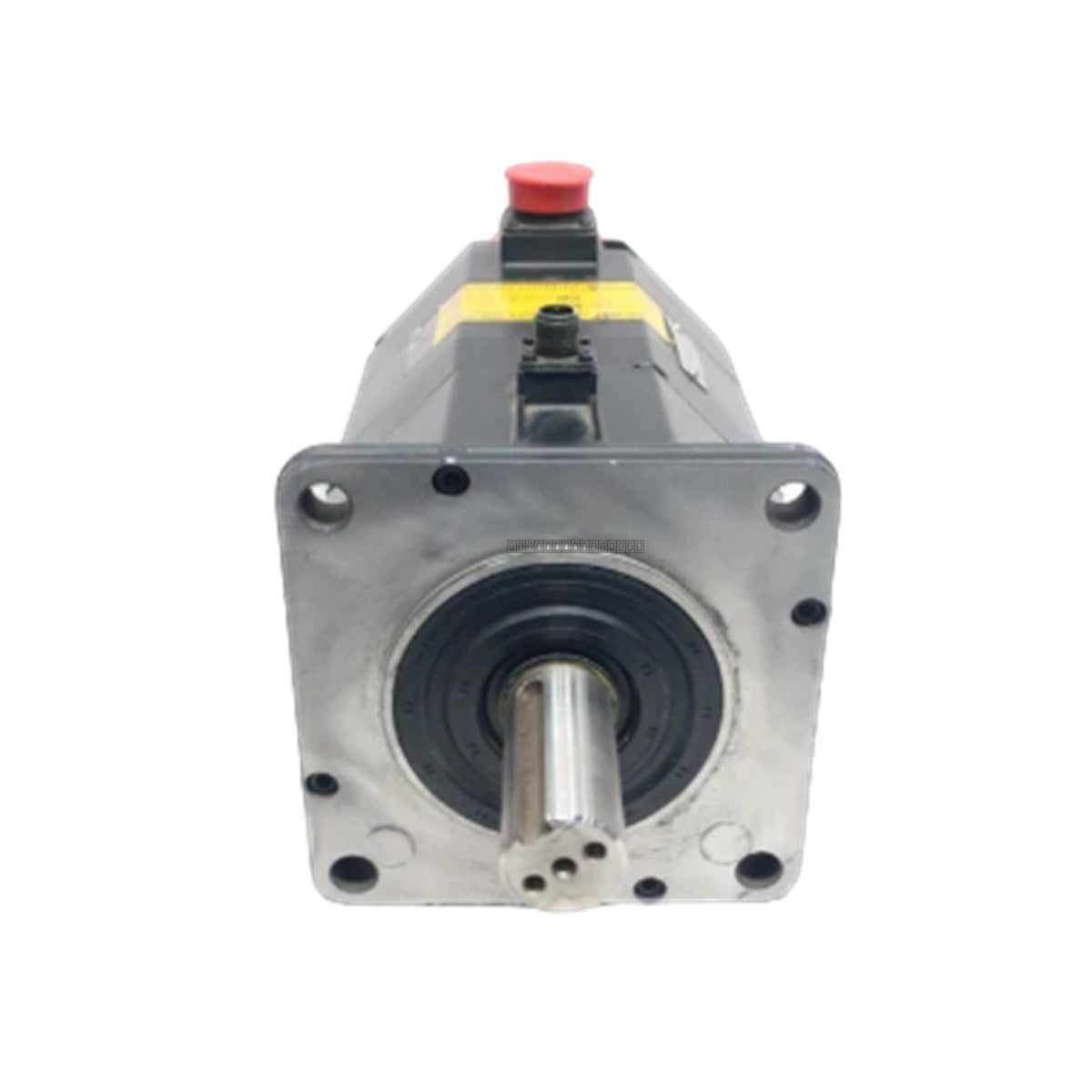

The General Electric A06B-0143-B175 is a high-performance AC servo motor designed for precision motion control in CNC machinery. This unit, part of the A12/3000 series, features an integrated brake and a straight shaft configuration, providing reliable torque and positioning accuracy for demanding industrial automation applications.
Features
Integrated brake for secure holding and emergency stopping
Straight shaft design for standard mechanical coupling
Rated for 2.8 kW power output
Optimized for 3000 RPM operation
Robust 3-phase AC design
Applications
This servo motor is primarily utilized in CNC machine tools, robotic systems, and automated manufacturing lines requiring high-speed, high-precision rotational control.
Technical Specifications
Model
A06B-0143-B175
Rated Voltage
155 V
Rated Current
12 A (rms)
Max Current
20 A (rms)
Rated Power
2.8 kW
Rated Speed
3000 RPM
Frequency
200 Hz
Power Factor
0.95
Operating Temperature
0 degC to +40 degC
Storage Temperature
-20 degC to +85 degC
Humidity
20 to 90 % RH (non-condensing)
Installation Guidelines
Ensure the motor is mounted on a rigid, vibration-free surface to prevent mechanical resonance.
Verify that the shaft alignment is precise to avoid excessive radial or axial load on the bearings.
Use shielded cables for power and encoder connections to minimize electromagnetic interference (EMI).
Ensure adequate ventilation around the motor housing to maintain operating temperatures within the specified 0 to 40 degC range.
Always disconnect power before performing any wiring, inspection, or maintenance on the motor or its drive interface.
Confirm that the grounding path is secure and follows local electrical safety standards to prevent ground loops.
FAQ
What is the primary function of the A06B-0143-B175?
This is an AC servo motor used for precise motion control in CNC systems, capable of delivering 2.8 kW of power at 3000 RPM.
Does this motor include a brake?
Yes, this model (A06B-0143-B175) is equipped with an integrated brake for holding applications.
What are the environmental requirements for this motor?
The motor should be operated in an ambient temperature range of 0 degC to 40 degC with a non-condensing humidity level between 20% and 90%.
