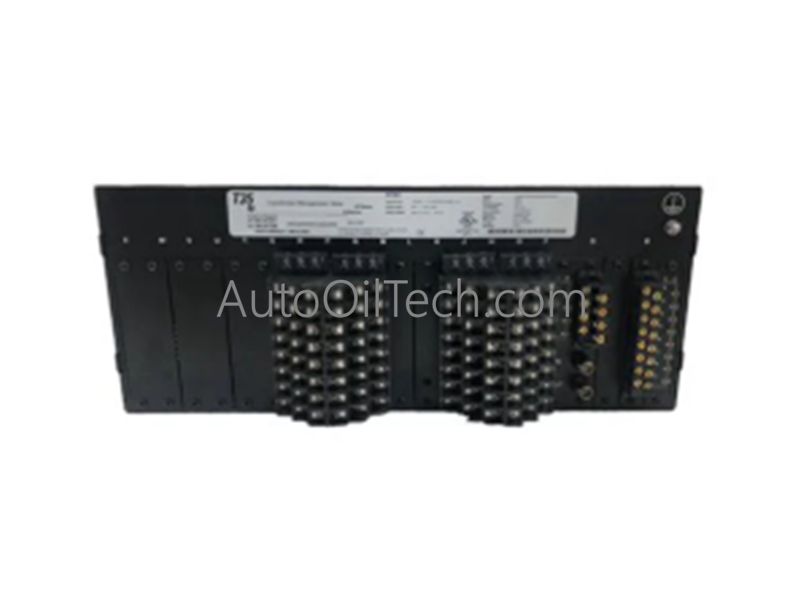

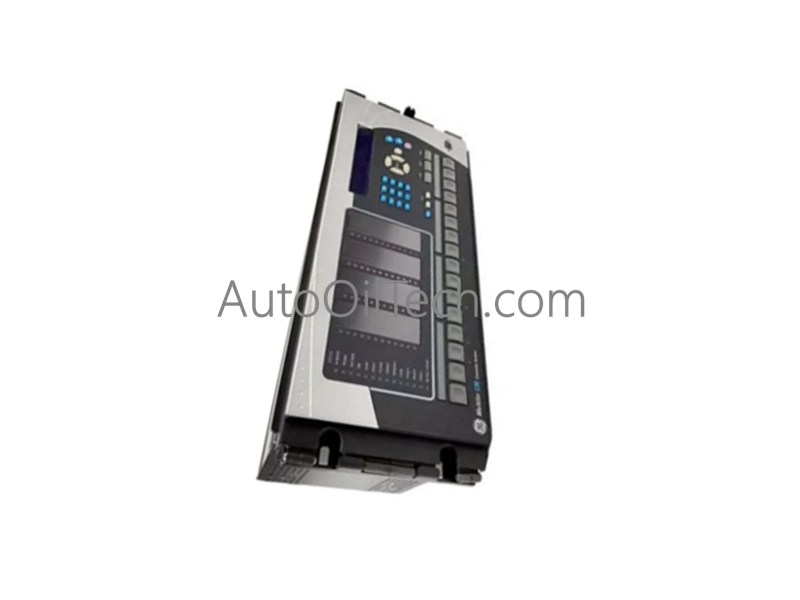

GE Fanuc C30 Controller System
No reviews
In stock!
- Part Number: C30
- Brand: GE Fanuc
- Type: Controller System
- Dimensions: 2.1x18.6x26.3cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
Product Description
The GE Multilin C30, also cataloged as the C30 Controller System, operates as a dedicated hardware component for substation bay automation and programmable logic execution within electrical power distribution networks. The modular hardware platform provides deterministic processing arrays to scale I/O capabilities, coordinate field interlocks, and replace legacy Sequence of Events (SOE) recorders across automated switchgear installations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | C30 |
| Brand | GE Multilin (General Electric) |
| Series | UR (Universal Relay) Series |
| Origin | Canada / United States |
| Weight | Standard UR series horizontal 19-inch rack-mount profile |
| Dimensions | 4U standard chassis envelope configuration |
| Operating Temp | Standard substation environmental limits |
| Power Consumption | Sourced via internal UR modular power supply options |
| Logic Scan Velocity | 2 ms deterministic execution loop time |
| Data Capture Function | High-density Sequence of Events (SOE) tracking |
| Network Interfaces | Redundant fiber optic or copper Ethernet ports, serial interfaces |
| Industrial Protocols | IEC 61850 Ed. 1 / Ed. 2, R-GOOSE, Modbus-RTU, TCP/IP |
| Security Integration | CyberSentry cyber security protection subsystem |
| Local Interface | Integrated full-color display with bay mimic and annunciator panel |
Profinet / EtherNet/IP Deterministic Networks and Process Bus Redundancy
The controller platform integrates high-density processing components to achieve a 2 ms deterministic logic execution speed, matching the strict timing limits needed for complex bay interlocking and wide-area control. This fast execution speed relies on robust firmware flash compatibility standards across the backplane bus, allowing the system to handle thousands of status changes simultaneously without processing jitter. High-speed Routable GOOSE (R-GOOSE) protocols send binary control packets beyond the local area network, while full IEC 61850 Ed. 1 and Ed. 2 compatibility enables complete configuration using standard SCL files to maximize network uptime.
Frequently Asked Questions
Q: How does the C30 handle Sequence of Events (SOE) tracking compared to standalone hardware recorders?
A: The C30 internal processing core executes high-speed digital input scanning with sub-millisecond time-stamping accuracy. This eliminates the need for standalone SOE hardware by logging state transitions directly into non-volatile memory registers that can be polled via station communication networks.
Q: Can the C30 be used to expand the physical I/O layout of existing Universal Relay (UR) protection systems?
A: Yes. The modular design allows custom configurations using high-density digital and analog I/O cards. Operating over peer-to-peer Ethernet connections using GOOSE messaging, the C30 acts as an integrated I/O expansion node for adjacent UR series protection devices.
