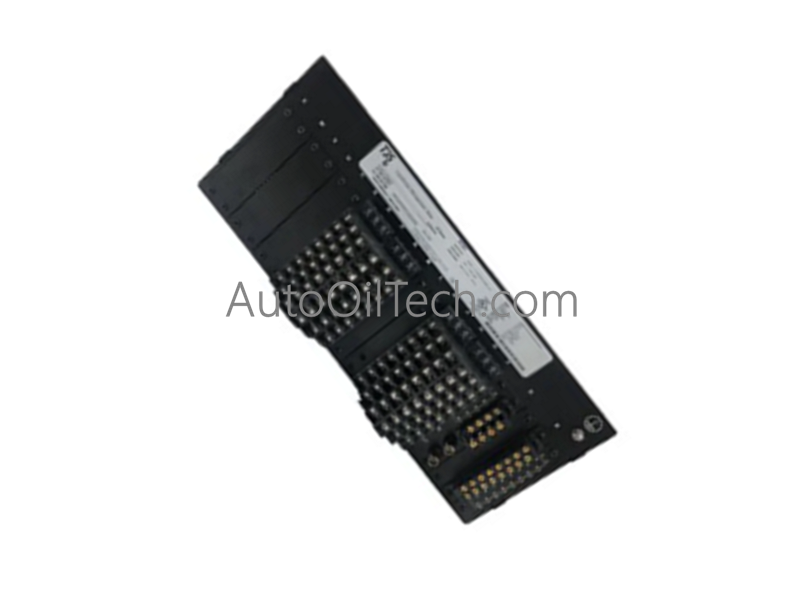

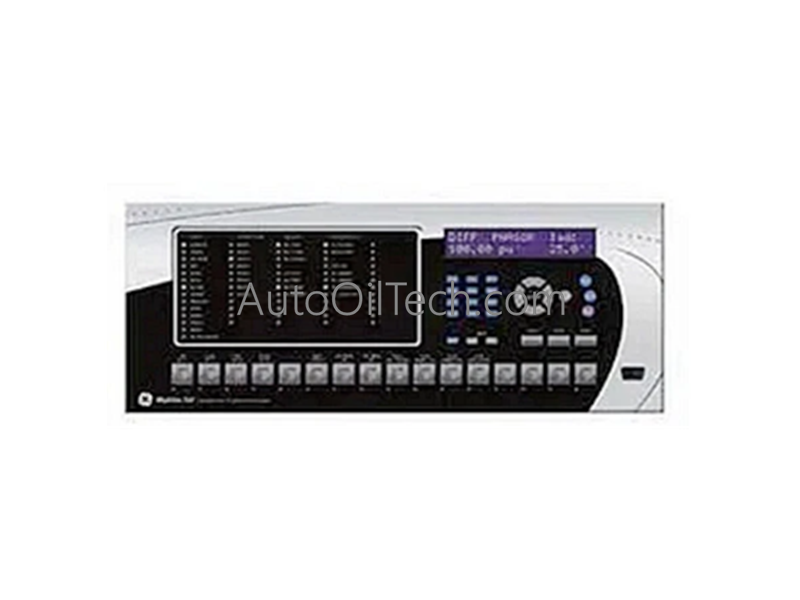

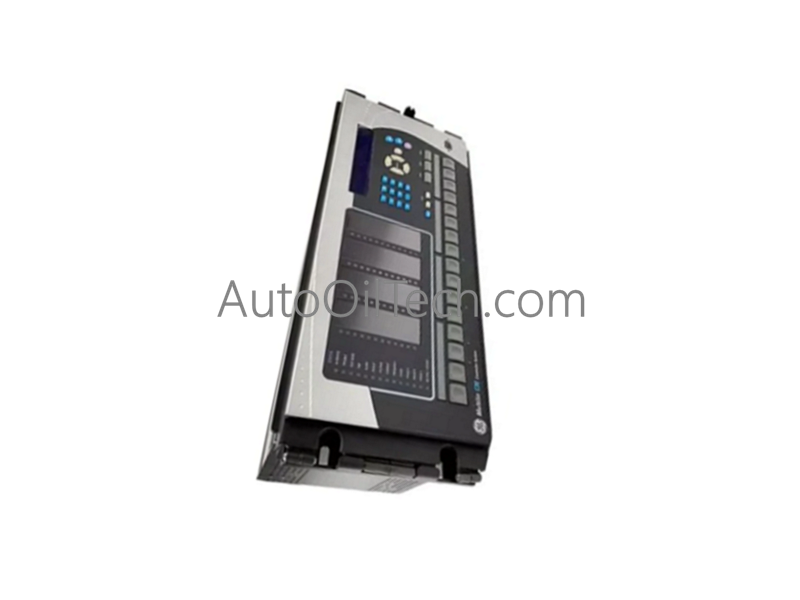

GE F35E00VFHF8FH6TM6TPXX Protective Relays

The GE Multilin F35E00VFHF8FH6TM6TPXX, operating as a core element of the UR (Universal Relay) family, is a highly specialized hardware component engineered for multi-feeder management, algorithmic circuit breaker monitoring, and power quality diagnostic calculation within heavy industrial and utility power infrastructure.

Hardware Specifications

Industrial Control and Networks

• Backplane Bus Communication Velocity: The universal relay engine routes instantaneous current and voltage wave samples across a high-speed parallel digital backplane bus. This allows internal mathematical algorithms to continuously compute protection vectors without phase lag, executing high-speed breaker trip contacts within milliseconds of a calculated line deviation.
• I/O Density Scaling: The F35 platform incorporates modular input and output cards, enabling a dense mixture of current transformer (CT) links, potential transformer (PT) voltage inputs, and programmable digital contacts. This configuration collapses multiple discrete protection disks into one front-panel cutout, reducing wireway density.
• Firmware Flash Compatibility: Core inverse-time tripping curves, substation automation node addresses, and Modbus memory maps reside in non-volatile flash memory sectors. The internal firmware revision must align with the active EnerVista software baseline exactly to prevent file transfer blocks or synchronization faults during active configuration downloads.

Frequently Asked Questions

Q: How does the power supply unit on the F35E00VFHF8FH6TM6TPXX handle broad fluctuations in incoming auxiliary voltage?

A: The module is equipped with a wide-range switching mode power supply (SMPS) designed to bridge large voltage variations. Whether the input shifts between a lower DC threshold (24 VDC) or a high AC limit (240 VAC), internal regulating loops stabilize the output voltage to the internal logic blocks, ensuring continuous protection during utility sags or sudden battery system drops.

Q: What are the engineering consequences to the station network if the local IEC 61850 protocol mapping contains mismatched dataset descriptions?

A: Mismatched dataset parameters will cause GOOSE communication blocks or failures in reporting states to the upper-level SCADA system. While the internal relay protection functions remain fully operational and continue to trip on local overcurrent events, the automation layer will lose deterministic synchronization with adjacent bay devices, disabling peer-to-peer interlocking schemes.
