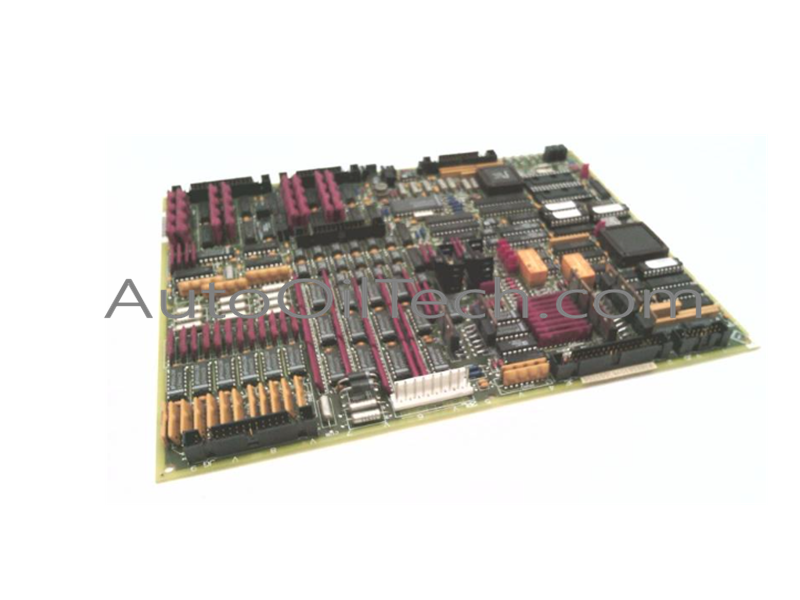

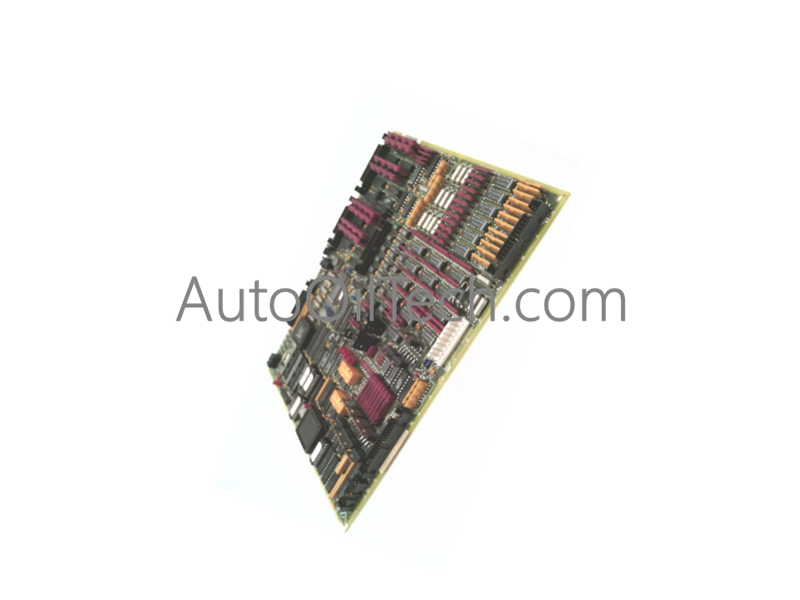

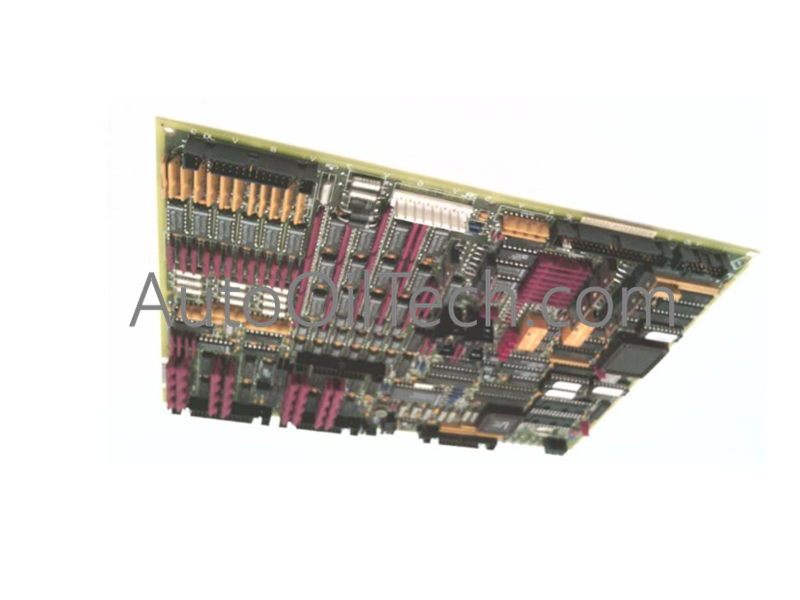

GE DS200TCQFG1A Mark V PC Board

In stock!
  • Part Number: DS200TCQFG1A
  • Brand: General Electric
  • Type: Communication Modules
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: Communication Modules , General Electric Mark V , PC Board

Product Description

Configured for analog I/O extension and signal routing in EX2000 and Mark V drive networks, the General Electric DS200TCQFG1A (DS200TCQFG1A TC2000 Analog I/O Extender Card) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model DS200TCQFG1A
Brand General Electric
Origin Salem, Virginia, USA
Weight Standard component weight
Dimensions Standard EX2000 / Mark V card form factor
Operating Temp Standard industrial cabinet range
Power Consumption Backplane-supplied low voltage logic power
Board Type TC2000 Analog I/O Extender Card (Revision A, Normal Coating)
Onboard Elements 7 jumpers, 2 50-pin connectors (JUU, JB), 1 34-pin connector (JA), 1 9-pin connector, soldered relays, 6 green status LEDs, EPROM module

4-20 mA HART Loop Protocol, Channel Isolation, and Analog Signal Extension

The analog I/O extender board processes multi-channel analog variables and feedback signals through dedicated circuit paths, maintaining signal fidelity across the drive backplane. Channel isolation protects internal control logic from external transient voltages and ground loops. The onboard programmable logic device utilizes firmware stored on the EPROM module to execute high-speed analog processing and relay switching without data degradation.

Frequently Asked Questions

Q: Are the onboard relays on the DS200TCQFG1A board removable or field-replaceable?

A: No. The relays are soldered directly to the board with wire leads and cannot be removed or reconfigured in the field.

Q: What do the six green LEDs on the board indicate during operation?

A: When lit solidly, they indicate that the corresponding circuit or function is receiving current and operating normally; flashing LEDs denote active normal processing.

Q: Can this printed circuit board be installed or replaced while the drive system is powered on?

A: No. All input and output power sources to the drive assembly must be completely shut off and isolated before handling the board to prevent electrical shock.

Field Installation Guidelines

  1. Ensure all system power feeds and external circuit inputs to the drive assembly are fully isolated, locked out, and verified de-energized.
  2. Wear an ESD-preventive ground strap securely connected to the cabinet chassis throughout the handling and installation process.
  3. Slide the DS200TCQFG1A board smoothly into the designated guide rails, ensuring firm engagement with the internal backplane connectors.
  4. Verify proper seating of all cable connectors (including JA, JUU, and JB) and check diagnostic LED indicators upon system re-energization.
