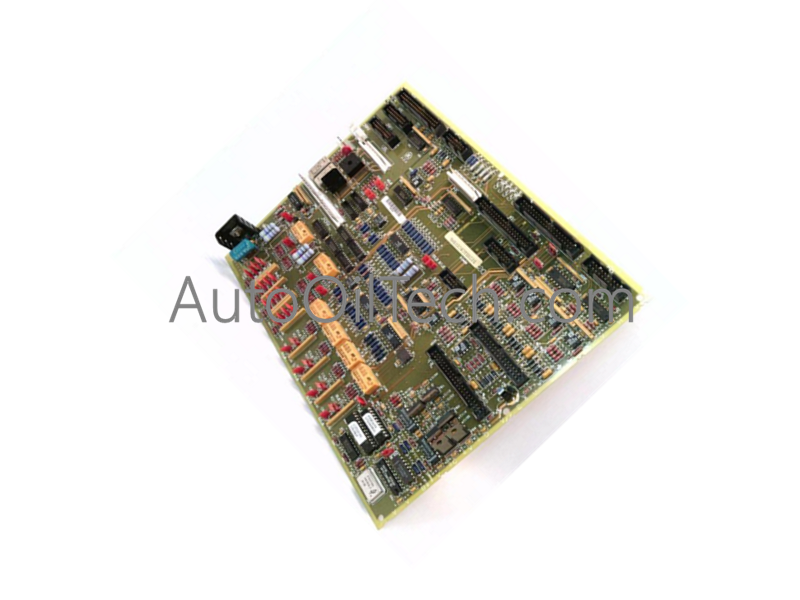

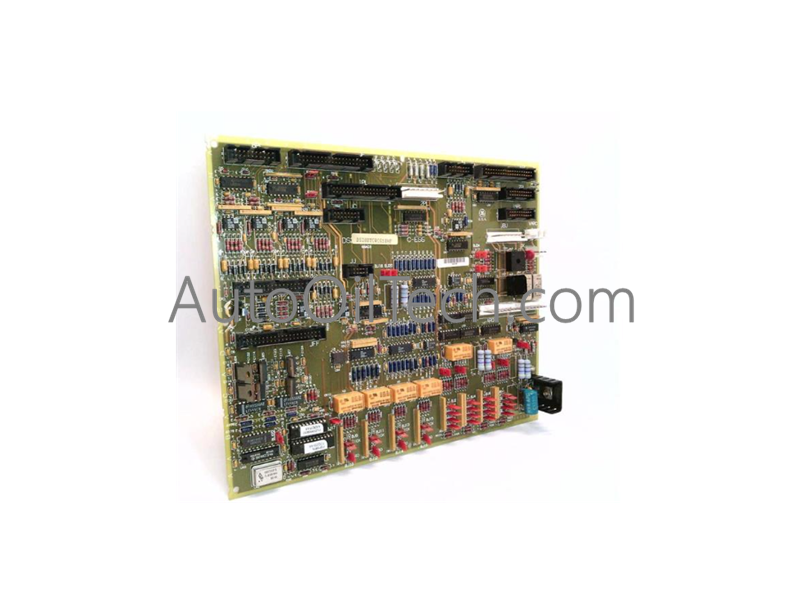

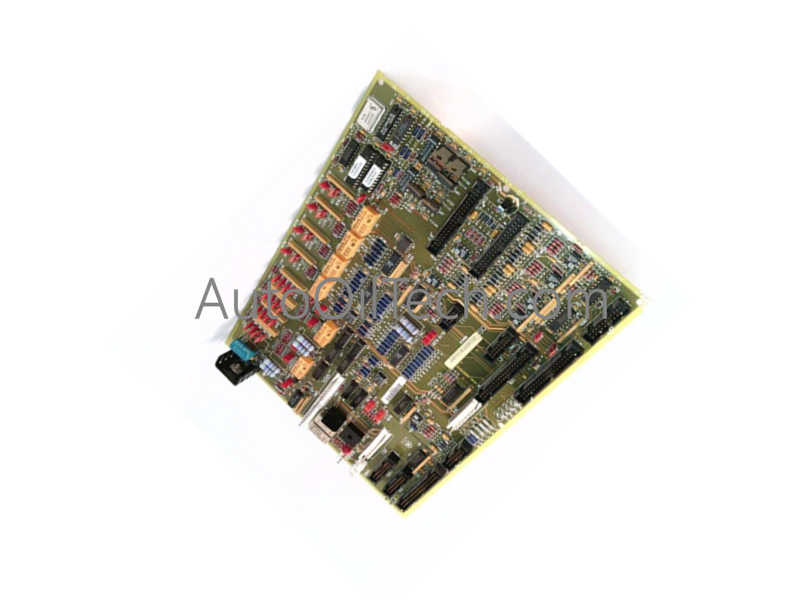

GE DS200TCQCG1BHF PC Board

The GE DS200TCQCG1BHF, also cataloged as the DS200TCQCG1BHF PC Board, operates as a dedicated hardware component for configuration and process signaling tasks within Mark V and EX2000 control systems.

Hardware Specifications

Backplane Bus Communication and Drive Diagnostics

• BACKPLANE BUS VELOCITY LICENSES: The board interfaces directly with the proprietary control core backplane, enabling high-velocity deterministic data transfer between the main processor and secondary I/O layers without communication bottlenecking.
• FIRMWARE FLASH COMPATIBILITY: The hardware revision matrix designated by the BHF suffix ensures specific EEPROM firmware flash compatibility, preventing configuration mismatch errors during runtime initialization within the drive control loop.
• ACTUATOR LOOP FEEDBACK RESPONSE: Integrated circuit pathways optimize transient signal stability, executing rapid updates to actuator loop feedback structures and system reset commands when an overflow condition is flagged.

Frequently Asked Questions

Q: What does the BHF suffix signify on this specific board assembly?

A: The BHF suffix denotes the specific hardware revision level, component composition, and factory firmware flash compatibility profile. Replacing an older board requires verifying that the system configuration files support this exact revision matrix to prevent boot faults.

Q: Is this board hot-swappable during active machine control operation?

A: No. The backplane power must be completely isolated and de-energized before removing or installing the board to avoid damaging the integrated circuit chips or causing data corruption across the deterministic network.

Field Installation Guidelines

• Electrostatic Discharge (ESD) Protection: Technicians must wear a properly grounded ESD wrist strap connected to the chassis frame before handling the board to prevent latent damage to the sensitive CMOS components.
• Chassis and Shield Grounding: Secure all mounting screws firmly into the metal standoffs of the chassis frame to ensure a low-impedance common ground reference across the control board assembly.
• Clearance and Thermal Profiles: Verify that the board is cleanly seated into its edge connectors without bowing, maintaining adequate spacing from neighboring modules to permit unhindered vertical convection cooling.
