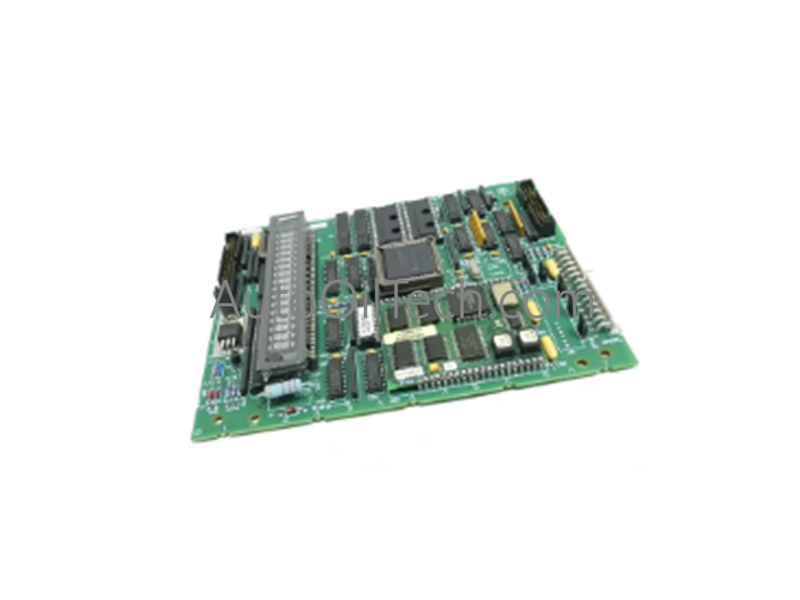

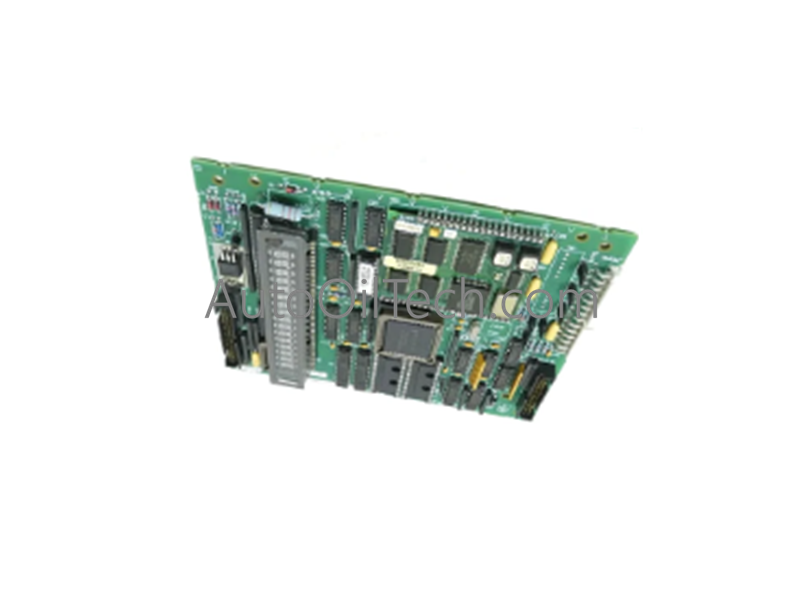

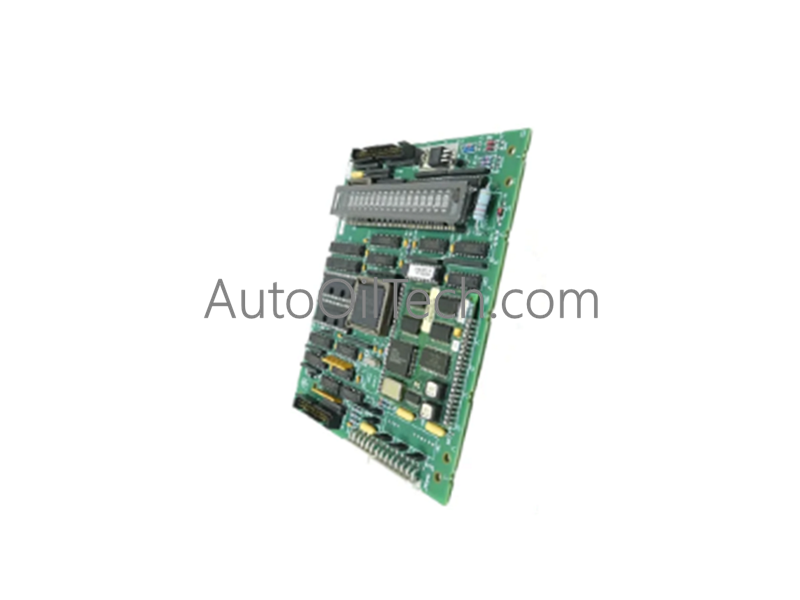

GE DS200TCQCG1BGK Mark V Board

The General Electric DS200TCQCG1BGK, also cataloged as the DS200TCQC Analog I/O Expander Board, operates as a dedicated hardware component for conditioning and scaling auxiliary analog signals within Mark V Speedtronic systems platforms.

Hardware Specifications

Firmware Flash and I/O Density Scaling

• FIRMWARE FLASH COMPATIBILITY: The specific "BGK" suffix revision indicates the exact component configuration and integrated EEPROM firmware flash compatibility. This ensures direct architectural synchronicity with the main STCA core processor board during initialization sequences.
• I/O DENSITY SCALING: The board implements direct signal conditioning pathways to scale auxiliary analog inputs, including liquid fuel flow signals, high-pressure shaft speed pulse rates, and megawatt transducer currents, before routing data via the internal 19PL bus.
• VOLTAGE BIAS AND FEEDBACK CONFIGURATION: Hardware jumpers are embedded to configure servo output current ranges and feedback options, providing signal adaptation for diverse hydraulic actuator loops.

Frequently Asked Questions

Q: How are the output current ranges adjusted for the servo loops on this board?

A: The onboard hardware jumpers (BJ1 through BJ16, and BJ25 through BJ36) must be physically positioned to configure the specific output current scaling and source resistance required by the field servo valve.

Q: Is online hot-swapping supported for the DS200TCQC module?

A: No. The rack power supply must be completely isolated and shut down before board insertion or extraction to prevent voltage transients from damaging logic components or breaking the active IONET communication link.

Field Installation Guidelines

• Electrostatic Management: Technicians must use a verified, grounded ESD wrist strap when handling the printed circuit board assembly to prevent structural degradation of the CMOS elements.
• Shield Grounding Protocol: Terminate all field sensor shield wires at the dedicated terminal board ground bar. Ensure a single-point grounding layout to suppress electrical cross-talk and high-frequency noise infiltration on the analog loops.
• Chassis Mechanical Alignment: Align the board precisely with the card guide rails inside the core enclosure. Secure all retention fasteners to establish a positive frame ground link via the mounting standoffs.
