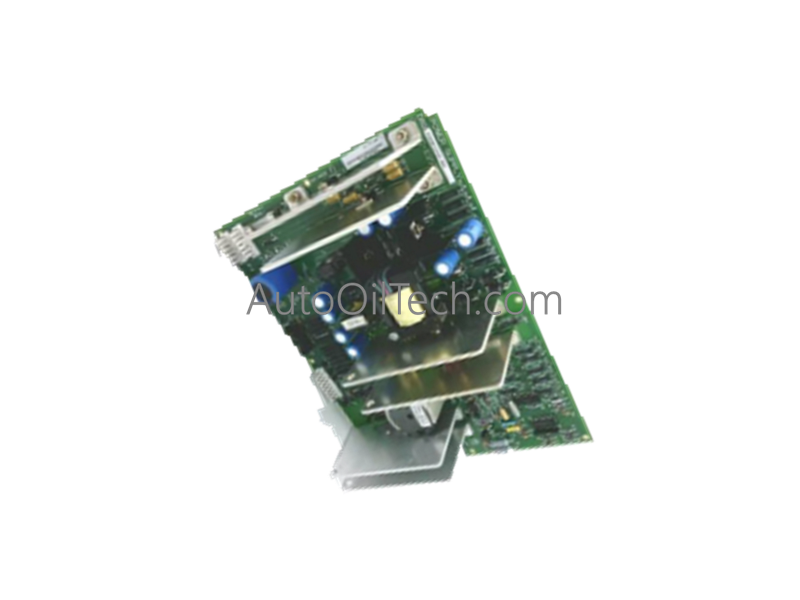

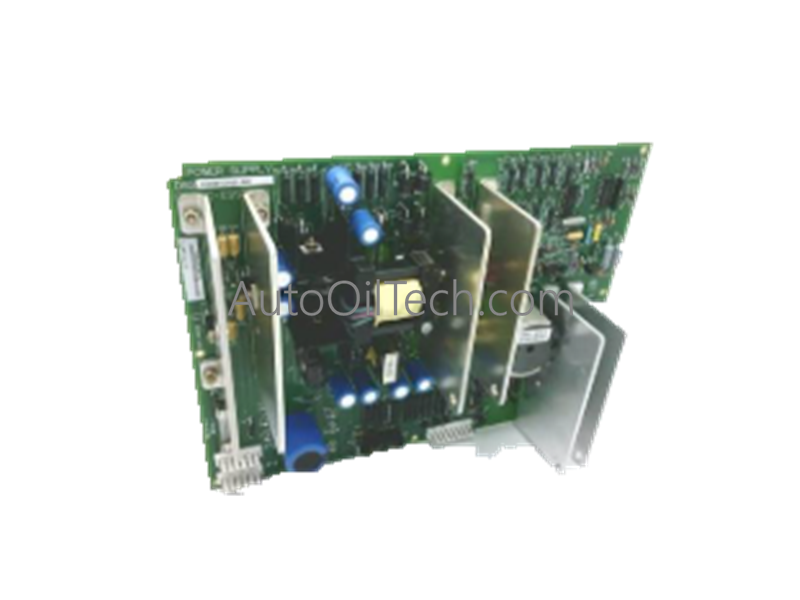

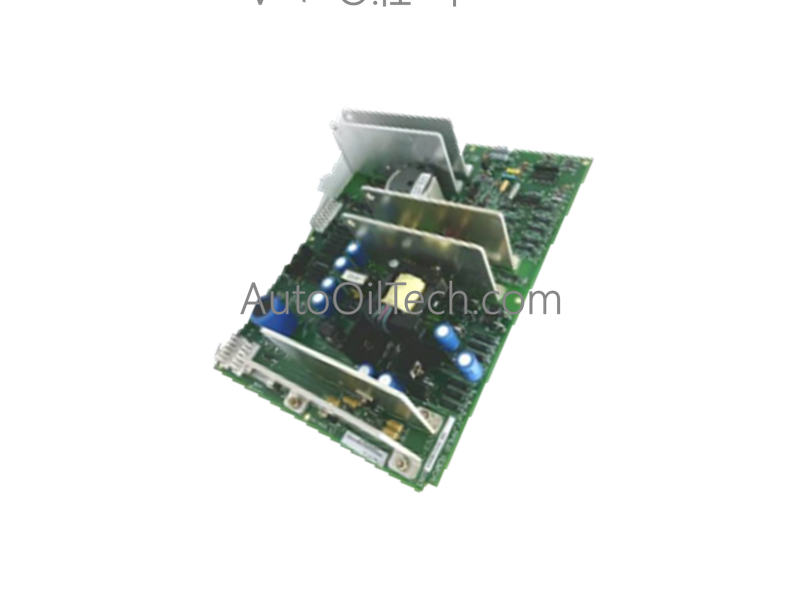

GE DS200TCPSG1ARE DC Input Power Supply Board

Configured for power conditioning in Mark V turbine control architectures, the GE DS200TCPSG1ARE (DS200TCPSG1) Power Supply Board provides direct physical/electrical execution of DC power regulation, circuit protection, and backplane distribution.

Suffix Breakdown & Model Matrix

Hardware Specifications

GE Industrial Control Characteristics

• Backplane bus communication velocity: The board manages raw DC input distribution across the control rack backplane. High-speed stability is mandatory to ensure that internal Mark V logic processors receive consistent voltage levels during turbine operation.
• Profinet / EtherNet/IP deterministic networks: While functioning as a power interface, the board maintains electrical clean-room conditions necessary for the signal integrity of deterministic control network modules residing in the same rack.
• I/O density scaling: The PCB layout accommodates high-density power paths, allowing for centralized DC input management within the Mark V turbine control cabinet.
• Firmware flash compatibility: The DS200TCPSG1ARE is a hardware-based power supply board; it maintains electrical transparency, ensuring full compatibility with all Mark V controller firmware versions without software intervention.

Frequently Asked Questions

Q: Can the DS200TCPSG1ARE board be hot-swapped while the turbine control system is active?

A: No. Hot-swapping is not supported. The cabinet power must be fully isolated before removal or insertion. Attempting to manipulate the board under load will cause severe arcing at the backplane interface and will likely damage the circuit traces or the power supply input stage.

Q: How is circuit protection maintained on the DS200TCPSG1ARE?

A: The board utilizes three replaceable, clamp-secured fuses. These components serve as the primary overcurrent protection. If a fuse is blown, it indicates an upstream or board-level fault; the fault must be identified and corrected before the fuse is replaced to prevent recurring damage.

Field Installation Guidelines

• Mounting: Secure the PCB into the Mark V rack using the designated mounting points. Ensure that all clamping hardware is tightened correctly to maintain low-impedance electrical paths for the DC power input circuits.
• Grounding: Verify that the board chassis is properly referenced to the cabinet’s safety earth. A low-impedance grounding path is mandatory to effectively shunt high-voltage transients and protect the internal sensitive circuitry from surge damage.
• Wiring: Connect power inputs via the 16-pin and 9-pin headers. Maintain a minimum separation of 150 mm between these power paths and any low-level analog signal wiring. This isolation is mandatory to prevent electromagnetic coupling, which is critical for preventing power supply noise from corrupting control signals.
