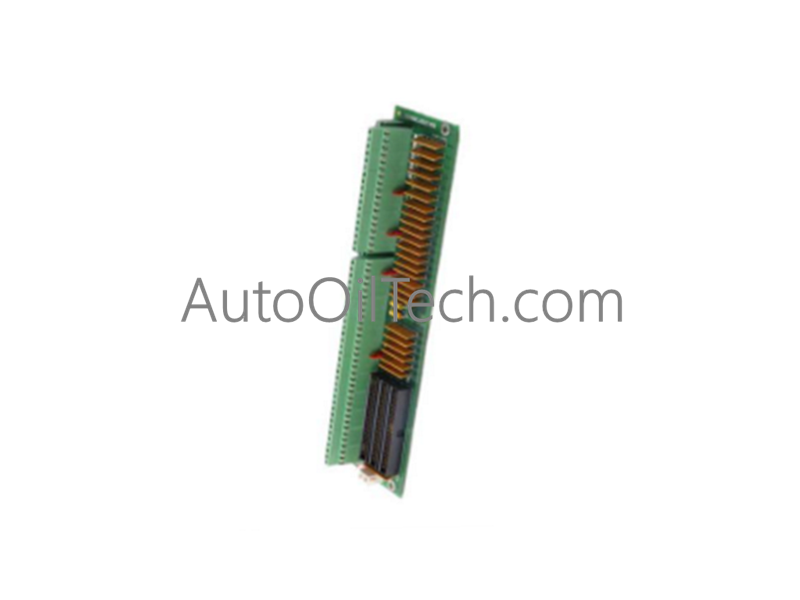

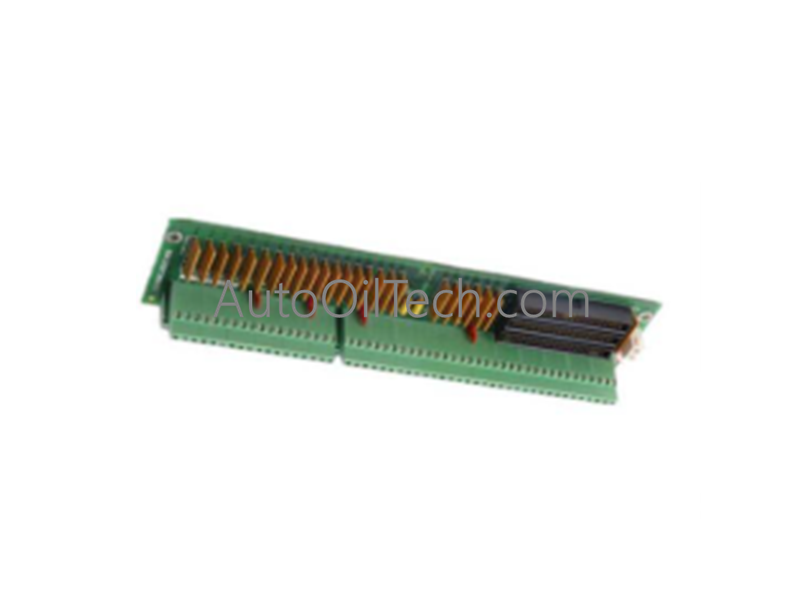

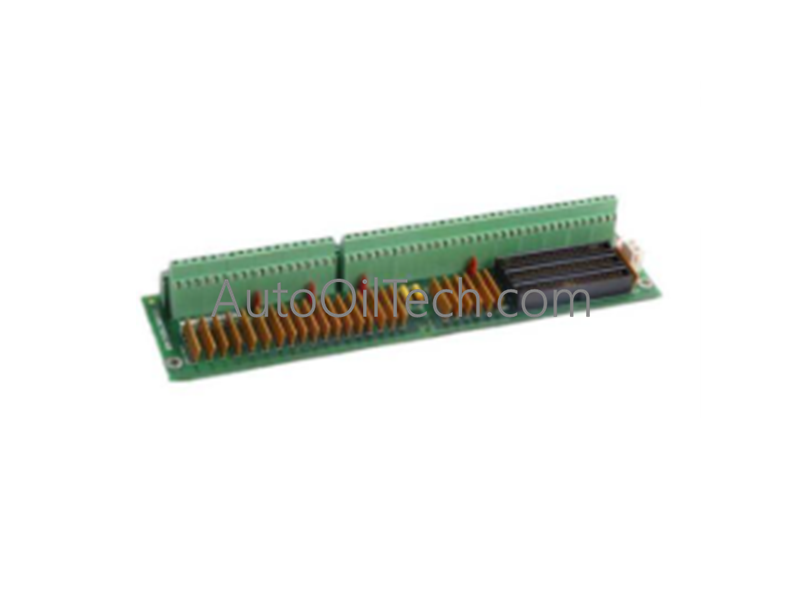

The General Electric DS200TBQBG1A, also cataloged as the DS200TBQBG1A PC Board, operates as a dedicated hardware component for 78-way analog signal termination and routing within Mark V turbine control systems.
Hardware Specifications
Parameter
Specification
Model
DS200TBQBG1A
Brand
General Electric
Origin
USA
Weight
0.33 kg
Dimensions
180 mm x 140 mm x 25 mm
Operating Temp
-20 deg C to +65 deg C
Power Consumption
Passive termination / Loop powered
Profinet and Backplane Communication Velocity
Backplane bus communication velocity licenses and deterministic network protocols ensure high-speed data exchange with core processor modules.
I/O density scaling allows seamless integration of multi-channel 78-way analog signals across Mark V control racks.
Firmware flash compatibility supports updates and configuration management via system engineering tools.
Frequently Asked Questions
Q: What is the primary function of the DS200TBQBG1A in the Mark V system?
A: It acts as an R-S-T analog 78-way terminal board designed to interface field wiring with core control electronics, handling multi-input and output analog signals.
Q: Is this board equipped with active processing components or is it purely passive?
A: It functions primarily as a termination and signal routing board containing 78-way terminal connections, interfacing directly with active I/O processor cards.
Field Installation Guidelines
Mount the board securely within the designated Mark V cabinet enclosure using the provided standoff mounts.
Ensure all field wiring connected to the 78-way terminal blocks is properly stripped, torqued, and labeled to prevent intermittent connections.
Verify proper shielding and grounding of incoming analog signal cables to minimize electrical noise and signal distortion.
