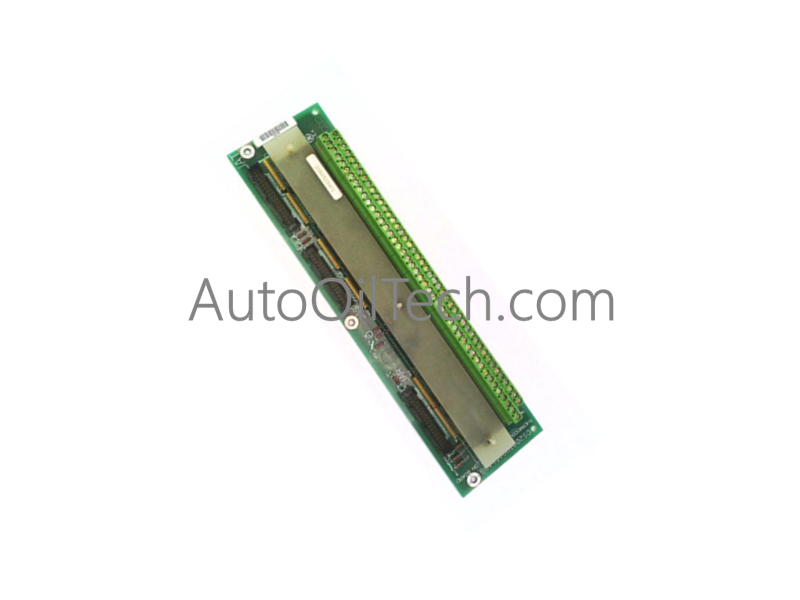

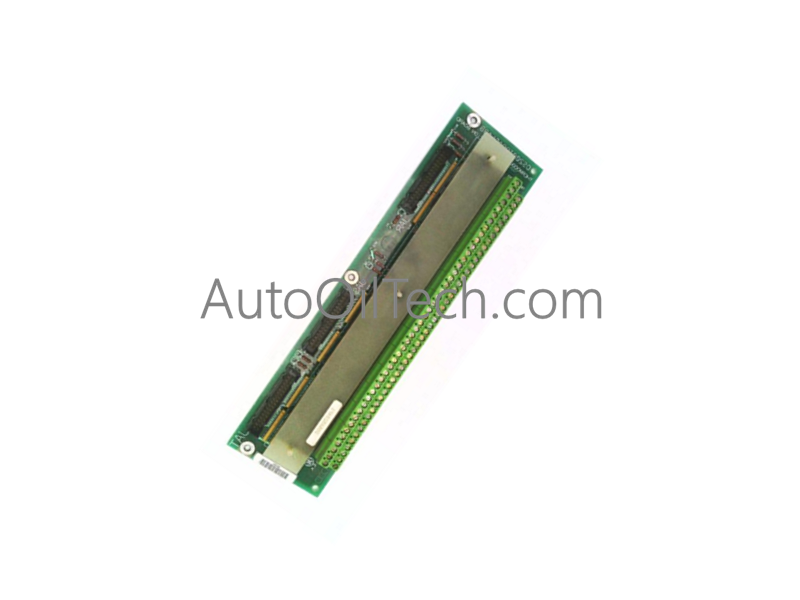

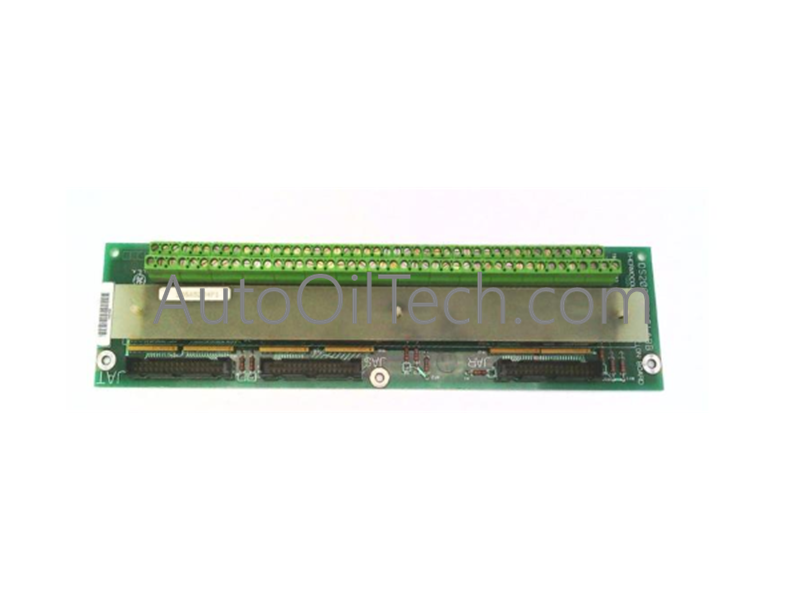

GE DS200TBQAG1ABB Thermocouple Input Terminal Board

The General Electric DS200TBQAG1ABB, also cataloged as the DS200TBQAG1 Termination Board, operates as a dedicated hardware component for thermocouple signal acquisition and field-level terminal management within Mark V Speedtronic turbine control architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control System Characteristics

• Backplane bus communication velocity: The board facilitates high-speed analog signal exchange between field-level thermocouple sensors and the Mark V central processor. This is mandatory for maintaining the timing precision required for turbine thermal monitoring and protective interlocking logic.
• Profinet / EtherNet/IP deterministic networks: The board architecture is engineered to maintain deterministic signal states consistent with the proprietary Speedtronic backplane communication cycles.
• I/O density scaling: The PCB supports high-density thermocouple connectivity, allowing for efficient management of multiple temperature measurement channels within a single rack assembly.
• Firmware flash compatibility: The configuration of the board must be reconciled with the system control software requirements. Verification of the hardware revision and existing system firmware is mandatory to prevent control logic execution errors during integration.

Frequently Asked Questions

Q: Is the DS200TBQAG1ABB compatible with standard thermocouple types?

A: Yes. The board is designed to interface with industrial standard thermocouples. Precise signal linearization and cold junction compensation are managed through the system configuration software associated with the specific Mark V control application.

Q: Can this board be used as a direct substitute for the DS200TBQAG1 base model?

A: The DS200TBQAG1ABB is a revised version of the base model. Substitution is generally supported, but verification of the hardware revision level and existing terminal mapping is mandatory to ensure system compatibility and process safety.

Field Installation Guidelines

• Mounting: Seat the PCB securely within the Mark V control rack. Ensure all edge connectors engage fully with the backplane; incomplete engagement can lead to signal instability or intermittent thermocouple readings in critical thermal loops.
• Grounding: The assembly must be properly bonded to the rack chassis to maintain a stable reference potential. Effective grounding is mandatory to mitigate high-frequency EMI common in turbine enclosure environments and to protect the board from ground loops.
