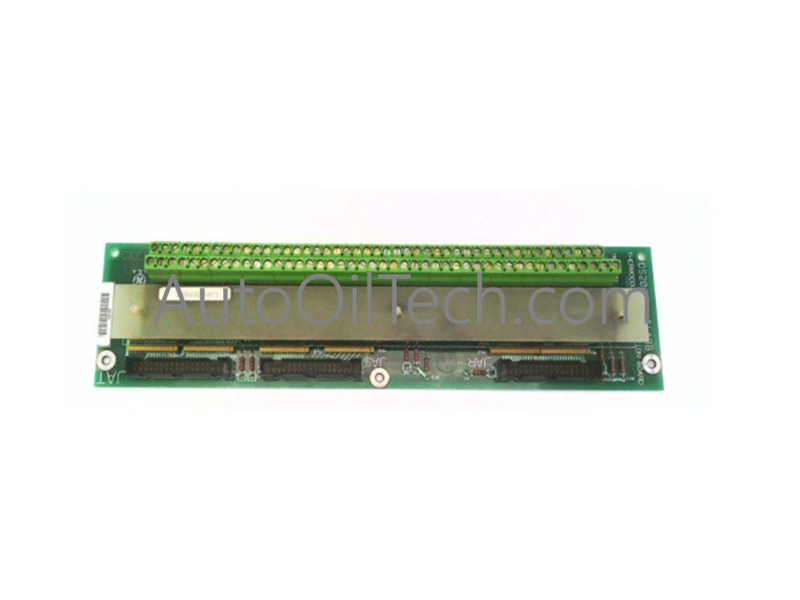

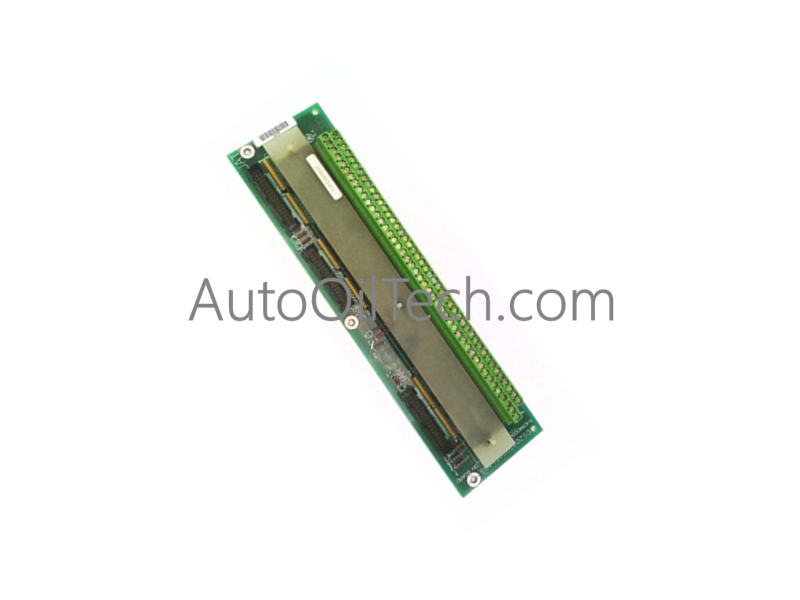

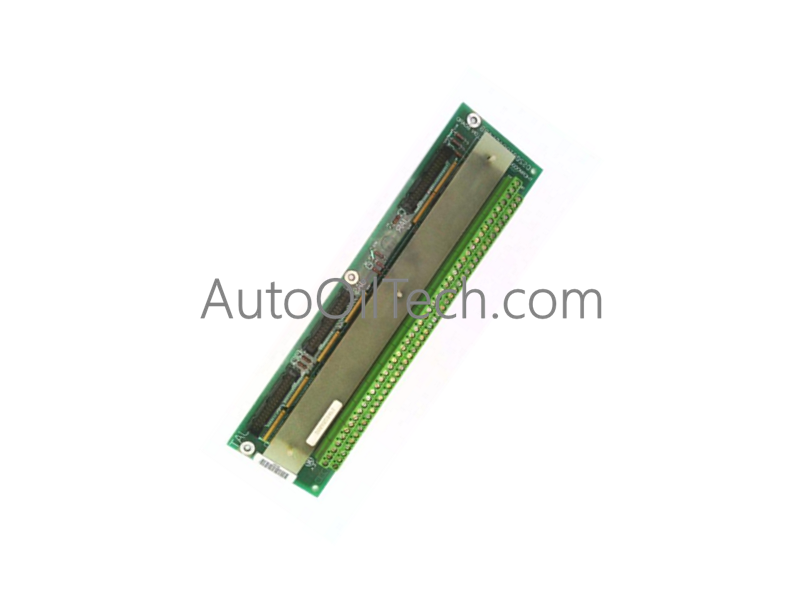

GE DS200STBAG1ACB Basic Drive Terminal Board

Configured for discrete signal management in Mark V Speedtronic turbine control architectures, the General Electric DS200STBAG1ACB (DS200STBAG1 Basic Drive Terminal Board) provides direct physical/electrical execution of I/O termination and backplane signal orchestration.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control System Characteristics

• Backplane bus communication velocity: The board facilitates deterministic signal exchange between external drive sensors and the Mark V central processor. This is mandatory for maintaining the timing precision required for turbine speed and interlocking logic.
• Profinet / EtherNet/IP deterministic networks: The module integrates into the proprietary Speedtronic backplane environment, ensuring signal transitions are synchronized with the overall system scan cycle.
• I/O density scaling: The PCB supports multi-input and output configurations, allowing for efficient management of various sensor and actuator feedback loops within the turbine control cabinet.
• Firmware flash compatibility: Operational parameters must be aligned with system firmware requirements. Verification of the hardware revision and software compatibility is mandatory to prevent control logic execution errors.

Frequently Asked Questions

Q: Is the DS200STBAG1ACB capable of hot-swapping within the drive cabinet?

A: No. Field replacement must be performed with the system in a controlled, de-energized state. Hot-swapping poses a risk of signal transients, which can lead to unintended turbine protective trips or hardware damage.

Q: How does the onboard RAM function within this terminal board?

A: The integrated RAM serves as a localized buffer for signal data, which facilitates faster acquisition and reduces the communication load on the main system processor during high-frequency sampling tasks.

Field Installation Guidelines

• Mounting: Seat the PCB securely within the Mark V control rack or drive cabinet. Ensure all edge connectors are fully engaged with the backplane; poor mechanical seating leads to intermittent backplane communication and unpredictable control behavior.
• Grounding: Secure the board using the factory-specified mounting hardware to ensure a low-impedance connection to the rack chassis. Effective grounding is mandatory to mitigate high-frequency EMI common in turbine enclosure environments.
• Wiring: Connect field-level I/O signals into the designated terminal points. Ensure signal wiring is shielded and segregated from high-power AC lines by a minimum of 150 mm to prevent induced noise on the digital and analog input lines.
