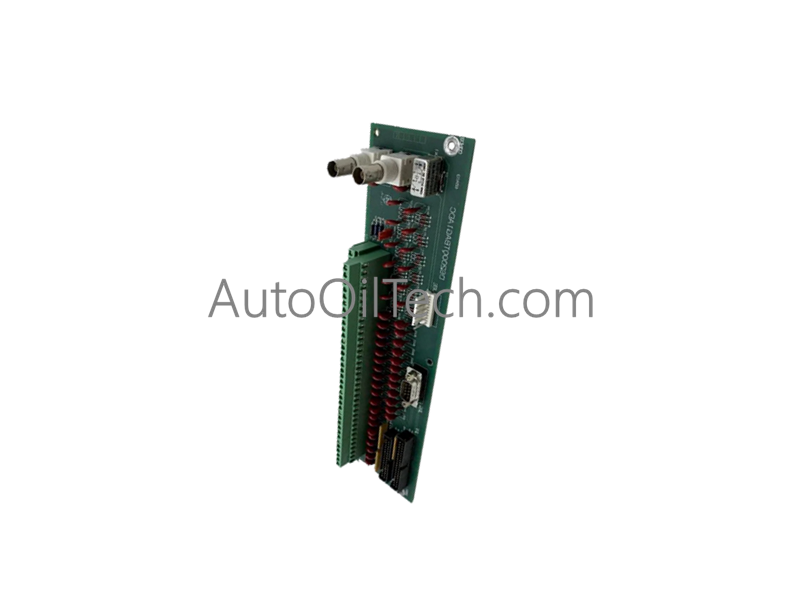

GE DS200QTBAG1ADC Analog I/O Terminal Board

The General Electric DS200QTBAG1ADC, also cataloged as the DS200QTBAG1 Analog I/O Terminal Board, operates as a dedicated hardware component for analog signal termination, field-to-backplane routing, and signal conditioning within Mark V Speedtronic turbine control architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control System Characteristics

• Backplane bus communication velocity: The module facilitates deterministic signal exchange between external analog sensors and the Mark V controller. This is mandatory for maintaining real-time signal loop integrity in regulatory control applications.
• Profinet / EtherNet/IP deterministic networks: The board architecture is optimized for integration into the proprietary Mark V backplane, ensuring that analog I/O data is synchronized with the system scan cycle.
• I/O density scaling: The PCB supports multi-channel signal termination, allowing for efficient management of analog loops within a single control rack assembly.
• Firmware flash compatibility: The configuration of the board must be aligned with system-level software parameters. Verification of hardware revision and existing terminal mapping is mandatory to prevent signal address conflicts during system operation.

Frequently Asked Questions

Q: Can the DS200QTBAG1ADC be used as a drop-in replacement for earlier revision levels?

A: Substitution requires verification of the hardware revision level. Because functional revisions (A, D) alter performance specifications, the specific Mark V control application firmware must be reviewed to ensure compatibility before installation.

Q: Is this board capable of hot-swapping within the control cabinet?

A: No. Field replacement must be performed with the system in a de-energized or controlled state. Hot-swapping poses a risk of signal transients, which can lead to unintended turbine protective trips or hardware damage.

Field Installation Guidelines

• Mounting: Secure the board into the designated Mark V rack slot. Ensure all edge connectors are fully seated into the backplane to maintain reliable signal transmission and avoid intermittent contact failures.
• Grounding: Bond the board chassis to the rack earth bus. A low-impedance connection is mandatory to provide an effective reference for analog signal shielding and to mitigate noise propagation.
• Wiring: Terminate field-level analog signals into the provided terminal blocks using appropriate torque settings. Maintain a minimum separation of 150 mm from high-voltage AC lines to prevent induced electromagnetic interference from degrading analog measurement accuracy.
