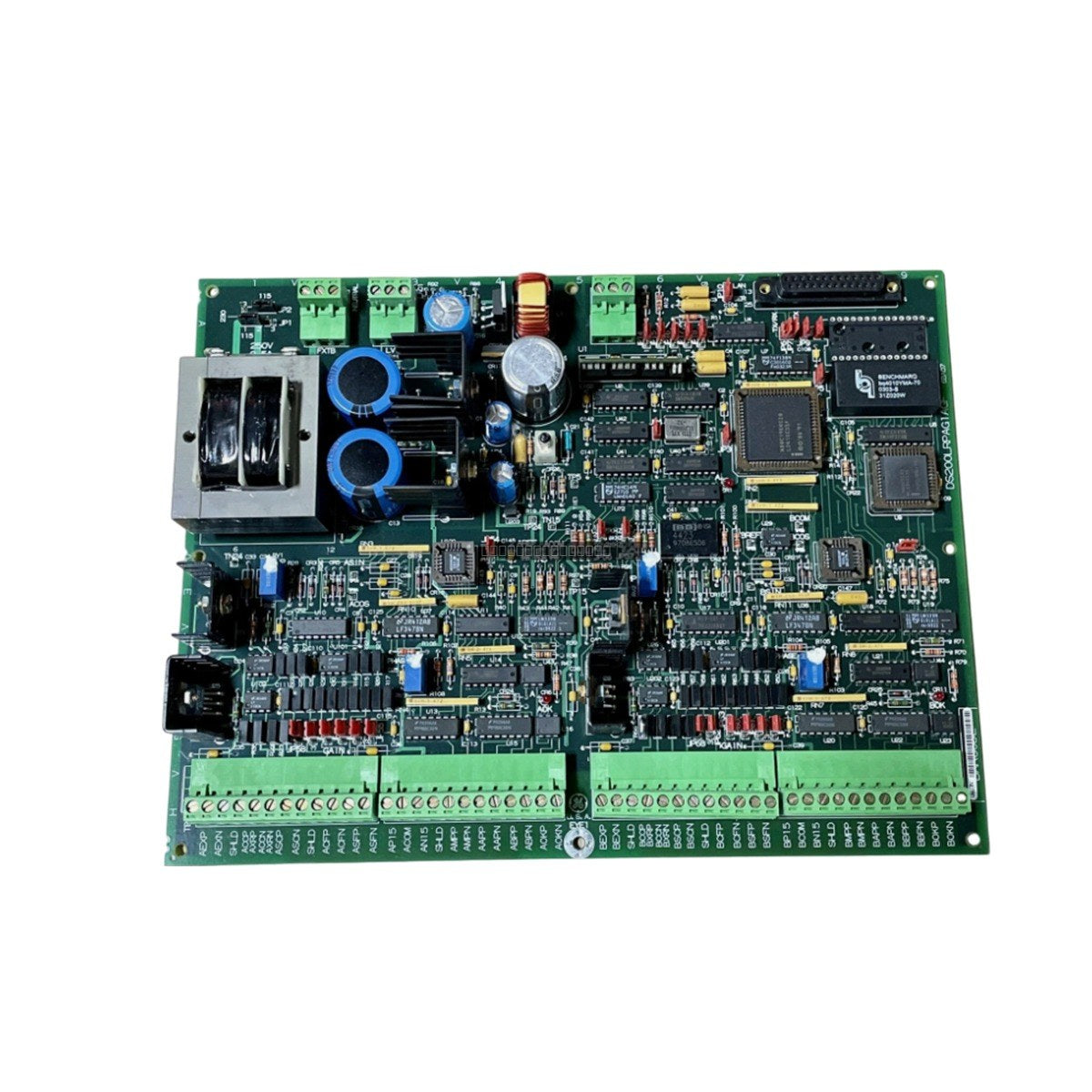

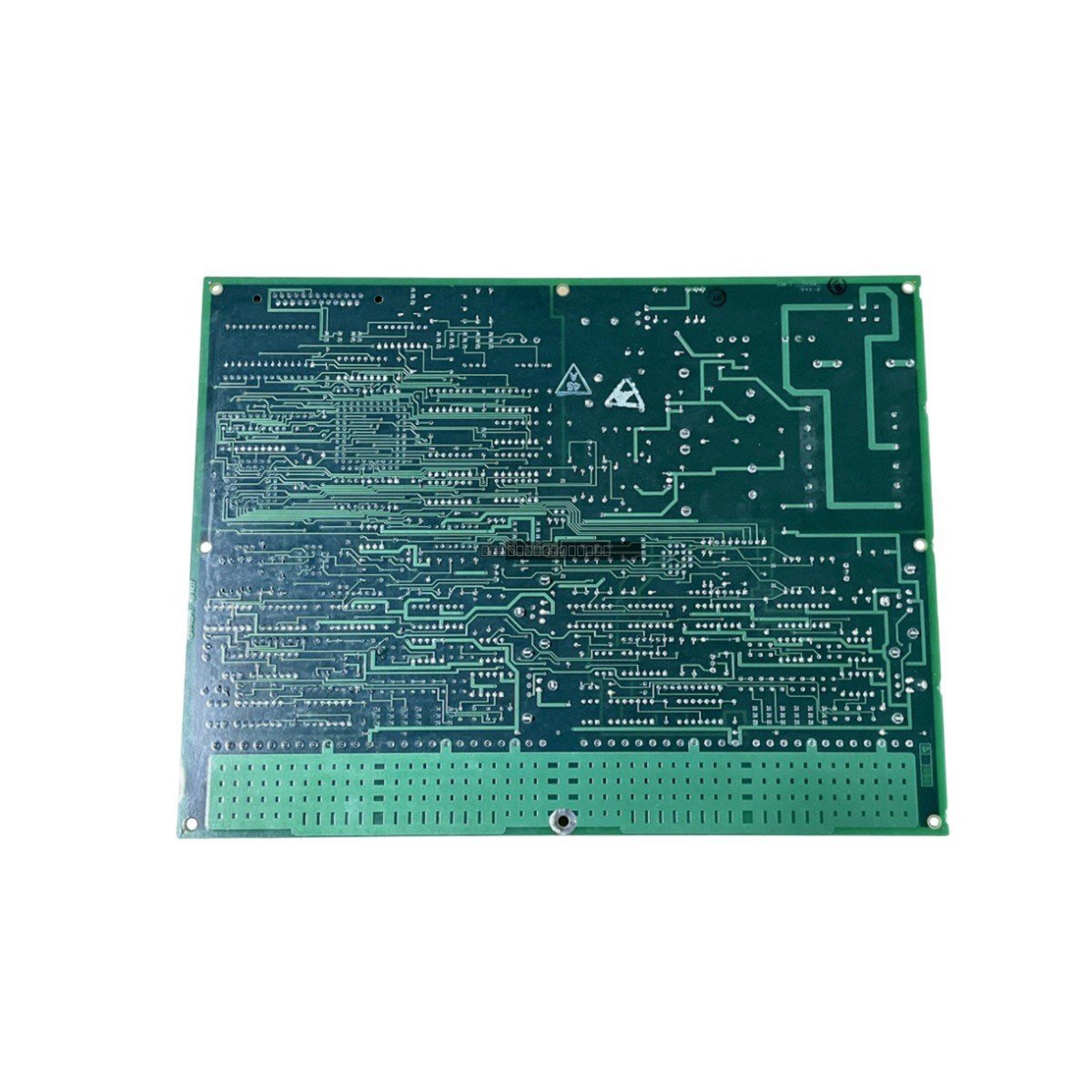

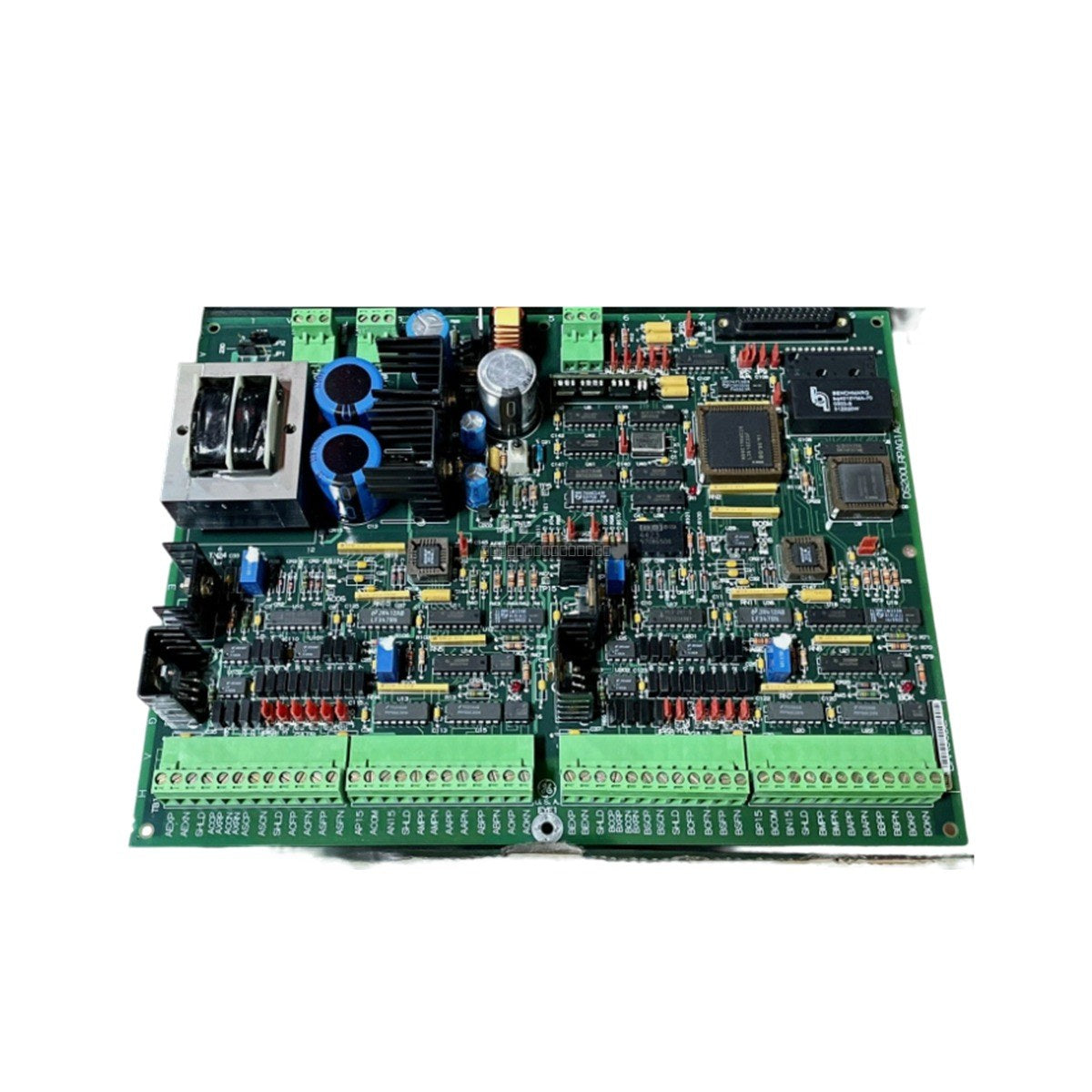

The DS200LRPAG1AGF is a specialized Line Protection Printed Circuit Card engineered for the General Electric Mark V Speedtronic turbine control system and EX2000 excitation interfaces. This LRPA-acronym board provides essential monitoring and circuit protection for gas and steam turbine management infrastructures. Designed to support both Triple Modular Redundant (TMR) and Simplex configurations, it plays a critical role in safeguarding electrical lines within power generation plants and heavy industrial facilities. By maintaining the integrity of the EX2000 interface, this module minimizes system faults and prevents extensive downtime in high-stakes utility operations.
Features
Designed for integration with GE Mark V and EX2000 excitation systems.
Supports both Simplex and TMR (Triple Modular Redundant) system configurations.
Equipped with one onboard reset switch for manual hardware initialization and diagnostic support.
Features standard industrial PCB coating for enhanced environmental protection.
Optimized for high-speed signal processing and reliable line protection logic.
Hardware revision level 3, providing refined signal isolation and improved response times.
Applications
This module is primarily utilized in power generation environments, specifically within gas and steam turbine control systems. It is a critical component for line protection in EX2000 excitation interfaces, ensuring the stability and safety of electrical distribution and management systems in heavy industrial plants.
Technical Specifications
Model
DS200LRPAG1AGF
Brand
General Electric (GE)
Series
Mark V / EX2000
Functional Acronym
LRPA
Module Type
Line Protection Card
Reset Configuration
1 Onboard Switch
Coating
Normal Industrial
Operating Temperature
0 to 60 deg C
Humidity Range
5 to 95 percent non-condensing
Installation Guidelines
Ensure the control system is powered down before installing or removing the circuit card to prevent electrical damage.
Handle the card using proper ESD (Electrostatic Discharge) mitigation techniques, such as wearing a grounded wrist strap.
Ensure the module is fully seated in the designated Mark V rack slot to maintain proper backplane communication.
Verify that the environment meets the specified temperature and humidity ranges to ensure long-term reliability.
Inspect the board for any physical damage or debris before installation.
FAQ
Does this card require firmware updates?
No, the DS200LRPAG1AGF is designed with fixed, stable logic and does not require field firmware updates for operation.
Is this module compatible with TMR systems?
Yes, this card is engineered to support both Simplex and Triple Modular Redundant (TMR) configurations within the Mark V and EX2000 architecture.
