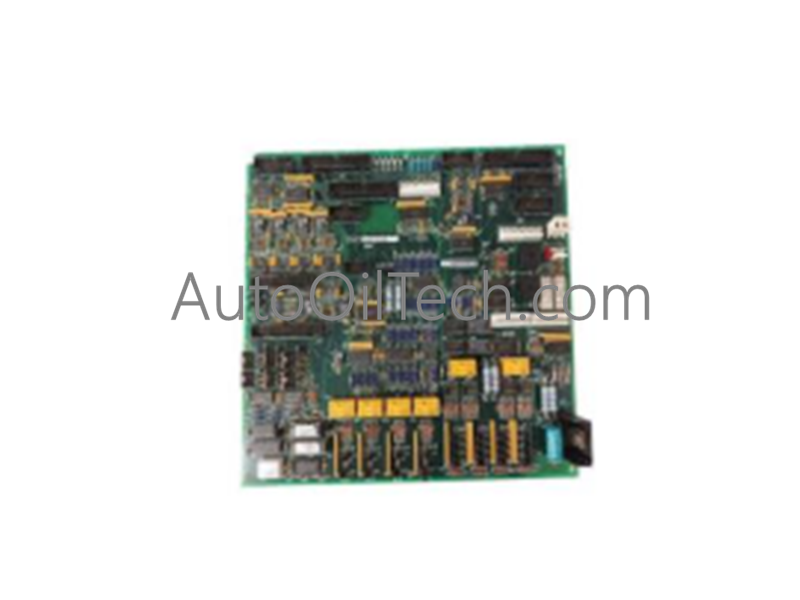

GE DS200LDCCH1AKA Control/LAN Communications Board

Configured for high-speed network integration and motor regulation in Mark V drive architectures, the GE DS200LDCCH1AKA (DS200LDCCH1AKA Drive Control/LAN Communications Board) provides direct physical/electrical execution of multicore processing and LAN interface management.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control and Drive Characteristics

• Backplane bus communication velocity: The board utilizes four dedicated microprocessors (LCP, DCP, MCP, CMP) to manage high-speed data propagation across the Mark V backplane, ensuring deterministic communication latency for motor control loops.
• Profinet / EtherNet/IP deterministic networks: The LAN Control Processor (LCP) serves as the network gateway, converting multi-bus system traffic into processed control signals, maintaining deterministic throughput in high-noise environments.
• I/O density scaling: The integrated design supports complex drive feedback loops including timers and encoders, allowing for consolidated I/O handling on a single board to optimize cabinet architecture.
• Firmware flash compatibility: Onboard flash PROMs and EEPROMs store essential configuration data and field-adjustable parameters, ensuring the board maintains software alignment with the drive’s operating firmware revision.

Frequently Asked Questions

Q: How should a fatal functional fault be cleared on this board?

A: Fatal faults can be cleared using the onboard pushable RESET button. Alternatively, soft resets can be performed by authorized personnel using a Mark V Series Programmer Module or through specific programming alterations.

Q: What is the purpose of the stab connection located on the board?

A: The stab connection is provided to support the mechanical stiffening of the LAN interface board assembly. In high-noise environments, this connection ensures structural rigidity and shielding integrity, reducing vibration-induced signal jitter.

Field Installation Guidelines

• Mounting: Seat the board firmly into the designated Mark V rack slot. Ensure all connectors are properly engaged and that the board is secured to the chassis, utilizing the stab connection if environmental noise levels require additional stiffening.
• Grounding: The conformal coating provides environmental protection but necessitates that all grounding points (mounting screws and chassis bonds) be verified for low-impedance contact. A solid ground path is mandatory to ensure the stability of the onboard voltage limitation components.
• Wiring: Keep LAN communication cables physically separated from motor power and high-voltage excitation lines. Use the alphanumeric keypad and diagnostic LEDs to verify operational status immediately following installation and power-up.
