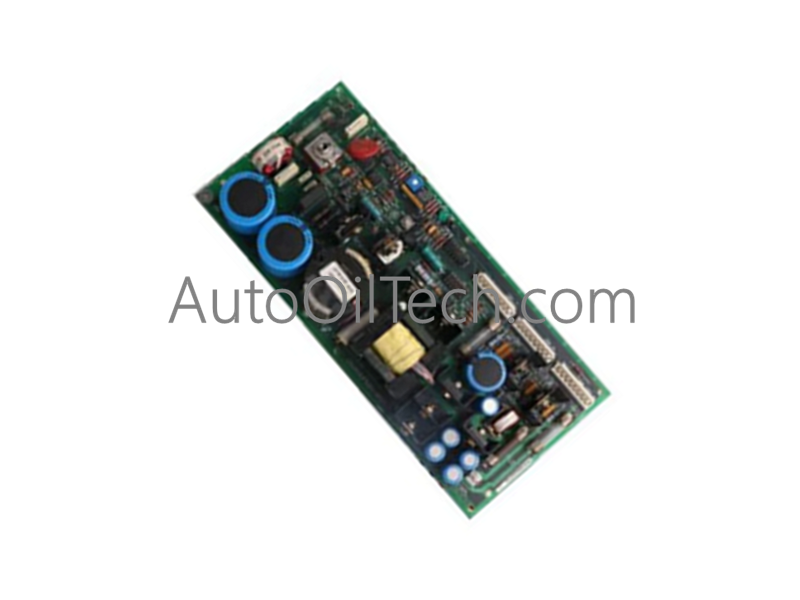

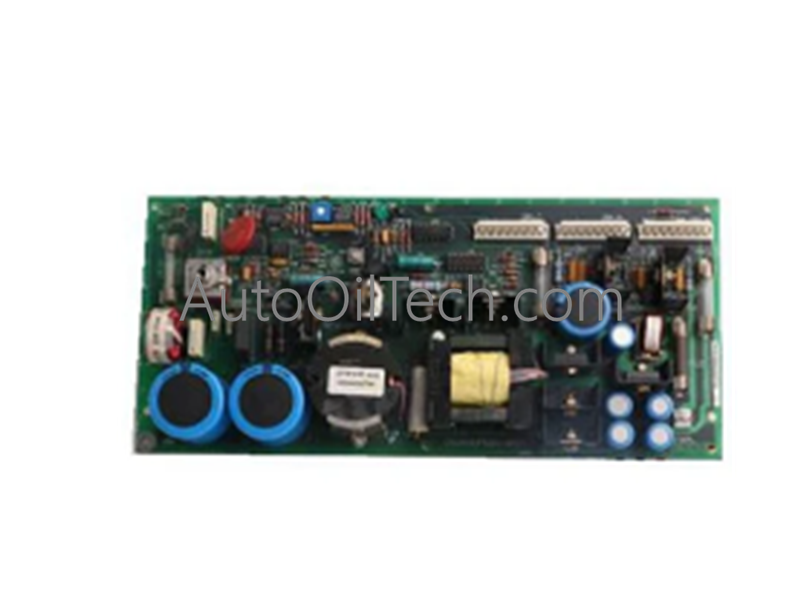

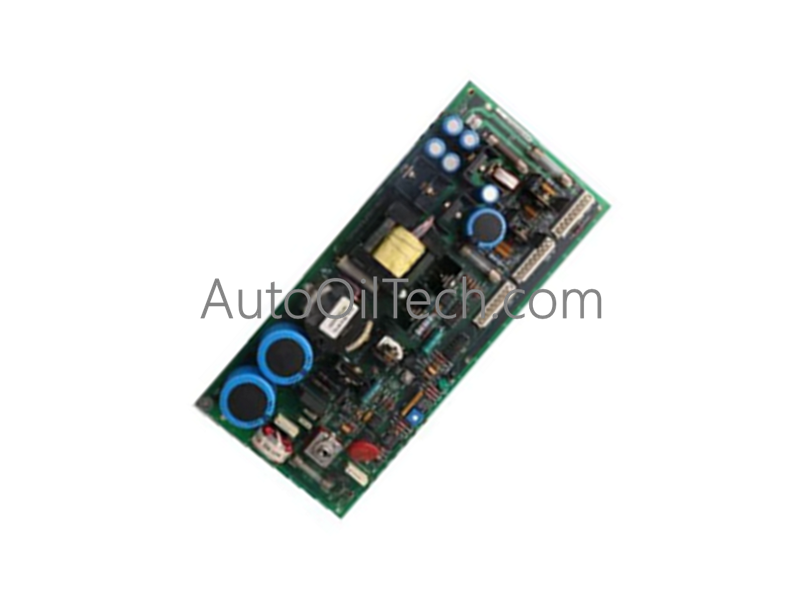

GE DS200LDCCH1AJA Drive Control Boards

The General Electric DS200LDCCH1AJA, also cataloged as the DS200LDCCH1 Drive Control/LAN Communications Board, operates as a dedicated hardware component for drive regulation and LAN communication within Mark V turbine control systems.

Suffix Breakdown & Model Matrix

The DS200LDCCH1AJA identification code provides the following hardware configuration details:

• DS200: Standard Mark V Series assembly type.
• LDCC: Functional product abbreviation (Drive Control/LAN Communications).
• H1: Group One Mark V Series product grouping.
• AJA: Revision history (A-grade functional revision, J-grade secondary functional revision, A-grade artwork configuration).

Hardware Specifications

Industrial Control and Network Execution

• Backplane Bus Communication Velocity: The board manages high-speed internal bus traffic to facilitate drive-level control. Configuration data is stored across six onboard flash PROM modules, while field-adjustable parameters reside in EEPROM, requiring strict alignment with the rack-level I/O configuration software.
• Profinet / EtherNet/IP Deterministic Networks: The board serves as the primary node for LAN-based communication, providing the deterministic data timing necessary for drive and exciter synchronization. It interfaces with external tools via the KPPL connector for onboard diagnostics.
• I/O Density Scaling: The hardware assembly includes complex circuitry—Xilinx programmable logic, resistor networks, and integrated diode arrays—to provide robust signal conditioning and I/O scaling for the drive's peripheral sensors and encoders.

Frequently Asked Questions

Q: How is the DS200LDCCH1AJA reset during operation?

A: The module supports both hardware and software-driven resets. Manual reset can be triggered via onboard switch logic or by applying required DC voltage levels to the dedicated interface pins, while remote resets are executable through programmed software commands.

Q: What is the purpose of the 16-character digital display?

A: The display provides localized alphanumeric feedback for real-time monitoring of drive parameters, diagnostic status codes, and error reporting, reducing the need for external terminal emulation during standard maintenance.

Field Installation Guidelines

• Static Discharge Mitigation: The DS200LDCCH1AJA utilizes sensitive integrated circuits and Xilinx logic chips. Handle the board only by the edges or dedicated standoffs while utilizing a grounded ESD wrist strap to prevent component damage.
• Wiring and Termination: Ensure all vertical pin connectors are seated correctly into the backplane assembly. If daughterboards are attached to the integrated standoffs, verify that the mechanical locking mechanism is secure to prevent signal degradation from vibration.
• Environmental Maintenance: The board is rated for 5% to 95% non-condensing humidity. In environments prone to high humidity, verify that the cabinet environmental control system is functioning correctly to prevent moisture-induced corrosion on the exposed resistor arrays and diode junctions.
