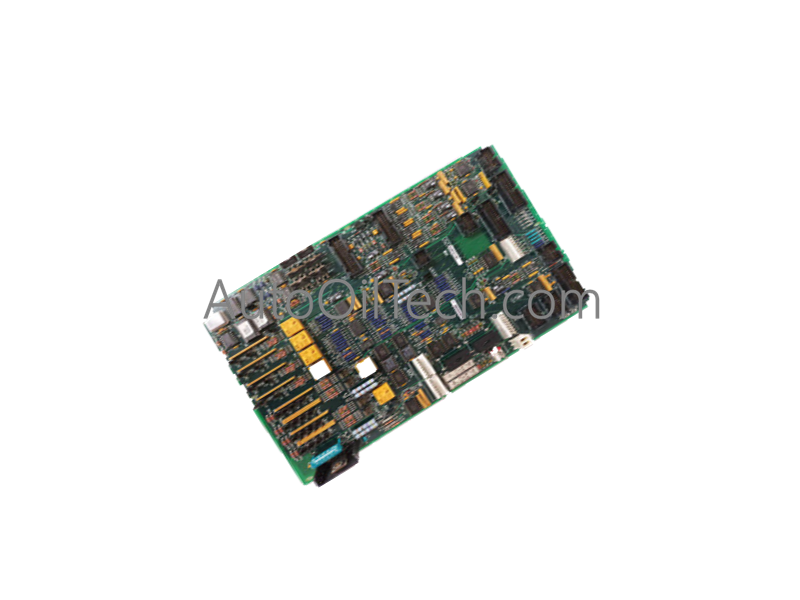

GE DS200LDCCG1AAA Drive Control/LAN Communications Board

The GE DS200LDCCG1AAA, also cataloged as the DS200LDCCG1AAA Drive Control/LAN Communications Board, operates as a dedicated hardware component for multi-processor drive management and network interfacing within EX2000 and DIRECTO-MATIC 2000 control architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control and Drive Characteristics

• Backplane bus communication velocity: The board utilizes a four-processor architecture, with the DCP at U1, MCP at U21, CMP at U35, and LCP at U18, to manage deterministic data throughput across the backplane for motor control and I/O tasks.
• Profinet / EtherNet/IP deterministic networks: The LAN Control Processor (LCP) interfaces with five bus systems, including DLAN+, DLAN, Genius, CPL, and C-bus, ensuring stable network data exchange in high-noise industrial environments.
• I/O density scaling: The integrated circuitry performs A/D and D/A signal translation alongside peripheral counter management, allowing for high-density drive control and regulation logic within the EX2000 cabinet assembly.
• Firmware flash compatibility: Onboard PROM and memory components store configuration data, regulation patterns, and protection parameters required for power conversion module control and assembly-wide communication.

Frequently Asked Questions

Q: How can system diagnostics be accessed on the DS200LDCCG1AAA?

A: Diagnostic information and system settings are accessed via the integrated alphanumeric keypad and 16-character display. This interface allows for real-time monitoring of drive parameters and diagnostic testing.

Q: Is the protective coating on this board compatible with high-humidity environments?

A: The board features a normal protective coating. While sufficient for standard industrial environments, it provides less environmental resistance than conformal-coated variants. Ensure the cabinet environment is controlled to prevent moisture ingress.

Field Installation Guidelines

• Mounting: Seat the board securely into the EX2000 rack slot. Ensure all backplane connectors are fully engaged and mechanical guides are utilized to prevent vibration-induced board flex.
• Grounding: Verify a low-impedance bond between the board’s mounting points and the cabinet's protective earth (PE) bus. This is mandatory for the stability of the high-speed microprocessor circuits and signal reference integrity.
• Wiring: Route signal and communication cables away from high-power drive leads to prevent inductive interference. Use only factory-specified cabling for LAN connections to maintain the signal-to-noise ratio required by the LCP.
