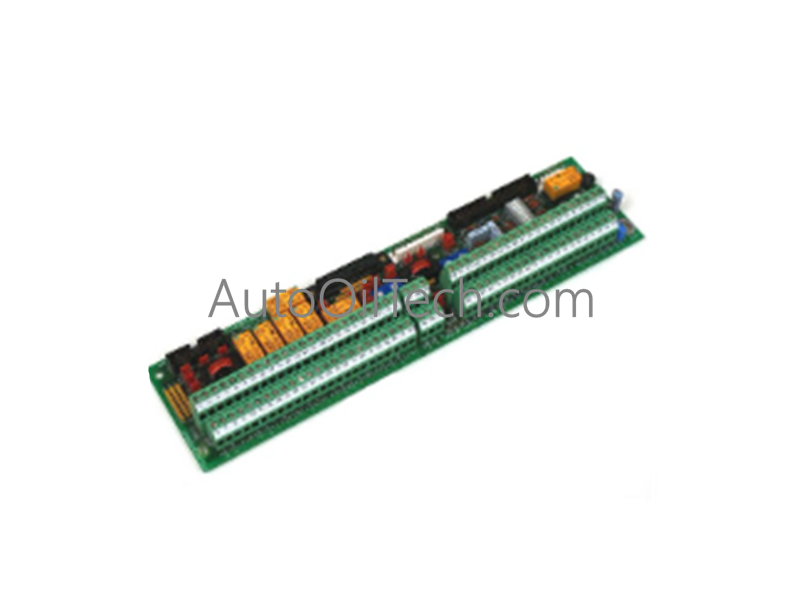

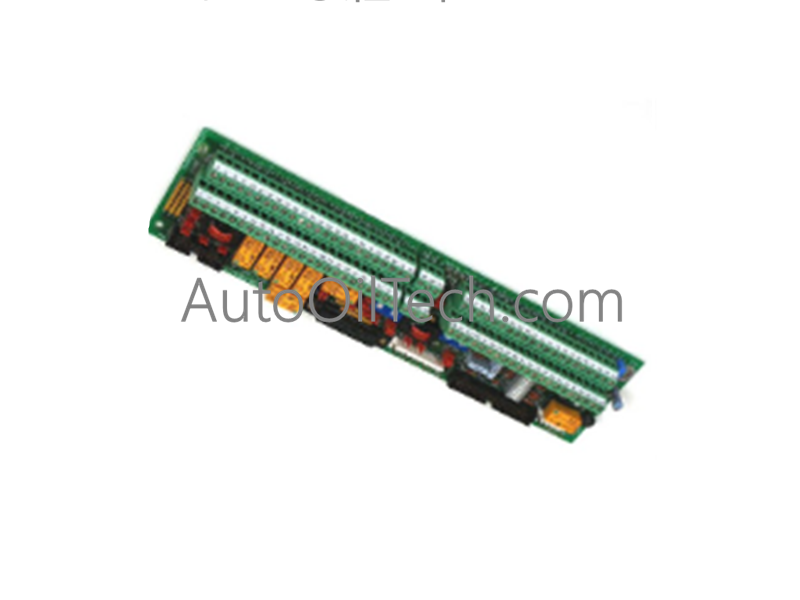

GE DS200FSAAG2ABA PC Amplifier Board

Configured for signal conditioning in Mark V Speedtronic systems, the GE DS200FSAAG2ABA (DS200FSAA PC Amplifier Board) provides direct physical execution of analog signal amplification and interface tasks across automated drive assemblies.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control & Drive Characteristics

• Backplane bus communication velocity: The board interfaces with the Mark V backplane to process high-speed analog signals, maintaining the deterministic data throughput required for turbine drive control.
• Profinet / EtherNet/IP deterministic networks: While utilizing the proprietary Mark V communication architecture, the board is engineered to maintain signal timing accuracy necessary for broader integration within synchronized industrial control networks.
• I/O density scaling: The PCB utilizes a dense layout of operational amplifiers and passive components to achieve high-precision signal conditioning within the constrained space of the turbine control cabinet.
• Firmware flash compatibility: The specific A-B-A revision structure ensures consistent signal processing logic when installed within compatible Mark V controller environments.

Frequently Asked Questions

Q: Does the board require specific configuration settings prior to installation?

A: Yes. Verify any jumper or switch settings against the system documentation for the specific turbine drive application to ensure correct gain and signal polarity configuration.

Q: Is this board susceptible to damage from static electricity?

A: Yes. As with all Mark V series PC boards, utilize ESD-safe handling procedures during transport and installation to prevent damage to the integrated operational amplifiers and sensitive signal paths.

Field Installation Guidelines

• Mounting: Install the board in the designated card rack slot. Ensure the board is fully seated in the backplane connector to guarantee stable signal transmission. Secure the front panel fasteners to maintain chassis ground contact.
• Grounding: Ensure the rack assembly is connected to the cabinet protective earth (PE) bus. A reliable ground reference is required to minimize noise floor and maintain the accuracy of the PC amplifier output.
• Wiring: Route signal cables through the designated cable ducts to minimize crosstalk with high-power AC lines. Ensure all edge connectors are clean and free of oxidation to prevent intermittent signal degradation. Perform a continuity check on signal loops after installation to confirm circuit integrity.
