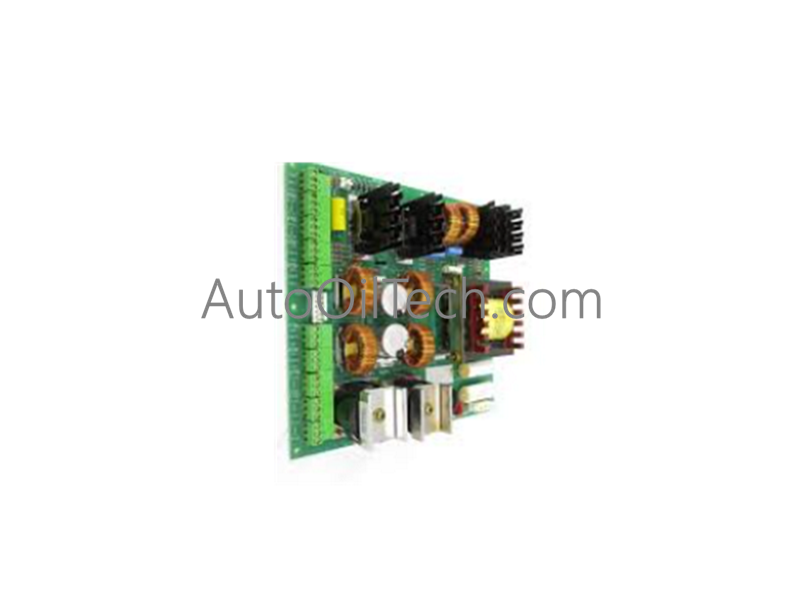

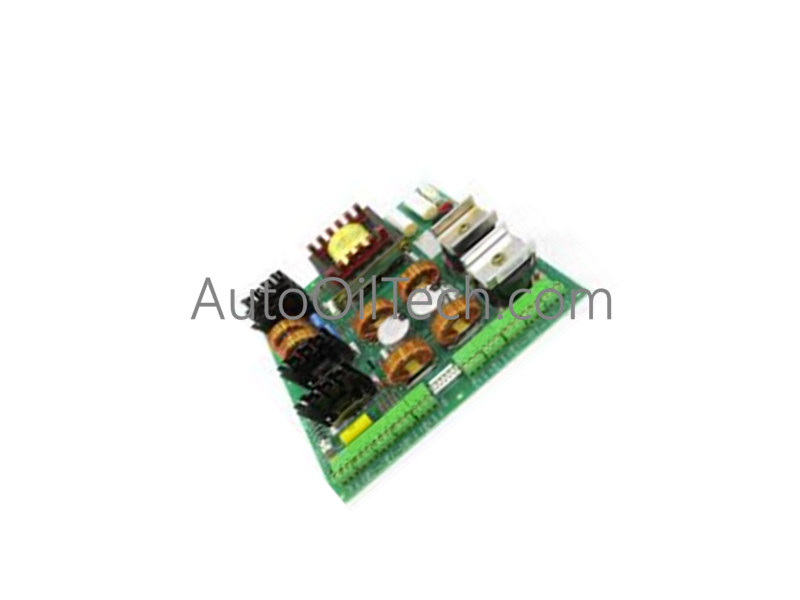

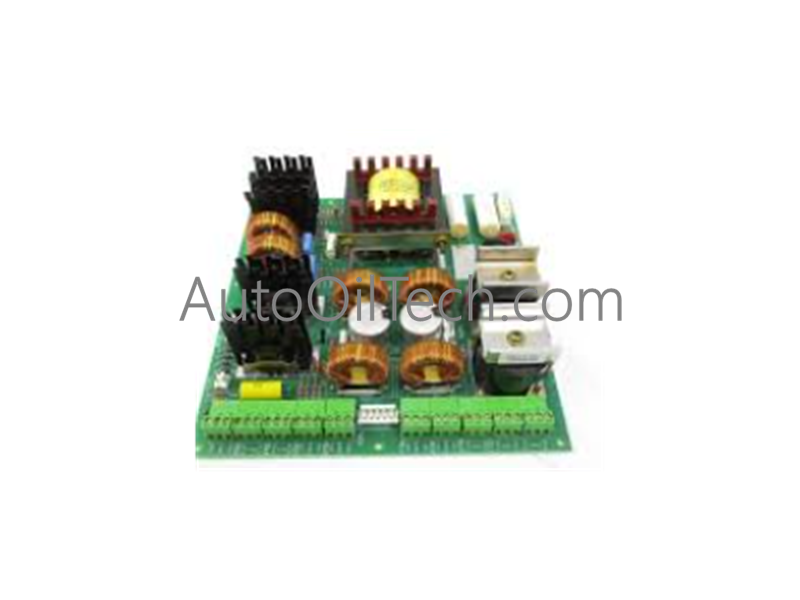

GE DS200EXPSG1ABB Bulk Power Supply Board

The GE DS200EXPSG1ABB, also cataloged as the DS200EXPS Bulk Power Supply Board, operates as a dedicated hardware component for AC and DC input power measurement and current limiting execution within EX2000 excitation and Mark V Speedtronic turbine control networks.

Suffix Breakdown & Model Matrix

• DS200: Standard domestic manufacturing base platform and normal assembly design.
• EXPS: Functional acronym indicating the Bulk Power Supply Board electrical schematic layout.
• G1: Group tag defining the normal style of printed circuit board coating profile.
• ABB: Revision matrix denoting Functional Revision 1A, Functional Revision 2B, and Artwork Revision B track configurations.

Hardware Specifications

Backplane Bus Communication and Drive Diagnostics

• FIRMWARE FLASH COMPATIBILITY: The specific ABB revision block determines internal component location and track distribution. Replacement procedures require matching this artwork footprint to preserve interconnect integrity with host drive control microprocessors.
• I/O DENSITY SCALING: Onboard circuit scaling filters incoming raw utility power and station battery lines, mapping real-time AC and DC voltage levels to terminal outputs for downstream controller observation.
• HARDWARE CONFIGURATION LINK: The manual JP1 jumper assigns physical ground referencing, connecting the center tap of the T1 secondary transformer path straight to chassis frame ground.

Frequently Asked Questions

Q: Does the board support online removal or hot-swap replacement procedures?

A: No. The bulk power supply assembly must be fully isolated. Technicians must verify zero residual potential exists across all backplane and terminal connections prior to hardware extraction to prevent arc flash or component breakdown.

Q: Under what specific operating condition is the current limiting circuit active?

A: The current limiting function executes automatically when the power supply board is energized via the external station battery circuit, protecting internal traces from inrush current transients.

Field Installation Guidelines

• Electrostatic and Isolation Protection: Personnel must wear static-proof clothing and grounded ESD wrist straps before handling the board. Isolate all upstream AC and DC feeder breakers prior to maintenance.
• Chassis Grounding and Mounting: Secure the board using the four factory-drilled mounting holes. Ensure complete mechanical connection to the cabinet standoffs to maintain low-impedance grounding continuity.
• Cable Routing and Pin Alignment: Carefully route cables away from high-temperature components. Reconnect the DCPL, 3GDPL, and 4GDPL plug bundles into their designated keyed terminal headers, verifying zero pin misalignment.
