- GE D25-0158-000003 Substation Controller
Sale

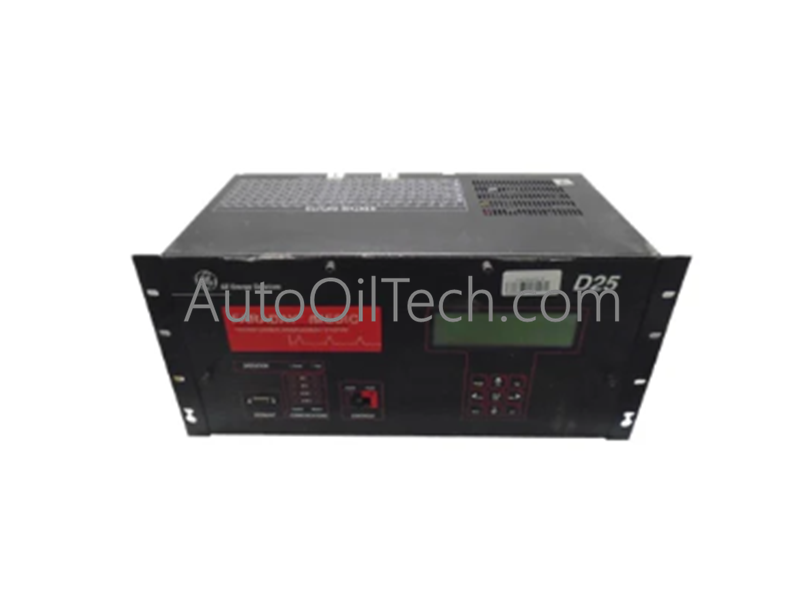

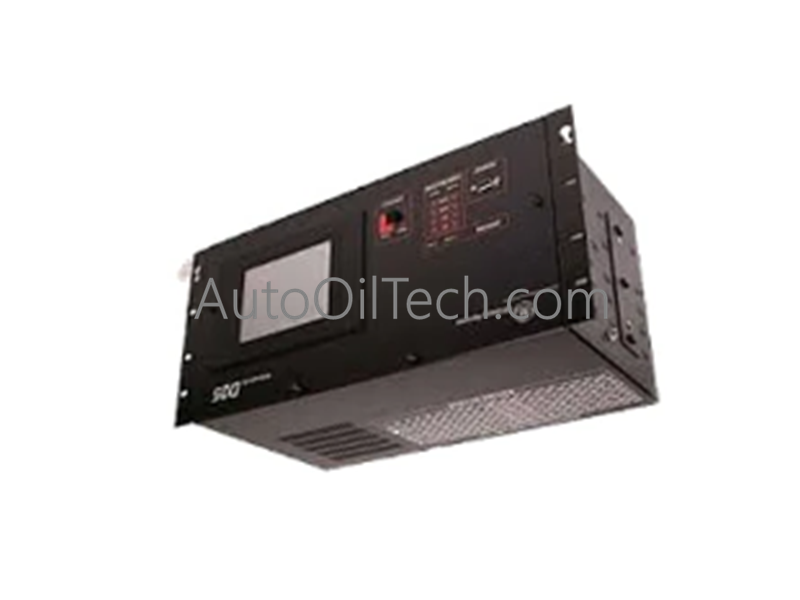

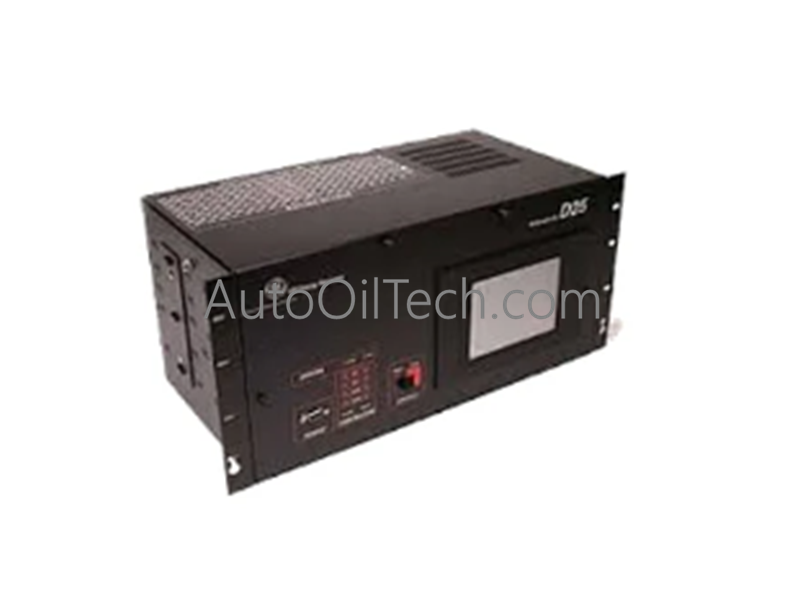

GE D25-0158-000003 Substation Controller
No reviews
In stock!
- Part Number: D25-0158-000003
- Brand: General Electric
- Type: Substation Controller
- Dimensions: 4x18.5x12.7cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The GE Fanuc D25-0158-000003, also cataloged as the D25-0158-000003 Substation Controller, serves as the primary D25 automation and telemetry node utilized to execute physical AC waveform digitizing, transformer monitoring, and multi-protocol data concentration across utility grids. It processes analog electrical vectors natively at the terminal tier to transmit synchronized field parameters parallel to master control network platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | D25-0158-000003 |
| Brand | GE Fanuc / GE Harris |
| Origin | United States / Canada |
| Weight | Standard multi-slot rack chassis installation parameters |
| Dimensions | 19-inch rackmount hardware profile matching classic D25 enclosures |
| Operating Temp | Calibrated for utility-grade substation environmental windows |
| Power Consumption | Driven by internal multi-rail backplane transformation segments |
| AC Analog Inputs | 15 channels arranged in 5 transformer-isolated groups of 3 |
| Waveform Sampling Rate | 64 samples per Power Line Cycle (PLC) |
| Analog-to-Digital (A/D) | 13 bits plus sign bit resolution |
| Nominal PT Settings | 63.5 Vrms, 69.3 Vrms, 110 Vrms, 120 Vrms, 220 Vrms options |
| Voltage Measurement Range | 0% to 250% of selected nominal rating |
| Overload Tolerances | 250% of nominal continuous; 350% of nominal for 60 seconds |
| Voltage Circuit Burden | Less than 0.1 VA at designated nominal input |
| Measurement Accuracy | Voltage: ±0.5% of nominal; Frequency: ±0.01 Hz; Phase Angle: ±0.5 deg |
Industrial Control & Drive Integration
- Backplane Bus Communication Velocity Licences and Processing Logic: Onboard math engines convert the 64 samples-per-cycle data streams into true RMS voltage, frequency, and phase angle metrics. Because this continuous AC digitization executes inside isolated processing registers, executing deep wave calculations does not limit the backplane bus communication velocity properties assigned to adjacent serial or telemetry modules.
- Profinet / EtherNet/IP Deterministic Networks Mapping: Calculated RMS tables, frequency registers, and phase vectors are compiled directly into internal memory blocks. These points map onto active Profinet / EtherNet/IP deterministic networks or upstream DNP3/Modbus architectures via the 10/100TX, 10FL, or 100FX Ethernet options, keeping SCADA hosts updated without transmission lag.
- I/O Density Scaling and Multi-Port Layout Flexibility: Managing 15 isolated AC analog inputs, up to six 3-phase circuits, and multiple communication lines (WESMAINT II+, RS-485 display, and UTC time links) increases local space efficiency. This configuration expands overall I/O density scaling capabilities inside panel alignments, acting as a standalone data hub without needing extra external transducers.
