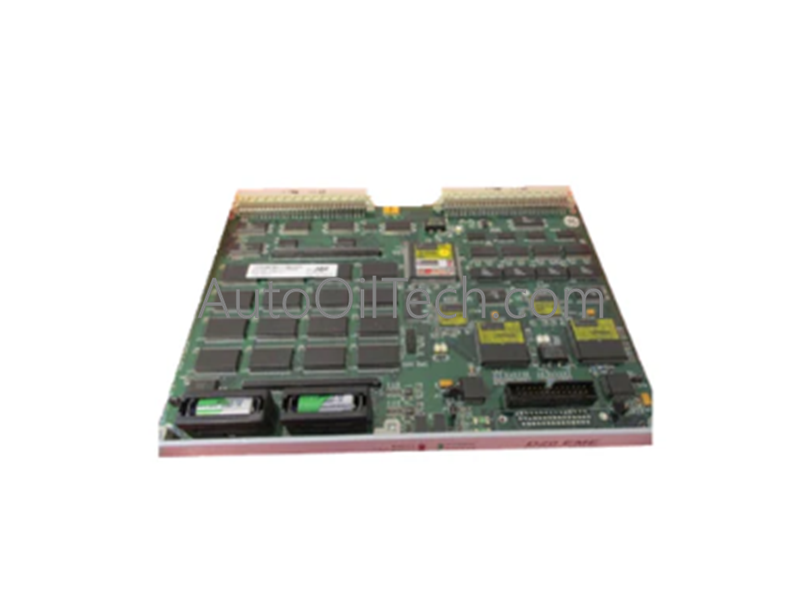

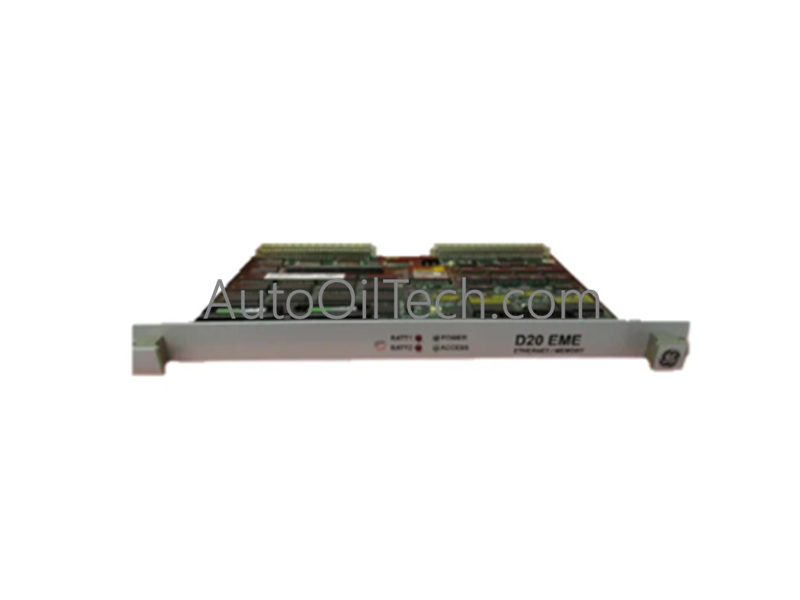

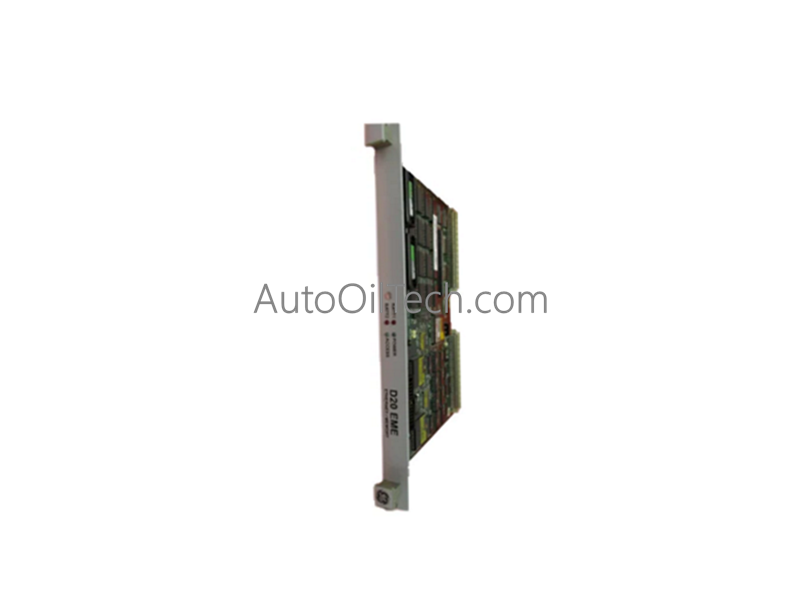

GE D20EME Communication and Memory Enhancement Module

The GE D20EME, also cataloged as the D20EME Communication and Memory Enhancement Module, serves as the primary D20 network sub-assembly utilized to execute processing bandwidth expansion and telemetry buffering across D20 RTU platforms. It handles multi-channel packet processing natively at the node tier to optimize database transfers parallel to master control network platforms.

Hardware Specifications

Industrial Control & Drive Integration

• Backplane Bus Communication Velocity Licences and Processing Logic: Onboard communications coprocessors manage protocol conversion and message queuing across the 7 serial lanes concurrently. Because HDLC packet processing and media access control execute inside independent hardware registers, high-volume serial polling does not limit the backplane bus communication velocity attributes assigned to adjacent master CPU modules.
• Profunet / EtherNet/IP Deterministic Networks Mapping: Local tracking metrics, data buffers, and port activity counters are held inside the battery-backed SRAM. These variables map directly to supervisory Profinet / EtherNet/IP deterministic networks or standard DNP3/Modbus host lines via the 10Base-T or fiber-optic 10Base-FL physical ports, updating master SCADA architectures without signal conversion delays.
• I/O Density Scaling and Communication Assembly Layout: Concentrating 7 serial lines, dual HDLC ports, and 3 distinct Ethernet media interfaces inside a standard 19-inch rack module improves space parameters inside central automation frames. This distribution layout increases local I/O density scaling options, allowing the sub-assembly to act as a centralized data hub for downstream IED clusters without needing multiple standalone converter cards.

Frequently Asked Questions

Q: What technical tracking behavior manifests if the module loses primary system supply power while holding active event data logs?

A: The onboard battery backup sub-circuits engage instantly to protect the memory matrix. The system isolates the 8 MB or 16 MB SRAM array from the dropping voltage lines, preserving all stored telemetry records and diagnostic event queues for extended durations until main power recovers.

Q: Can the physical media interfaces (10Base-T/2/FL) be safely disconnected or hot-swapped while the module is processing active HDLC data frames?

A: While disconnecting individual external communication lines will not cause physical component failure, pulling the transceiver links under load drops active network sessions immediately. This action triggers data retransmission faults across the D.20 link and forces the master CPU to flag a channel failure alarm in its diagnostic registry.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Isolate all incoming primary AC or DC power lines, tag out adjacent terminal link switches, and verify that an anti-static electrostatic discharge (ESD) wrist strap is bonded to an earth ground prior to installation. Align the 19-inch chassis ears with the rack holes, verify that rear clearance matches the 8.1-inch depth constraints to allow proper bending radius for fiber-optic cables, and tighten all panel screws to ensure stable mechanical seating against local panel vibration.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all low-potential RS-232/RS-485 serial cables and HDLC runs inside separate, grounded wireways isolated from heavy power distribution feeds or motor variable frequency drive lines to prevent electromagnetic cross-talk. Terminate all shielded communication cable braids directly at the panel enclosure's main copper earth bar, maintaining uniform low-impedance grounding paths to satisfy EN 61000-6-2 immunity metrics.
